Specifications
Model Number :
YLM-GG-144DL/DF
MOQ :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, T/T
Supply Ability :
5000 unit per month
Delivery Time :
7-15working days
Packaging Details :
Wooden
Brand Name :
KVOU
Certification :
CE, IEC 61215, IEC 61730, CE, ISO 9001: 2015, ISO 14001: 2015, BS OHSAS 18001: 2007
Place of Origin :
China
Price :
Negotiable
Specification :
430W
system voltage :
1500Vdc
Batteries (type/quantity) :
Single crystal P type / 6 × 24
Operating temperature :
-40°C - 85°C
Peak power voltage :
40.72 V
Peak power current :
10.56 A
Open circuit voltage :
48.80 V
Short circuit current :
11.18 A
Description

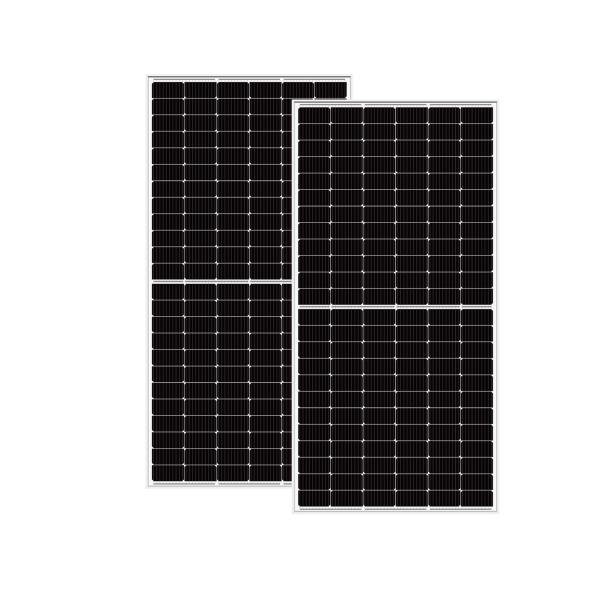

High Efficiency 430W Double Glass Mono Crystalline Solar Panel For Solar System

With high-quality materials and double-glass structure, YLM-GG modules are perfectly applied Tested in harsh environments, to provide you with high reliable quality.

1.Double-sided power generation
The YLM GG modules has double-sided power generation characteristics, and the back side can effectively use the reflected light and scattered light in the environment Photoelectric power generation.

2. Battery mass production efficiency
Compared with ordinary single-sided solar panel modules, the mass production efficiency of YLM GG modules is 20% higher.

3. Product Warranty
YLM GG 30-year linear warranty, 22.39% more power gain than 25-year linear warranty.

Component Specifications

144DL (144片,Single crystal-double glass P type,frameless):YLxxxDL72 1/2 (xxx=Pmax)

144DF (144片,Single crystal-double glass P type,framed):YLxxxDF72 1/2 (xxx=Pmax)

430W Double Glass Monocrystalline Solar Panel High Efficiency For Solar System

Electrical performance parameters under standard test conditions ( STC )
Peak power Pmax W 430
Peak power voltage Vmax V 40.72
Peak power current I max A 10.56
Open circuit voltage Voc V 48.80
Short circuit current I sc A 11.18
Power tolerance ΔPmax W 0 / + 5
Module efficiency@144DL HPmax % 19.96
Module efficiency@144DF ŋPmax % 19.78
Electrical performance parameters at nominal operating temperature ( NMOT )
Peak power Pmax W 327.15
Peak power voltage Vmax V 38.83
Peak power current I max A 8.42
Open circuit voltage Voc V 46.28
Short circuit current I sc A 8.99
Dual-sided output power (back side power gain)
Peak power (power gain 10% ) Pmax10 W 473
Peak power (power gain 15% ) Pmax15 W 495
Peak power (power gain 25% ) Pmax25 W 538
Electro-referencing characteristics
Double-sided coefficient φ % 70±5 Temperature coefficient of short-circuit current αIsc % / °C 0.04
Nominal operating temperature NMOT °C 39±2 Open circuit voltage temperature coefficient βVoc % / °C --0.30
Tolerances for peak power, open circuit voltage and short circuit current % ±3 Temperature coefficient of peak power γPmax % / °C --0.35
STC:irradiance 1000W·m-2,battery temperature 25°C,atmospheric quality AM1 .5,according to EN 60904-3.
NMOT:at irradiance 800W·m-2,ambient temperature 20℃,wind speed1m ·s-1,operating temperature of the module at the maximum power point.
Operating conditions Materials
Maximum system voltage 1500V Batteries (type / quantity) Monocrystalline P-type / 6 × 24
Maximum fuse rating* 20A Glass (material / thickness) Low iron semi-tempered glass / 2.0mm
Operating temperature -40°C to 85°C Frame ( 144DL / 144DF ) None / Anodised aluminium alloy
Hail impact (diameter / speed) 25mm / 23m·s-1 Junction box (type / protection class) Separate / ≥ IP67
Positive snow load ( 144DL / 144DF ) 3000Pa / 5400Pa Cable (length / cross-sectional area of conductor) 300mm ,Customized / 4mm2
Wind load on the back ( 144DL / 144DF ) 2400Pa / 2400Pa Connectors (type / protection class) Matching junction box / IP67
* Do not connect two or more strings of components in parallel in the same busbar fuse.
Packaging instructions
Component size (L/W/H) 2088mm/ 1032mm/ 5mm Component size (L/W/H) 2094mm/ 1038mm/ 30mm
Component weight 25.7kg Component weight 27.5kg
Number of components per pallet 32pcs Number of components per pallet 36pcs
Transport (semi-trailer / flatbed) * 22sets /30sets Transport (semi-trailer / flatbed) * 22sets /32sets
Box dimensions (L/W/H) 2210mm / 1125mm / 1215mm Box dimensions (L/W/H) 2110mm / 1110mm / 1190mm
Weight per pallet 898kg Weight per pallet 1036kg
*Specifically calculated by the logistics company and for reference only. It is forbidden to transport a lorry in excess of its maximum load capacity.

RFQ
Q:Can I have a sample order?
A:Yes, we welcome sample order to test and check quality.
Q:What about the lead time?
A:Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q:How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status, photo you the done order and let you know the forwarder picked it up.
