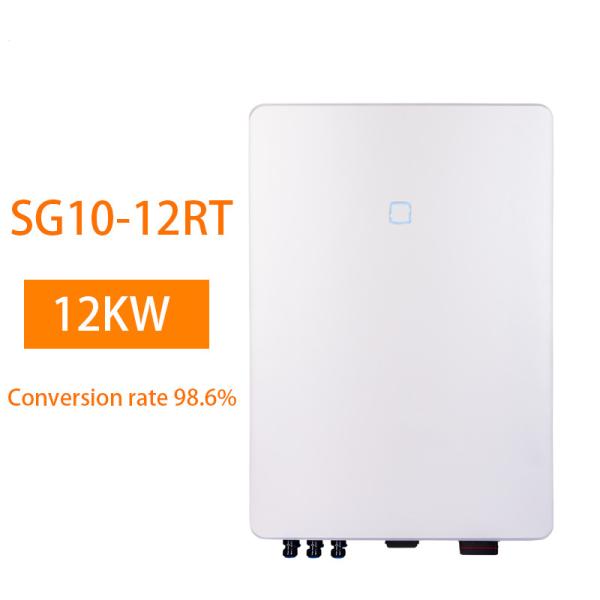

Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller
Specifications
Brand Name :
KVOU
Model Number :
SG10/12/15/17/20RT-20
Certification :
CE,UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A
Supply Ability :
5000 unit per month
Delivery Time :
7-15working days
Packaging Details :
Wooden case and Carton case
Output Voltage :
3/N/PE,220/400V
Output Frequency :
50/60Hz
Size :
370*480*195 mm
Inverter Efficiency: :
98.6%
Warranty :
5 Years
Input Voltage :
600V
Weight :
17KG
Type :
DC/AC Inverters
Description

Hybrid Inverter 12KW Solar Kit System On-Grid Off-Grid System

High yield
Industry-leading 98.4% efficiency Flexible PV string configuration up to 1.3 high DCIAC ratio

Intelligent management
· Firmware updates and new monitoring features · Feature-rich online monitoring via app or web · Energy flow via Sungrowsmart meter

Safe and reliable
Built-in surge arrester and RCDC cutting-edge technology ensure long life C5 high anti-corrosion grade

Easy installation
Unique push-in connector saves installation time Mounting plate with built-in level for quick and easy commissioning via app or LCD display

Pure Sine Wave Inverter

* Built-in MPPT solar charge controller

* Selectable input voltage range for household appliances

* The charging current can be selected according to the application

* Configurable AC/Solar input priority via LCD settings

* Compatible with mains voltage or generator power

* Automatic restart when AC is restored

* Overload and short circuit protection

* Battery balancing optimizes battery performance and life cycle

* Cold start function

* Parallel operation up to 9 units is only available for 5KVA models

Specification
Model Name
SG10RT-20
SG12RT-20
SG15RT-20
SG17RT-20
Input DC
Max. input voltage
1100V
Start-up voltage
180V
Rated input voltage
600V
MPPT voltage range
160-1000V
Max. current for input connector
25A
25A
37.5A
50A
Max. short circuit current
32A
32A
48A
64A
Output DC
Rated out power
10000W
12000W
15000W
17000W
Max.apparent output power
11000VA
13200VA
16500VA
18700VA
Max. AC output current
16.7A
20A
25A
28.3A
Rated grid voltage
3/N/PE,220/400V
AC voltage range
270-480V
Rated grid frequency
50/60Hz
THDi
<3% (of nominal power)
DC current injection
<0.5%(of nominal current)
Power Factor
>99%(0.8 leading-0.8 lagging)
Efficiency
Max. efficiency
98.5%
98.5%
98.6%
98.6%
Max. European efficiency
98.1 %
98.1%
98.1%
98.2%
Protection
PV reverse connection protection
Yes
AC short circuit protection
Yes
Leakage current protection
Yes
Grid monitoring
Yes
PV string current monitoring
Yes
DC switch
Yes
Overvoltage protection
DC TypeII/AC Type II
General Data
Dimensions (W*H*D)
370*480*195 mm
Weight
17kg
17kg
17kg
15.5kg
Topology
Transformerless
Self consumption
<1W (night)
Operating ambient temperature range
-25 ~ +60°C
Relative humidity
0-100%
Ingress protection
IP65
Max. operation altitude
4000m
Grid connection standard
VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, UNE 206006, UNE 206007-1, IEC
61727
Safety/EMC standard
IEC 62109-1/-2, IEC 62116, EN 61000-6-1/-2/-3/-4
Communication
WIFI/ Ethernet (optional)
DC connection
MC4 (Max. 6 mm²)
AC connection
Plug and play connector (max. 6 mm² )
Display
LED
Compliance
Active & reactive power control, power ramp rate control
Solar On Off Grid Hybrid Inverter 12KW MPPT Solar Charge Controller

FQA:

1.What does a solar inverter do?
An inverter is one of the most important pieces of equipment in a solar energy system. It's a device that converts direct current (DC) electricity, which is what a solar panel generates, to alternating current (AC) electricity, which the electrical grid uses.

2.Do I need a battery with a solar inverter?
Yes, if you are connected to an electrical grid, you can use solar panels and inverters without battery storage. However, it's important to note that grid-tied solar systems are usually shutoff during power outages to prevent the backflow of electricity from harming utility workers.

3.Can I connect solar panel directly to battery?
It's important to understand the following: Don't connect a solar panel directly to a battery. Doing so can damage the battery. Instead, connect both battery and solar panel to a solar charge controller.

4.Which size inverter is best for home?
between 756-1000 W
Ideally, inverters between 756-1000 W are best suited for homes. There are several other types of inverters based on capacity as well. You need to choose the best for your requirements.
