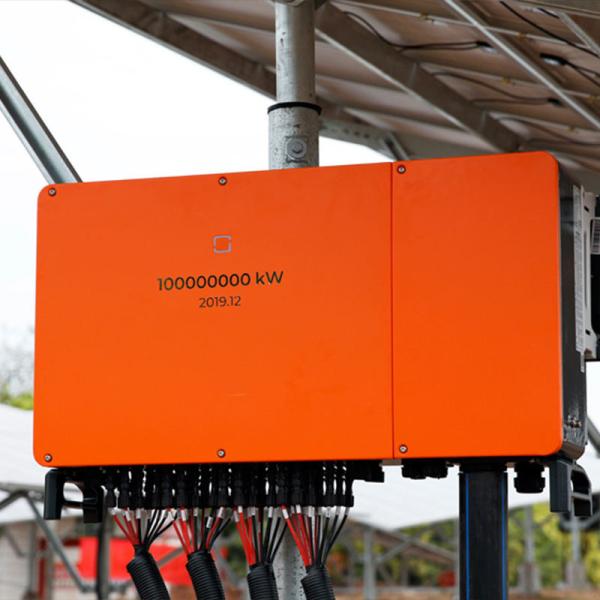

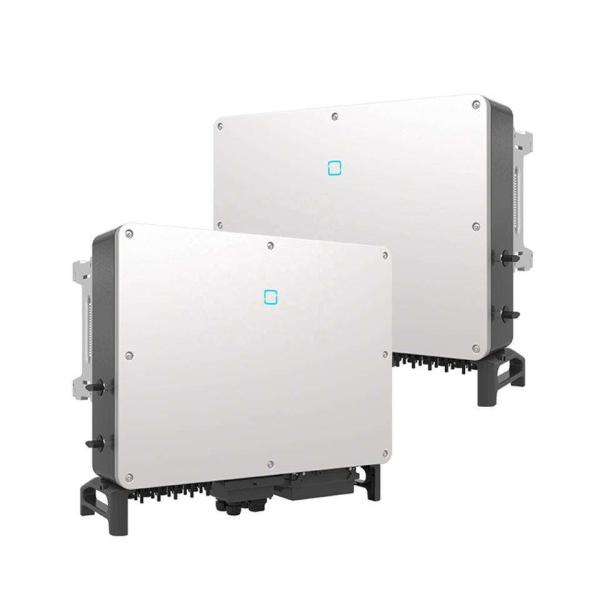

50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System
Specifications
Brand Name :
KVOU
Model Number :
SG33/40/50CX
Certification :
CE,UL
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A
Supply Ability :
5000 unit per month
Delivery Time :
7-15working days
Packaging Details :
Wooden case and Carton case
Output Voltage :
200V/250V
Output Frequency :
50/60Hz
Size :
782*645*310mm
Inverter Efficiency :
98.7%
Input Voltag :
200V/250V
Output Current :
83.6A
Weight :
60KG
Type :
DC/AC Inverters
Description

30KW 40KW 50KW Three Phase Solar Inverter Grid Connected For Solar System

This is a multifunctional inverter/charger that combines the functions of an inverter, solar charger, and battery charger to provide UPS support in a portable size. Its comprehensive LCD display provides

User configurable and easily accessible button operations such as battery charge current,

AC/solar charger priority, and acceptable input voltage depending on the application.

Pure Sine Wave Inverter

* Built-in MPPT solar charge controller

* Selectable input voltage range for household appliances

* The charging current can be selected according to the application

* Configurable AC/Solar input priority via LCD settings

* Compatible with mains voltage or generator power

* Automatic restart when AC is restored

* Overload and short circuit protection

* Battery balancing optimizes battery performance and life cycle

* Cold start function

* Parallel operation up to 9 units is only available for 5KVA models

Specification

Input( DC)
Type designation
SG33CX
SG40CX
SG50CX
SG110CX
Max. PV input voltage
1100 V
Min. PV input voltage / Start-up input voltage
200 V / 250 V
Nominal PV input voltage
585 V
MPP voltage range
200 – 1000 V
MPP voltage range for nominal power
550 – 850V
No. of independent MPP inputs
3
4
5
9
Max. number of PV strings per MPPT
2
2
2
2
Max. PV input current
78 A
104 A
130 A
26 A * 9
Max. DC short-circuit current
120 A
160 A
200 A
40 A * 9
Output (AC)
Type designation
SG33CX
SG40CX
SG50CX
SG110CX
AC output power
33 kVA @45 ℃, 400Vac / 36.3 kVA @ 40 ℃,400Vac 33 KVA@50 ℃, 415Vac / 36.3 KVA@45 ℃, 415Vac
40 kVA @45 ℃, 400Vac / 44 kVA @ 40 ℃,400Vac 40 KVA@50 ℃, 415Vac / 44 KVA@45 ℃, 415Vac
50 kVA @45 ℃, 400Vac / 55kVA @ 40 ℃,400Vac 50KVA@50 ℃, 415Vac / 55kVA @ 45 ℃,415Vac (Australia: max. 50 kVA)
110 kVA @ 45 ℃ / 100 kVA @ 50 ℃
Max. AC output current
55.2 A
66.9 A
83.6 A
158.8 A
Nominal AC voltage
3 / N / PE, 230 / 400 V
AC voltage range
312 – 528 V
320 – 460 V
Nominal grid frequency / Grid frequency range
50 Hz / 45 – 55 Hz, 60 Hz / 55 – 65 Hz
THD
< 3 % (at nominal power)
DC current injection
< 0.5 % In
Power factor at nominal power / Adjustable power factor
> 0.99 / 0.8 leading – 0.8 lagging
Feed-in phases / connection phases
3 / 3
Max. efficiency / European efficiency
98.6 % / 98.3 %
98.6% / 98.3%
98.7% / 98.4%
98.7 % / 98.5%
Dimensions (W*H*D)
702*595*310mm
782*645*310mm
782*645*310mm
1051*660*362.5 mm
Weight
50 kg
58 kg
62 kg
89 kg
Isolation method
Transformerless
Degree of protection
IP66
Night power consumption
≤2 W
Operating ambient temperature range
-30 to 60 ℃
Allowable relative humidity range (non-condensing)
0 – 100 %
Cooling method
Smart forced air cooling
Max. operating altitude
4000 m (> 3000 m derating)
Display
LED, Bluetooth+APP
Communication
RS485 / Optional: Wi-Fi, Ethernet
DC connection type
MC4 (Max. 6 mm²)
AC connection type
OT or DT terminal (Max.70 mm²)
OT / DT terminal (Max. 240 mm²)
Compliance
IEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683, VDE-AR-N 4105:2018, VDE-AR-N 4110:2018, IEC 61000-6-3, EN 50549, AS/NZS
4777.2:2015, CEI 0-21, VDE 0126-1-1/A1 VFR 2014, UTE C15-712-1:2013, DEWA
Grid Support
Q at night function, LVRT, HVRT,active & reactive power control and power ramp rate control

50KW 40KW 30KW Three Phase Hybrid Solar Inverter Grid Connected For Solar System

FQA:

1.Do inverters ruin batteries?
There are plenty of rumours floating around on the internet that will tell you that inverters are dangerous and you should not use them, or that they quickly run down your car battery. Yet, when used properly, you can rest assured that inverters are perfectly safe.

2.Do inverters use a lot of electricity?
An inverter uses a small amount of energy during the conversion process. The difference between the input power and the output power is expressed in percentages. The efficiency of modern inverters is more than 92 %.

3.Which is better inverter or split AC?
The inverter air conditioner is by far the most energy efficient. It is more economical and smooth in operation than the fixed speed air conditioner. It consumes less electricity due to its variable speed compressor, and is also good for the environment.

4.What are the advantages of hybrid inverter?
A hybrid inverter is a type of power inverter that uses both AC and DC power sources. They are becoming increasingly popular because of their advantages and benefits. The main advantage of a hybrid inverter is that it can use both AC and DC power sources to generate electricity.
