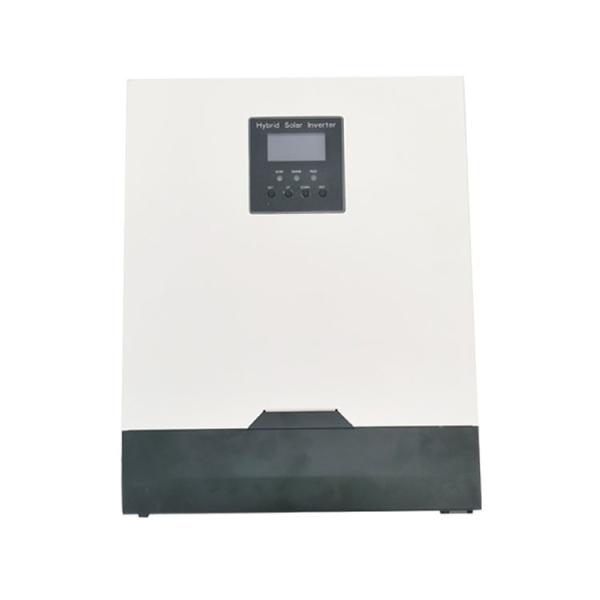

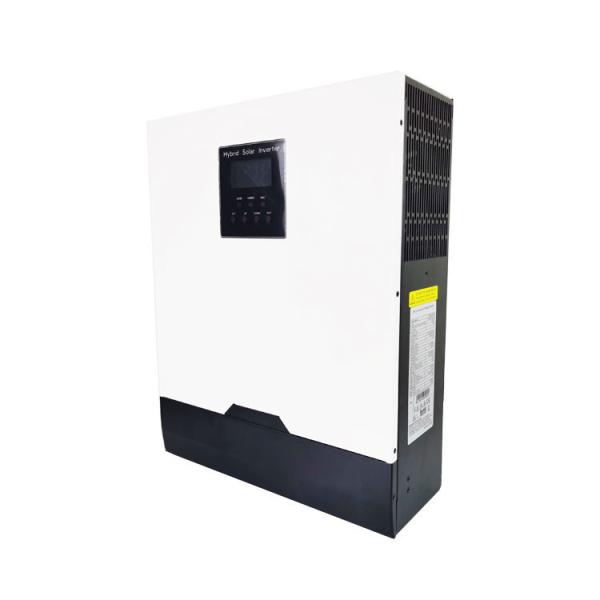

2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter
2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter
2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter
2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter
Specifications
Brand Name :
OCELL
Model Number :
Hybrid Solar Inverter
Certification :
CE/ROHS etc
Place of Origin :
China
MOQ :
2
Price :
negotiated price
Payment Terms :
T/T, L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
1000+PCA+10000per week
Delivery Time :
5-14 work day
Packaging Details :
Solar Inverter Carton Packaging
Input Voltage :
220/230Vac
Output Voltage :
230Vac
Output Current :
80A
Inverter Efficiency :
97%
Type :
DC/DC Converters, DC/AC Inverters
Model :
Off Grid Hybrid Inverter with Mppt Charge Controller
Description

2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter

MODEL
Glory M1500 HHS-24
Glory M3000 HHS-24
Glory M5000 HHS-48
Glory M5000 HHP-48
Capacity
1.5KVA/1.5KW
3KVA/3KW
5KVA/5KW
5KVA/5KW
Parallel Capability
NO
NO
NO
YES, 9units
Nominal Voltage(Input)
230VAC
Acceptable Voltage Range(Input)
170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances)
Frequency(Input)
50/60HZ (Auto sensing)
Nominal Voltage(Output)
220/230VAC ± 5%
Surge Power
3000VA
6000VA
10000VA
10000VA
Frequency(Output)
50Hz/60Hz
Waveform(Output)
Pure Sine Wave
Transfer Time(Output)
10ms (For Personal Computers) ; 20ms (For Home Appliances)
Peak Efficiency (PV to INV)
97%
Peak Efficiency (Battery to INV)
93%
Overload Protection
5s@>=150% load; 10s 110%~150% load
Crest Factor
3:1
Admissible Power Factor
0.6~1(inductive or capacitive)
Battery
Battery Voltage
24 VDC
24 VDC
48 VDC
48 VDC
Floating Chargr Voltage
27VDC
27VDC
54VDC
54VDC
Overcharge Protection
33 VDC
33 VDC
63 VDC
63 VDC
Charging Method
CC/CV
Solar Charge & AC Charge
Solar Charge Type
MPPT
Max. PV Array Power
2000W
4000W
5000W
5000W
PV Array MPPT Voltage Range
120VDC~450 VDC
Maximum Solar Input Current
10A
15A
18A
18A
Maximum Solar Charge Current
60A
80A
80A
80A
Maximum AC Charge Current
40A
60A
60A
60A
Maximum Charge Current
60A
80A
80A
80A
Communication Interface
USB/RS232/Dry-contact
Environment
Operating Temperature
(-10℃~50℃)
Storage Temperature
(-15℃~60℃)
Humidity
5% to 95% Relative Humidity (Non-condensing)
Nature
Size (L*W*H)
448mm*295mm*105mm
Packing Size (L*W*H)
565mm*380mm*190mm
Gross Weight (kg)
8.5
9
10
10
Communication Method
USB/RS232/Dry Contact

1.5kw 3kw 5kw solar system mppt solar charge controller with solar inverter.

This is a multi-functional inverter/charge, combining functions of inverter, solar charge and battery charge to offer uninterruptible power support in portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.
2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter2kw 3kw 4kw 5kw 10kw Off Grid Solar Hybrid Inverter
