Un38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/Kg
Un38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/Kg
Un38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/Kg
Un38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/Kg
Specifications
Brand Name :
OCELL
Model Number :
51.2V Golf Cart Battery
Certification :
CE MSDS UN38.3
Place of Origin :
China
MOQ :
2
Price :
negotiated price
Payment Terms :
Western Union, MoneyGram
Supply Ability :
10000 per week
Delivery Time :
5-14 work days
Packaging Details :
lifepo4 golf cart battery carton packaging
Product Name :
51.2v LiFePo4 Battery for golf cart
Voltage :
51.2v/25.6v/12v
Energy :
110wh/kg
Cycle :
6000
Description

Rechargeable Pack Battery RV Golf Cart Battery LiFePO4 Akku 51.2V 32Ah 64Ah 128Ah Lithium ion Phosphate Batteries

In the process of cell manufacturing, we strive for perfection and continue to optimize production processes to ensure cell yield and batch consistency. Our consistent aim is to treat defect zero tolerance.

All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable.If you have the opportunity to come to China, we welcome you to visit our factory and take you to enjoy Chinesedddd.
Golf Cart LFP LiFeP Parameters
Item Golf Cart LiFePo4 Battery
Nominal Voltage 51.2V 25.6V 12.8V
Nominal Capacity 32Ah 64Ah 128Ah
Watt-Hours 1.638KWh
Energy Density 110Wh/Kg
Cycle Life 6000cycles (DOD80%)
Charge Efficiency 99%
Resistance @ 50% SOC ≤30 mΩ ≤20 mΩ ≤15mΩ
Max. Cont. Discharge Current 60A 100A 150A
Peak Discharge Current 100A 200A 250A
Max. Cont. Charge Current 32A @ 25ºC 64A @ 25ºC 128A @ 25ºC
Self-Discharge <3% per Month @25ºC in Off mode
BCI Size 260 x 180 x 276mm (10.2” x7.1” x 10.9”)
Weight 15.6Kg (34.3Ibs)
Case Material ABS+PC
Stud Terminal M8 x 1.25 - 20
Insert Terminal M8 x 1.25 - 20
Torque 79.7-88.5 in-Ibs. 6.6 -7.4 ft-Ibs 9-10 N-m
Handles Molded
Enclosure Protection IP67
Case Flame Rating UL94-V0
Charge Temperature Range 32 ~ 113 ºF (0 ~ 45 ºC)
Discharge Temperature Range -4 ~ 140 ºF (-20 ~ 60 ºC)
Relative Humidity 25 ~ 85% RH
Storage Temperature -4°F to 95°F (-20°C to 35°C)
Certification IEC62133, UL2271, CE, UN38.3

Performance Advantage

All of our lithium iron phosphate power battery series have been approved UL , CB , UN38.3 and other certifications. The cell is safe, reliable and stable.Automatic production line, high product quality and production efficiency, the whole process online monitoring, data traceability,CID safety design.

Product Feature
-Battery pack cycle life is long, in line with low carbon, energy saving, environmental protection values.
-Intelligent PACK power assembly line with MES system.
-The battery string provides high safety performance. When the temperature exceeds the threshold, the battery string automatically starts the protection function.
-The BMS management system runs data monitoring, SOC estimation and data transmission.
-Using lithium iron phosphate battery, high cycle times, safe and reliable.
-Uniform flow design, superior performance.

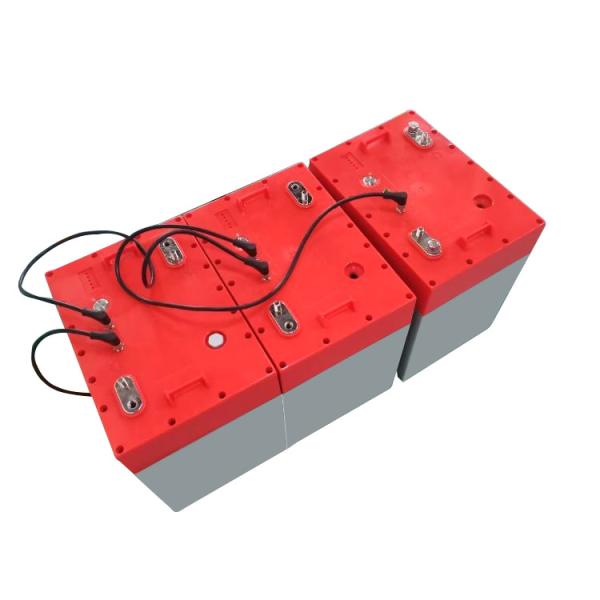

Up to 10 Parallel Connections

• Scalable capacity up to 300Ah
• Additive continuous and peak currents
• Intelligent battery-to-battery balancing

Unique BMS Design

• Microcontroller-based design
• Intuitive software
• Solid State Switch for ultra-fast response times
• High-resolution internal measurements
• Ultra-low self-consumption
• Non-volatile historical data
• CANbus communication

Heat-sink Design

• Strategically located
• Unique passive cooling
• Prevents over-heating of critical components
• Plastic housing: ABS+PC
• BCI Size GC2
• Enclosure: UL94-V0 & IP67

Dual M8 Terminals (insert and stud)

• Ample space for connections

LED Indicator

• 5 LED indicate state of charge (SOC), system operation status and warning

Characteristics

• Fast charging within 3 hours
• Rate discharge current up to 1C and DOD up to 95%
• Cycle life more than 6000 at 80%DOD
Un38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/KgUn38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/KgUn38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/KgUn38.3 Ocell Golf Cart Lifepo4 Battery Rechargeable 110wh/Kg

Q:Are you trading company or manufacturer?

A:We are YiChang original factory from hubei , China.

Q:Can I print my LOGO on it?

A: YES, LOGO/sticker/OEM/ODM welcomed.
Q:Can your company accpect OEM and ODM order?
A:We have our own factory and professional design and development team, just tell us your requirements, we can design and produce your own brand of products.
Q:Can the bms be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
Q:How is your delivery date and shipping?
A:Normally,our delivery data is about 7-10 days after confirmed,but it also depends on the quantity and your location situation.
And we usually use FedEx,DHL,UPS,and other maritime transport methods. Please inform us in advance if you have a request for transportation.
