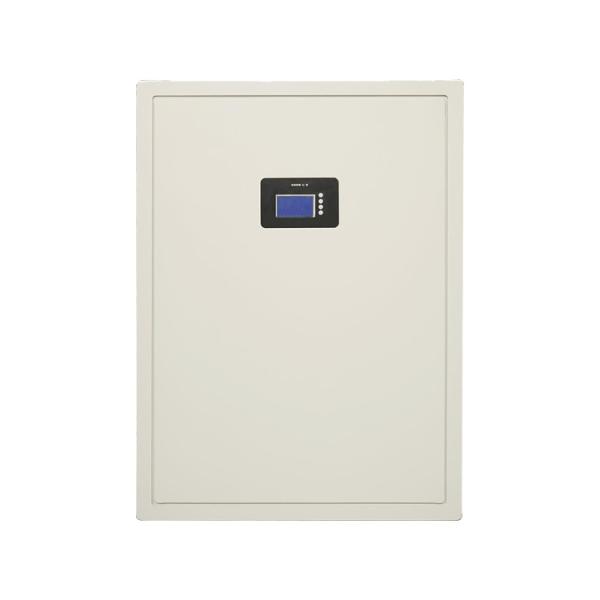

51.2v 10kwh Residential Energy Storage Systems 200ah Ess
51.2v 10kwh Residential Energy Storage Systems 200ah Ess
Specifications
Brand Name :
OCELL
Model Number :
OCELL-NE-200Ah-1
Certification :
CE MSDS UN38.3
Place of Origin :
CN
MOQ :
10
Price :
negotiated price
Payment Terms :
Western Union, MoneyGram
Supply Ability :
1000+PCS+1000 per week
Delivery Time :
5-14 work days
Packaging Details :
solar power station carton packaging
System Type :
Wall-mounted
Weight :
103Kg±3kg
Dimension (L*W*H) :
860*638*180mm
Working Voltage Range :
42V~58.4V
Nominal Voltage :
51.2V
Nominal Power :
10.24KWh(95%DOD)
Description

Home Energy Solar Storage Battery 51.2V 10KWH 200Ah ESS Home Storage Battery

The 51.2V 200Ah battery system is applicable to home energy storage, small or medium sized shopping mall energy storage,which uses 32 pieces of 3.2V 100Ah battery cells in 16s2p configuration.Built-inSeplos smart BMS suppor tmaximumof 16packs of battery in paralleltoachieve high ercapacity.The system can not becon nected in series.And do not mixusea ocell battery with anyother battery brands or models.

O'Cell is committed to providing high-quality solar inverter solutions that help to power a greener future. With its advanced technology,flexible design, and user-friendly interface, [Inverter Model] is the ideal choice for anyone looking to harness the power of the sun and make the switch to clean, renewable energy.

51.2v 10kwh Residential Energy Storage Systems 200ah Ess

Solar Inverter Characteristics

1.C32-cell battery voltage sampling test, with deviation of ±20mV
2.Battery and ambient temperature detection: 4 battery temperature sensors, 1 ambient temperature sensor, and 1 MOS temperature sensor, with a deviation of ±2°C.
3.Battery capacity and cycles: Complete a full charge/discharge cycle to set the actual capacity. The remaining capacity of the battery is monitored with a capacity estimation accuracy within 5% deviation. Additionally, charge and discharge cycle times as well as full charge and discharge cycle times are configurable
4.Intelligent cell balancing: The charging and static balancing strategies can be set flexibly to effectively extend the service life.
5.Communication port: PC or smart front-end can monitor battery pack data, control operation and set parameters through commands such as telemetry, remote signaling, remote adjustment, and remote control. The communication protocol conforms to the requirements of YD/T 1363.3, and realizes cascade communication at the same time.
6.Communication interface: PC or intelligent front-end can monitor battery data, control operation and set parameters through telemetry, remote signaling, remote adjustment, remote control and other commands. The communication protocol meets the requirements of YD/T 1363.3 and realizes cascade communication
Items
Specifications
BatteryConfiguration
2P16S
NominalVoltage
51.2V
WorkingVoltageRange
42V~58.4V
NominalCapacity
200AH
NominalPower
10.24KWh(95%DOD)
StandardCharging/Discharging Current
100A@25±2℃
MaximumChargingCurrent
200A@25±2℃
MaximumDischargingCurrent
MaximumDischargingCurrent
WorkingAmbientTemperature
0～45℃(Charge)
-10～40℃(Discharge)
StorageTemperature&Humidity
-10℃~35℃(within1monthstorage)
25±2℃(within3monthsstorage)
65%±20%RH
Size(LxWxH)
(860)×(638)×(180)mm
Weight
103Kg±3kg
Cycling Lifespan
4000 cycles @25℃ 100A Charging/discharging current 80%
DOD
IP Rate
IP 65
Communication
CAN or RS485
Altitude
0-3000m
Humidity Range
5~95%

51.2v 10kwh Residential Energy Storage Systems 200ah Ess

1. What is an energy storage battery?

An energy storage battery is a device that stores electrical energy in the form of chemical energy and releases it as electrical energy when needed. It is used to store surplus energy generated from renewable sources or during low-demand periods for later use.

2. What are the common types of energy storage batteries?
Common types of energy storage batteries include lithium-ion, lead-acid, nickel-cadmium, and flow batteries. Lithium-ion batteries are the most widely used in residential and commercial applications.

3. Why are energy storage batteries important?
Energy storage batteries play a crucial role in stabilizing the electrical grid, managing energy supply and demand, and increasing the efficiency of renewable energy sources by storing excess energy for use during peak demand periods.

4. How long do energy storage batteries last?
The lifespan of an energy storage battery varies depending on the type and usage but typically ranges from 5 to 20 years.
Lithium-ion batteries often have a lifespan of 10-15 years.

5. Can energy storage batteries be used for off-grid applications?
Yes, energy storage batteries are commonly used in off-grid and remote locations to provide a reliable source of electricity when there is no access to the main grid.

6. Are energy storage batteries environmentally friendly?
Energy storage batteries can be environmentally friendly, especiallywhen used with renewable energy sources. However, it's essential to consider the environmental impact of battery production and disposal.
