Description
Smart Golf Cart Battery Monitoring

Smart LiFePO4 Golf Cart Battery 105Ah 210Ah

High-current lithium traction battery with APP monitoring, multi-voltage options and smart battery-management functions for golf carts and commercial fleets.

Product Overview

The Chalongfly smart LiFePO4 golf cart battery series is developed for electric golf carts, sightseeing vehicles, resort transportation and commercial fleet applications requiring intelligent battery monitoring and high traction-current capability.

The series supports multiple golf cart voltage platforms with 105Ah and 210Ah capacity options. The featured 51.2V 105Ah configuration provides 5376Wh of nominal energy.

Bluetooth APP monitoring, high-current BMS configurations, optional self-heating and customized monitoring functions can be integrated according to the vehicle and project requirements.

Product Configuration

Battery Chemistry LiFePO4
System Voltage Options 36V / 48V / 72V / 96V
Capacity Options 105Ah / 210Ah
Reference Configuration 51.2V 105Ah
Reference Energy 5376Wh
High-Current Output Up to 300A Continuous / 600A Peak
Cycle Life More Than 4,000 Cycles
Reference Temperature −20°C to 65°C
Monitoring Bluetooth APP Monitoring Available
Self-Heating Optional

Final voltage-capacity combination, current rating, dimensions and weight are confirmed according to the selected vehicle and battery configuration.

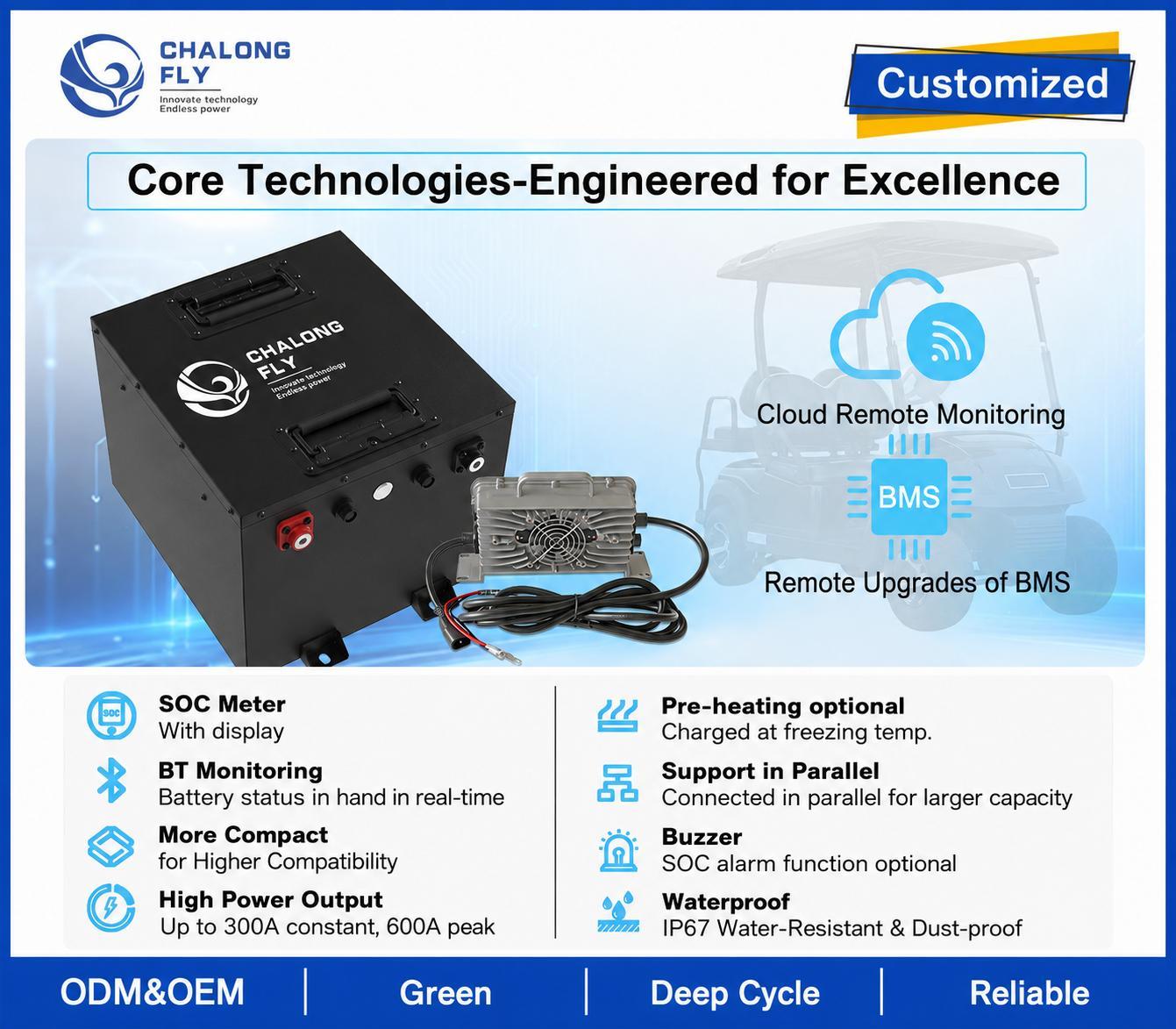

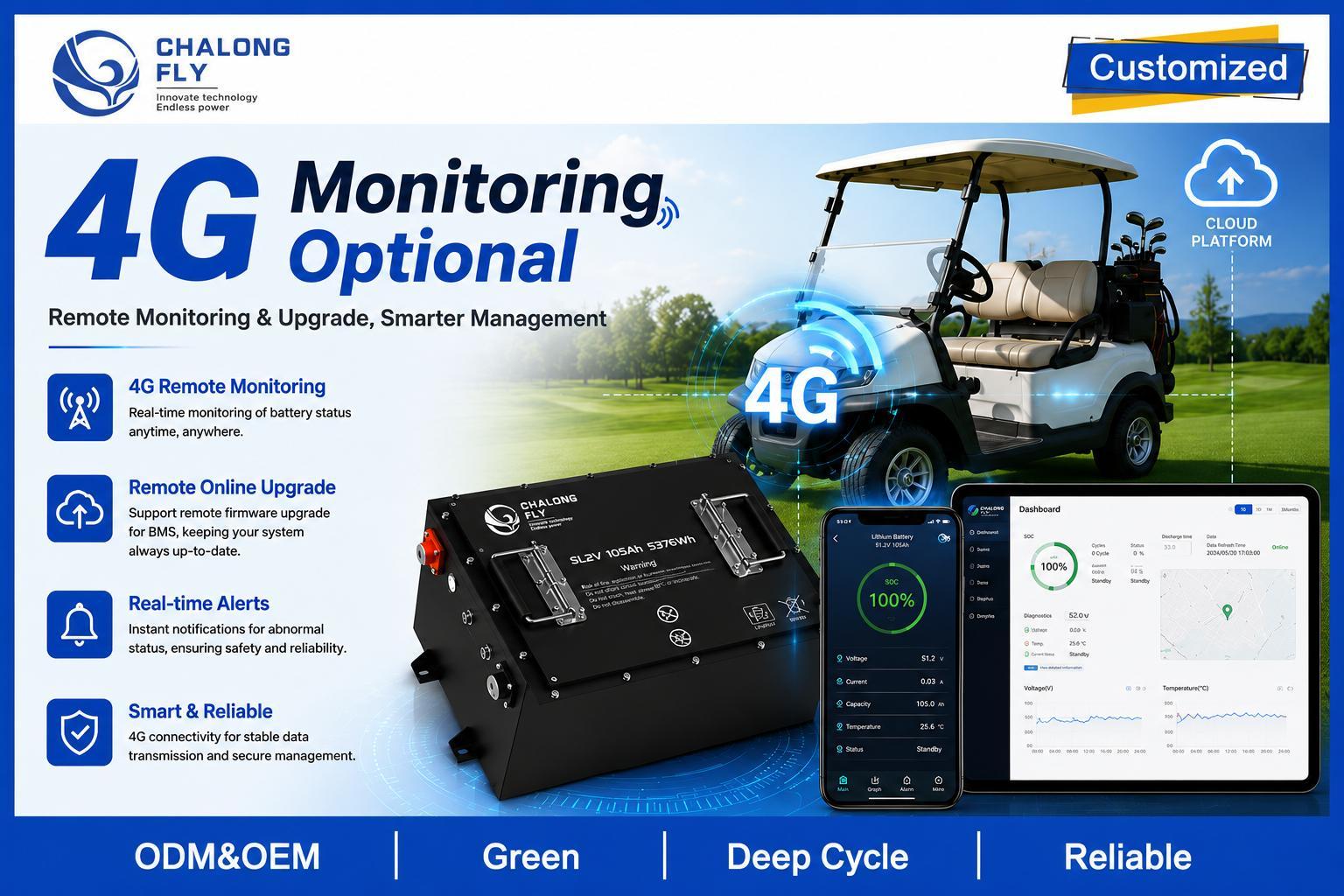

Smart APP Battery Monitoring

Smart monitoring helps golf cart owners and fleet operators understand battery condition without relying only on a basic dashboard voltage indicator.

Bluetooth APP Monitoring

Compatible configurations allow battery operating information to be checked through a mobile application.

Custom APP Development

Monitoring interface and branding customization can be evaluated for OEM and private-label battery projects.

Fleet-Oriented Diagnostics

Monitoring and diagnostic functions can be configured according to the final communication architecture and fleet-management requirements.

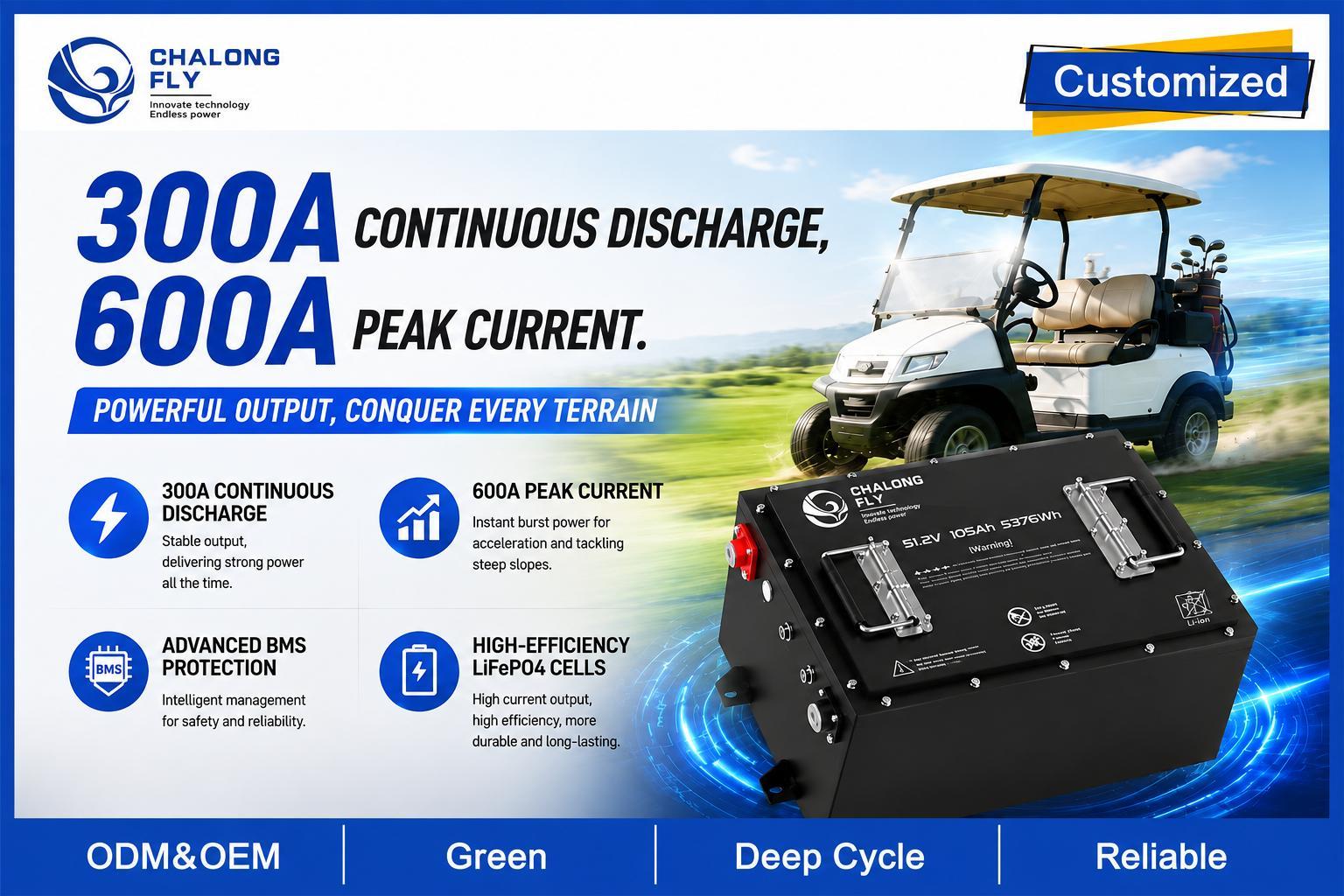

High-Current Traction Performance

Golf carts used for commercial fleets, steep terrain, heavy passenger loads and upgraded motor systems can require significantly higher battery current than standard recreational vehicles.

Continuous Current Up to 300A on Selected Configurations
Peak Current Up to 600A on Selected Configurations
BMS Selection Matched to Motor Controller and Vehicle Requirements
Typical Factors Motor Power, Controller Current, Load, Acceleration and Hill Grade

105Ah or 210Ah?

Selection 105Ah 210Ah
Driving Requirement Standard to Medium Range Extended Range
Typical Duty Golf Course and Resort Use Long Commercial Operating Hours
Installation Space Lower Space Requirement Larger Battery Compartment Required

Final battery energy, dimensions and weight depend on the selected voltage platform and capacity configuration.

Optional Self-Heating for Cold Climates

An integrated self-heating system can be configured for projects operating in low-temperature environments.

Self-Heating: Optional

Heating requirements should be confirmed according to minimum ambient temperature, charging conditions and battery-control strategy.

Smart Fleet Applications

Golf Course Fleets Battery monitoring for multi-vehicle daily operation Resort Transportation Smart lithium power for passenger shuttle vehicles
Sightseeing Vehicles High-capacity battery options for long daily operating hours Commercial Utility Carts High-current configurations for demanding vehicle applications

OEM and Smart Battery Customization

  • System voltage and battery capacity
  • Continuous and peak BMS current
  • Battery enclosure dimensions
  • Main connector and cable harness
  • Bluetooth APP monitoring
  • Custom APP interface and branding
  • Communication integration
  • Optional self-heating system
  • Matched charger and SOC display
  • Logo, label and export packaging

Information Required for Battery Selection

  • Golf cart brand and model
  • System voltage
  • Motor rated and peak power
  • Controller continuous and peak current
  • Required driving range
  • Maximum passenger or cargo load
  • Maximum hill grade
  • Battery compartment dimensions
  • Monitoring and communication requirements
  • Existing charger and connector information

Frequently Asked Questions

Which voltage options are available?

The series supports 36V, 48V, 72V and 96V system options. Final electrical specifications depend on the selected vehicle platform.

Does the battery support APP monitoring?

Yes. Bluetooth APP monitoring is available for compatible configurations.

Can the APP be customized?

Custom APP development can be evaluated for OEM and private-label projects according to monitoring and branding requirements.

Does every model provide 300A continuous current?

No. Selected high-current configurations can support up to 300A continuous and 600A peak output. Final current ratings depend on the selected cells, BMS and vehicle requirements.

Is self-heating available?

Yes. A built-in self-heating system can be supplied as an optional configuration for low-temperature projects.

What information is required before ordering?

Please provide the golf cart model, system voltage, motor power, controller current, required range, battery compartment dimensions and monitoring requirements.

Build a Smarter Golf Cart Battery System

Send Chalongfly your golf cart voltage, motor-controller data, required driving range, battery compartment dimensions and monitoring requirements. Our team will configure the battery capacity, BMS current, APP monitoring, charger and optional smart functions for your project.
