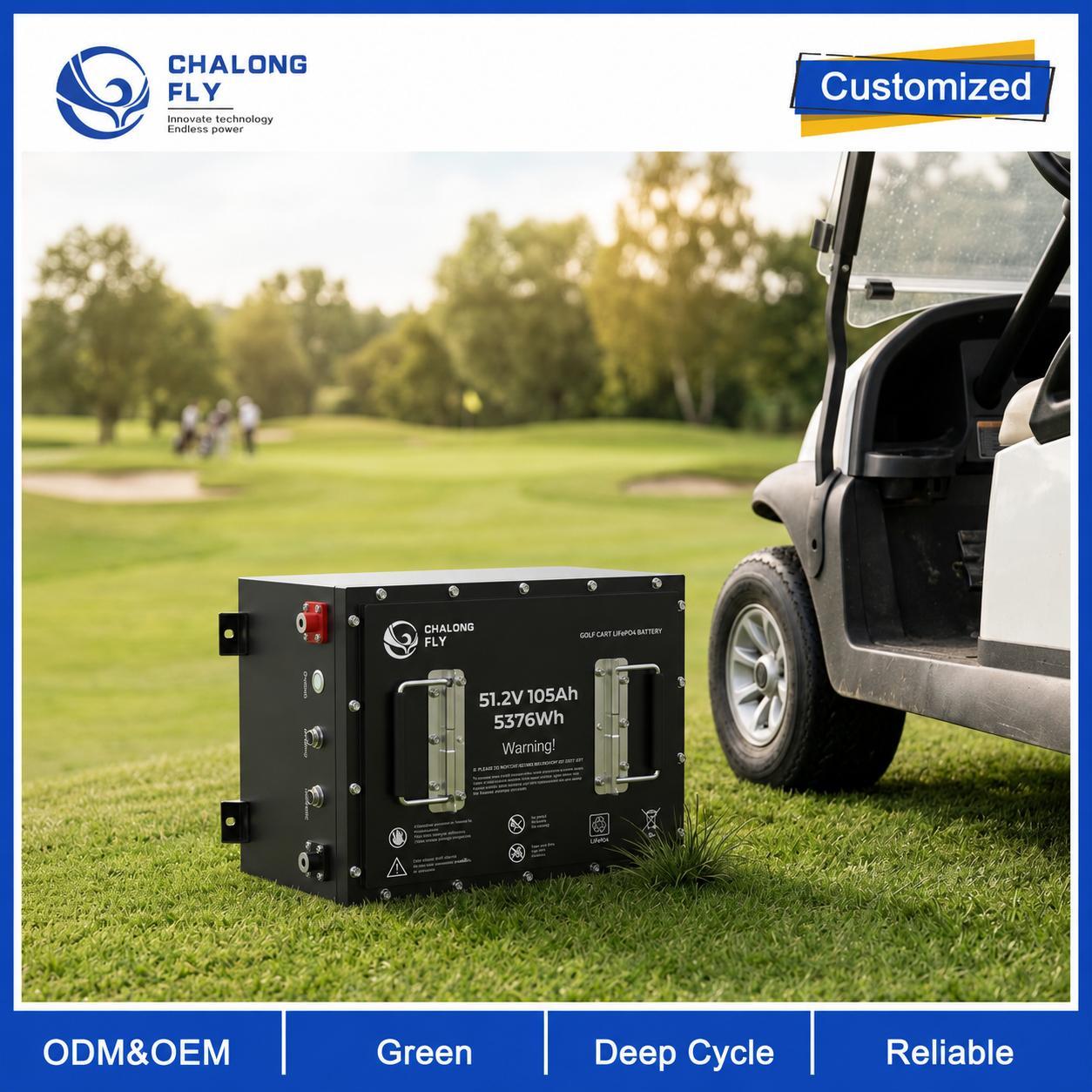

48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
48V High-Current LiFePO4 Golf Cart Battery 105Ah and 160Ah for Heavy Load and Hill Climbing
Specifications
Model Number :
CLF-GC-HC-48V105-160Ah
MOQ :
2 Packs
Packaging Details :
Each battery is packed in a protective PE bag with foam cushioning and a strong export carton. Wooden cases or pallets are available for bulk orders.
Supply Ability :
300 Packs per Month
Price :
Negotiable
Delivery Time :
25–35 Working Days
Certification :
UN38.3, MSDS
Brand Name :
Chalongfly
Place of Origin :
Hunan,China
Description
High-Current 48V Golf Cart Power

48V High-Current LiFePO4 Golf Cart Battery 105Ah 160Ah

High-current lithium traction battery solutions for hill climbing, heavy loads, utility carts and demanding commercial golf cart applications.

Product Overview

The Chalongfly high-current 48V golf cart battery series is designed for applications that require stronger traction output than a standard recreational golf cart battery.

The featured 51.2V 105Ah configuration provides 5376Wh of nominal energy, while the 51.2V 160Ah configuration provides 8192Wh for longer driving range and demanding commercial operation.

BMS current can be selected according to motor power, controller current, vehicle weight, hill grade and acceleration requirements.

105Ah and 160Ah Configurations

Specification 105Ah 160Ah
System Voltage 48V 48V
Nominal Voltage 51.2V 51.2V
Rated Capacity 105Ah 160Ah
Nominal Energy 5376Wh 8192Wh
Maximum Charge Voltage 58.4V 58.4V
Reference Charge Current 50A 50A
Reference Continuous Discharge 150A 150A
Reference Peak Discharge 300A 300A
Dimensions 472 × 312 × 243mm 615 × 403 × 200mm
Approx. Weight 45kg 72kg

High-Current Traction Performance

Modified golf carts, utility vehicles, high-load passenger carts and hill-climbing applications can demand significantly more battery current than standard golf course operation.

150A / 300A Reference Configuration

Standard reference current for compatible golf cart traction applications.

Higher-Current BMS Available

Higher-current configurations can be developed when the motor controller, acceleration or hill-climbing requirements exceed the standard configuration.

Up to 250A Continuous on Selected Configurations

Selected high-current battery configurations can be engineered for demanding motor-controller and vehicle applications.

Designed for Hill Climbing and Heavy Loads

Battery current requirements increase significantly when a golf cart operates on steep terrain, carries additional passengers or cargo, uses larger tires, or has an upgraded motor and controller.

Hill-Climbing Golf Carts Heavy Passenger Loads
Electric Utility Carts Commercial Fleet Vehicles
Upgraded Motor Systems Large-Tire Modified Golf Carts

105Ah or 160Ah?

Selection 105Ah 160Ah
Energy 5376Wh 8192Wh
Driving Requirement Standard to Medium Range Extended Range / Long Duty
Installation Space More Compact Larger Battery Compartment Required
Typical Use Golf Carts / Passenger Carts Commercial / Utility / Extended Duty

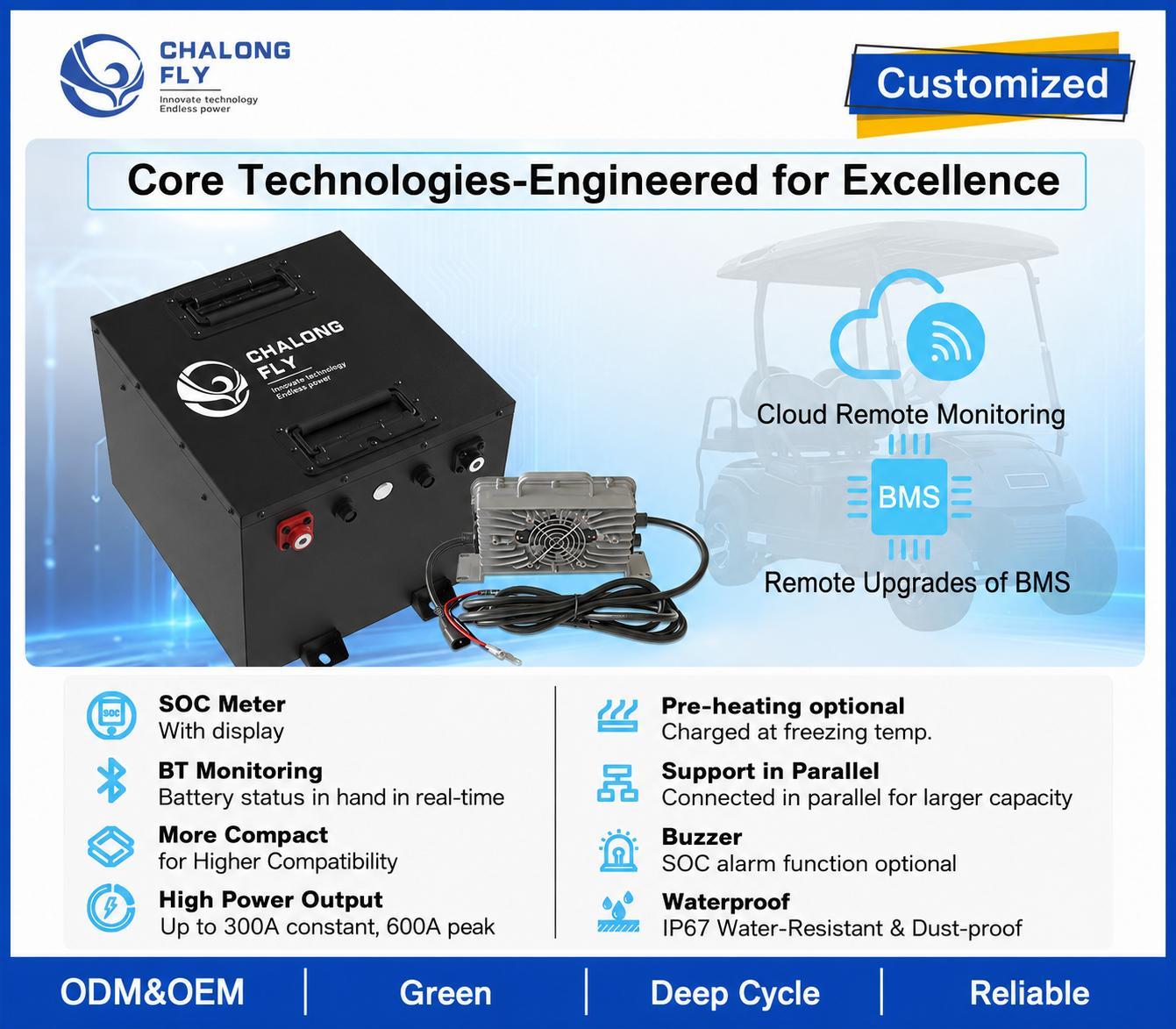

Smart BMS and Monitoring

Smart battery-management and monitoring functions support reliable high-current traction operation and convenient battery-status checking.

Integrated Smart BMS Bluetooth Monitoring Available
SOC Display Optional CAN / RS485 Optional
Self-Heating Optional GPS Optional

Complete Golf Cart Battery System

  • Matched LiFePO4 charger
  • SOC battery display
  • Bluetooth monitoring
  • Main power connector
  • Customized cable harness
  • DC/DC voltage reducer
  • Battery mounting bracket
  • Charging receptacle and installation accessories

Information Required for High-Current Battery Selection

  • Golf cart brand and model
  • Motor rated and peak power
  • Controller continuous and peak current
  • Maximum passenger and cargo load
  • Maximum hill grade
  • Wheel and tire modifications
  • Battery compartment dimensions
  • Required driving range
  • Main power connector and charger information

Frequently Asked Questions

Is this a 48V or 51.2V battery?

It is designed for a 48V golf cart system and uses a 51.2V nominal LiFePO4 battery configuration.

Does every configuration provide 250A continuous current?

No. The standard reference configuration is 150A continuous and 300A peak. Higher-current BMS options are available according to project requirements.

Is this battery suitable for hill climbing?

Yes, when the battery current, motor controller, motor power, vehicle load and maximum hill grade are correctly matched.

Should I choose 105Ah or 160Ah?

The correct capacity depends on required range, available battery space, vehicle load and daily operating duty. The 160Ah configuration provides significantly more energy for extended operation.

Is Bluetooth monitoring available?

Yes. Bluetooth monitoring is available for compatible battery configurations.

What information is required before ordering?

Please provide the golf cart model, motor power, controller current, vehicle load, maximum hill grade, battery compartment dimensions and required driving range.

Configure a High-Current Golf Cart Battery

Send Chalongfly your motor power, controller current, vehicle load, hill grade, required driving range and battery compartment dimensions. Our team will recommend the appropriate 105Ah or 160Ah battery and BMS current configuration.
