Specifications
Brand Name :
AWT
Model Number :
5ppm Semi-Auto ESS Production Line
Place of Origin :
CHINA
MOQ :
1
Description

Production Line Overview:

1.1 Overview

This equipment is a semi-automatic production line for ESS prismatic battery module PACK production line.

1.2 Basic Performance Requirements for Production Line

▲ Equipment capacity (based on 280Ah single cell:

The overall production efficiency of the line is 4 to 6PPM (full material operation, excluding waiting for materials and personnel operation),Factors such as production, power supply, and gas supply affect time, converted into production capacity.

The process flow

SN Process Manual or Auto

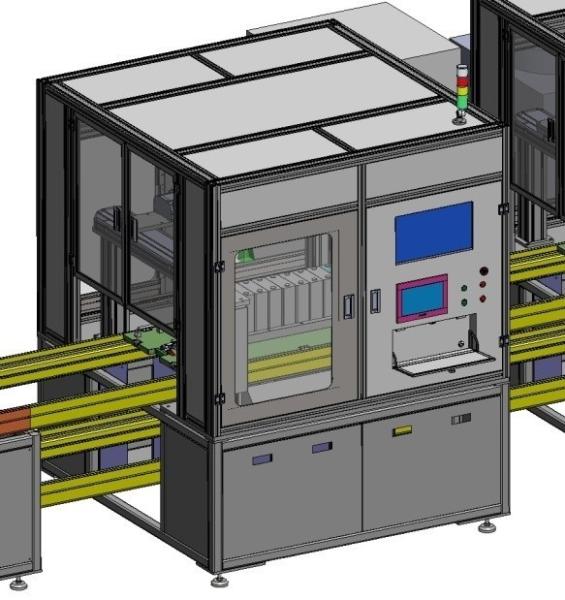

1 Sorting machine manual feeding Manual

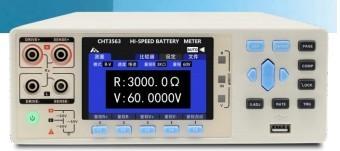

2 Sorting machine scanning, battery OCV testing, sorting (NG, OK four levels, a total of 5 levels) Auto
3 Single sided adhesive bonding of battery cells Manual

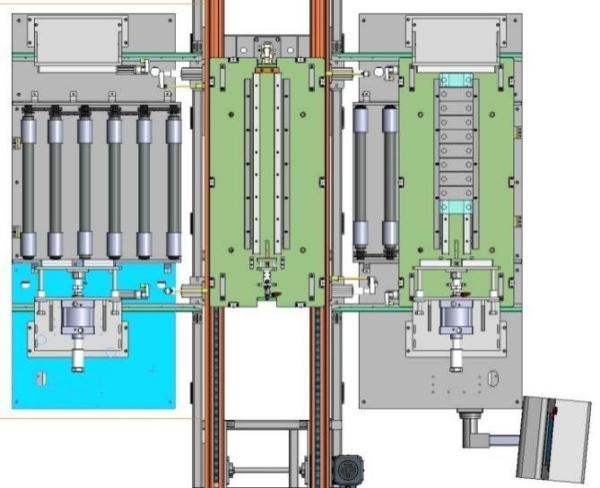

4 Stacking, extruding, and molding steel strips or steel strips for battery cells Semi-Auto
5 Module delivery to the double speed line Auto
6 Scanning of battery cells and CCD photography before welding, polarity detection Auto
7 Pole laser cleaning Auto
8 Install aluminum busbar components Manual

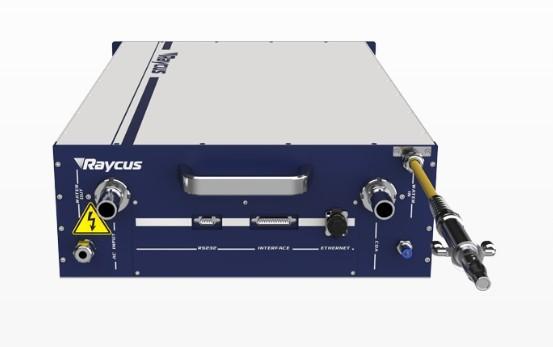

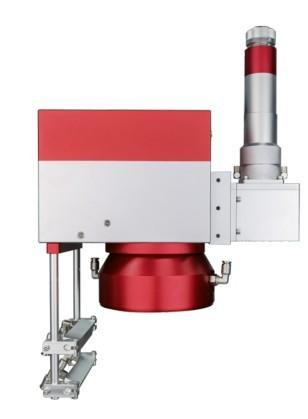

9 Laser welding Auto

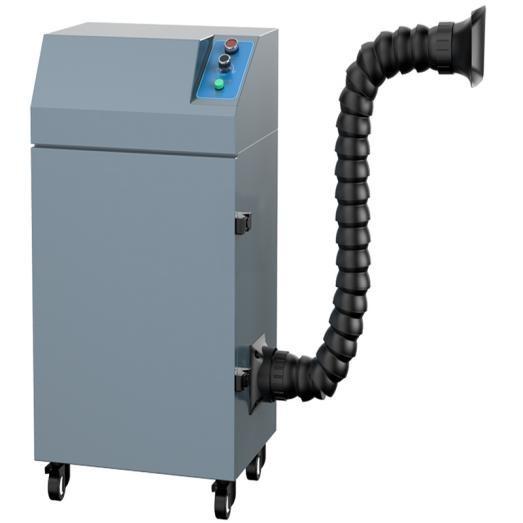

10 Post weld dust removal (auxiliary equipment)+manual inspection Manual
11 Module EOL testing Manual
12 Module offline Semi-Auto
