Battery Energy Storage System-DC side
Battery Energy Storage System-DC side
Battery Energy Storage System-DC side
Battery Energy Storage System-DC side
Battery Energy Storage System-DC side
Battery Energy Storage System-DC side
Specifications
product :
battery energy storage system
attributes :
advanced technological solution,energy storage in multiple ways,later use
Description

Product Description

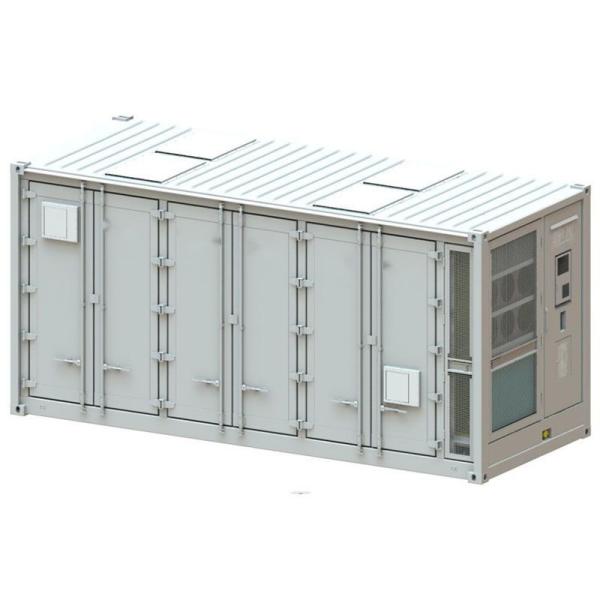

The battery energy storage system is an advanced technological solution that allows energy storage in multiple ways for later use. They make renewable energy more reliable and thus more viable. Our 20feets container energy storage system has two options 3.727MWh and 5.111MWh to meet different energy supply need. Our energy Storage Container integrated with full set of DC side storage system inside including battery racks, liquid cooling system, fire fighting system and electrical cabinet.

Technical Data of Container Energy Storage System

No. Item LS3727-BSC-10S416-8P52-280 LS5111-BSC-12S416-4P104-280 Remark
1 Configuration 416s10p 416S12P
2 Rated Energy 3727.36kWh 5111.8KWh 100%DOD,25℃,0.5C
3 Operating Voltage Range 1081.6~1497.6V 1040~1500V For cell 2.6V~3.6V
4 Dimension 6058mm*2438mm*2896mm 6058mm*2438mm*2896mm
5 Mass ~35000kg ~43000Kg
6 Rated charge current 1400A(for 0.5P system) 1920A(for 0.5P system) According to current map
7 Rated discharge current 1400A(for 0.5P system) 1920A(for 0.5P system) According to current map
8 Short overload charging current
(≤1min)		 2800A(for 0.5P system) 3840A(for 0.5P system) According to current map
9 Short overload charging current
(≤1min)		 2800A(for 0.5P system) 3840A(for 0.5P system) According to current map
10 Temperature range in cabin -20~50℃ -20~50℃
11 IP level of cabin Bat. Room IP54
Electric room IP54		 Bat. Room IP54
Electric room IP54
12 Cooling and heating type Liquid cooling / heating Liquid cooling / heating
13 Communication agreement CAN, RS485, TCP/IP CAN, RS485, TCP/IP
14 Environment temperature -30℃~55℃ -30℃~60℃ /
15 environment humidity 5%~90%RH 10%~90%RH /
16 Altitude ≤3000m ≤3000m /
