10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
Specifications
Structure :
10s6p
Continuous Discharging Current :
15A
Cell Type :
NCR18650B Battery Cells
Dishcarging Cut-off Voltage :
27.5V
Brand Name :
RESKY
Model Number :
RSK-3620.4
Certification :
CE,RoHS,MSDS,Un38.3
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
500pcs/day
Delivery Time :
15-20days
Packaging Details :
Standard exporting packages/UN box
Charging Current :
5A
Charging Cut-off Voltage :
42V
Peak Discharging Current :
20A
Wh :
734wh
Electrolyte :
Li(Nicomn)O2
Motor :
750W
Description
10s6p 36V 20.4Ah Rechargeable Lithium Ion Battery Pack for 750W Electric Scooter
Product Specifications
Specification Value
Product Name 36V 20.4Ah
Model RSK-3620.4
Rated Capacity 20.4Ah
Nominal Voltage 36V
Over Discharge Protection Voltage 30V±0.05V
Over Charge Protection Voltage 42V±0.05V
AC Impedance New Cell Max. ≤100 mΩ
Maximum Continuous Charge Current ≤5A adjustment
Maximum Continuous Discharge Current ≤20A adjustment
Maximum Pulse Discharge Current ≤30A adjustment
Operation Temperature Range Charge: 0~45°C, Discharge: -20~60°C
Storage Temperature Range Less than 1 year: -20~25°C
Less than 3 months: -20~40°C
Weight Approx 3.5kg
Cycle Characteristic 500 times
Available Cell Brands
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
Available Cell Types
  • Domestic ICR18650 battery cell (2600mAh, 2900mAh, 3400mAh, 3500mAh)
  • Domestic ICR21700 battery cell (4000mAh, 4500mAh, 5000mAh)
  • NCR18650F, NCR18650PF, NCR18650BE, NCR18650BD, NCR18650B, NCR18650BF, NCR18650GA
Available Samsung Cells
Model Capacity Current Discharge Rate
INR1865035ET 3500 10A 3C
INR1865025RM/RT 2500 20A 8C
INR1865030Q/QM 3000 15A 5C
INR2170050E 4800 10A 2C
INR2170040T 4000 30A 7C
INR2170050GB 5000 10A 2C
INR2170050G 5000 10A 2C
INR2170050S 5000 35A 7C
Custom Assembly Options
  • Various series or parallel assembly configurations
  • Voltage range for Li-ion battery pack: 12V/24V/48V/60V/72V etc.
  • Voltage range for LiFePO4 battery pack: 12.8V/25.6V/51.2V/64V etc.
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter

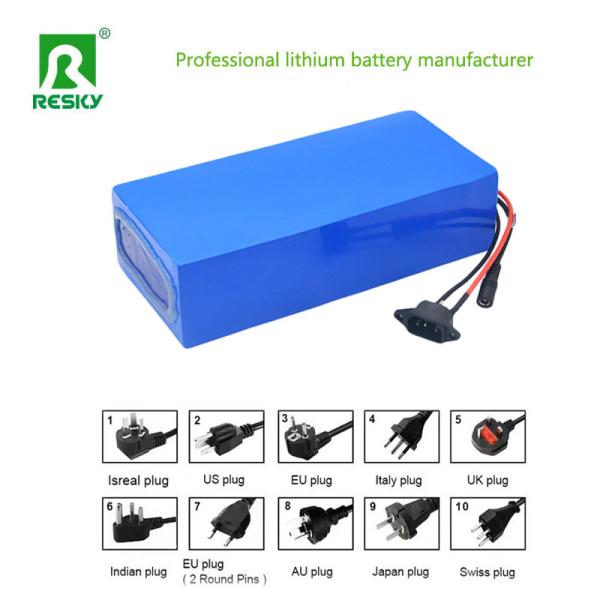

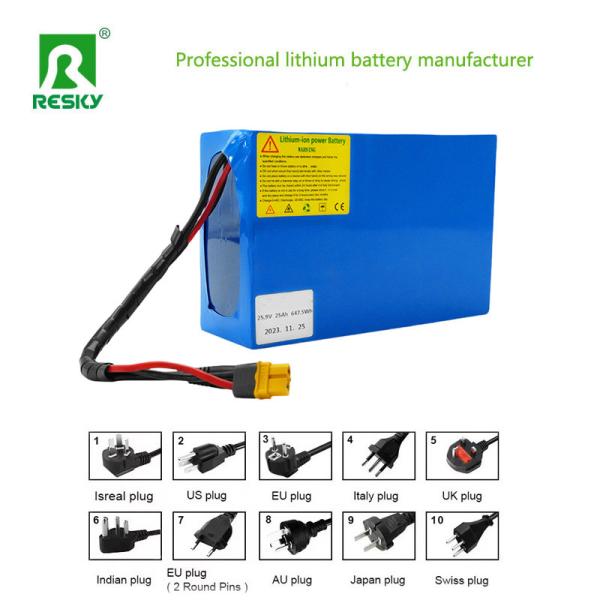

Input & Output Plug Options
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
Applications
  • Electric bicycle replacement
  • Electric scooter replacement
  • Electric motorcycle
  • Electric forklift
  • Electric golf cart
  • Electric tricycle
  • Electric wheelchair
  • Solar street LED light
  • Storage UPS
10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter 10s6p 36v 20.4Ah Rechargeable Lithium Ion Battery Pack For 750W Electric Scooter
