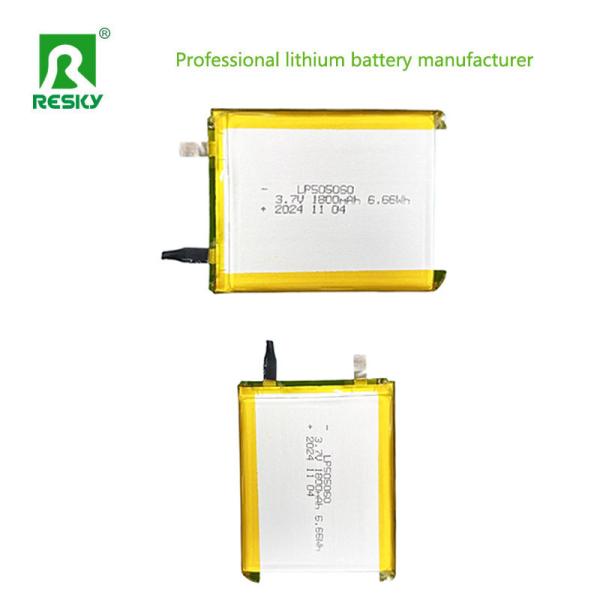

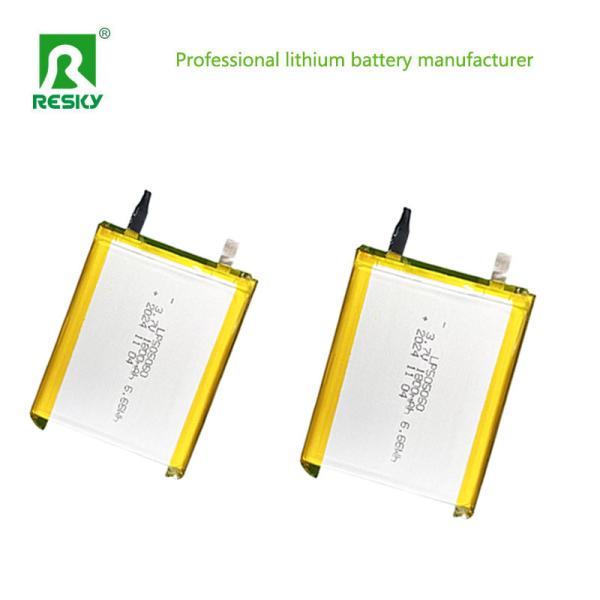

Rechargeable Lithium Polymer Battery Cell 505060 3.7V 7.4v 2000mAh For Beauty Instrument
Rechargeable Lithium Polymer Battery Cell 505060 3.7V 7.4v 2000mAh For Beauty Instrument
Rechargeable Lithium Polymer Battery Cell 505060 3.7V 7.4v 2000mAh For Beauty Instrument
Rechargeable Lithium Polymer Battery Cell 505060 3.7V 7.4v 2000mAh For Beauty Instrument
Specifications
Certification :
CE, RoHS, MSDS, Un38.3
Brand Name :
RESKY
Model Number :
LP505060
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Shape :
Square Battery
Nominal Capacity :
1800mAh
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
25g
MOQ :
100PCS
Connector :
Jst, Molex....
Specification :
5*50*60mm
OEM service :
YES
HS Code :
8507600090
Description
Rechargeable Lithium Polymer Battery Cell 505060 3.7V 1800mAh For Beauty Instrument
High-performance lithium polymer battery cell designed specifically for beauty instruments, offering reliable power with advanced safety features.
Technical Specifications
NO. Items Specifications
1 Batteries 3.7V 1800mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 1800mAh @ 0.2C Discharge
5 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours (Ref.)
Rapid: 2 hours (Ref.)
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 60±2mm (excluding tabs)
Width: 50±0.5mm
Thickness: 5±0.2mm
14 Drop Test Dropped from 1m height twice onto concrete - no fire, no leakage
15 Cycle time ≥500 cycles
LiPo Battery Safety Guidelines
Proper Storage Conditions
  • Temperature: Store between 15°C to 25°C (59°F to 77°F) to prevent accelerated aging
  • Humidity: Keep in dry, moisture-free environment to prevent corrosion
  • Container: Use fire-resistant bags or containers for additional safety
Proper Usage
  • Voltage Matching: Ensure battery matches device requirements
  • Charging: Use dedicated LiPo chargers with correct voltage/current
  • Monitoring: Avoid overcharging/discharging and monitor temperature
Measurements for battery pack:
