Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery
Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery
Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery
Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery
Specifications
Certification :
CE, RoHS, MSDS, Un38.3
Brand Name :
RESKY
Model Number :
LP553450
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Electrolyte :
Li(Nicomn)O2
Rechargeable :
Chargeable
Nominal Capacity :
1100mAh
Weight :
9g
Warranty :
12months
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector :
Jst, Molex....
Specification :
5.5*34*50mm
Origin :
China
HS Code :
8507600090
Description
Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery
Product Specifications
Electrolyte Li(Nicomn)O2
Rechargeable Chargeable
Nominal Capacity 1100mAh
Weight 9g
Warranty 12 months
Shipping UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Connector Jst, Molex
Specification 5.5*34*50mm
Origin China
HS Code 8507600090
Technical Details
1 Batteries 3.7V 1100mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 1100mAh @ 0.2C Discharge
5 Charge current Standard: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours
Rapid charge: 2 hours
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 50±2mm
Width: 34±0.5mm
Thickness: 5.5±0.2mm
14 Drop Test 1 meter drop onto concrete twice - No fire, no leakage
15 Cycle time ≥500 cycles
Capacity Enhancement Methods
Material Improvement

Optimizing the Positive Electrode Material: Increasing nickel content in nickel-cobalt-manganese ternary materials can improve specific capacity. Research continues on lithium-rich manganese-based oxides for higher theoretical capacities.

Developing Advanced Negative Electrode Materials: Silicon-based materials offer significantly higher capacity than graphite. Composite materials and surface modification techniques help address volume expansion challenges.

Battery Structure Optimization

Increasing Electrode Thickness/Area: Carefully increasing electrode dimensions allows more active material while balancing size and internal resistance constraints.

Optimizing Internal Space Utilization: Compact designs with thinner separators maximize space for active materials, improving capacity without increasing external dimensions.

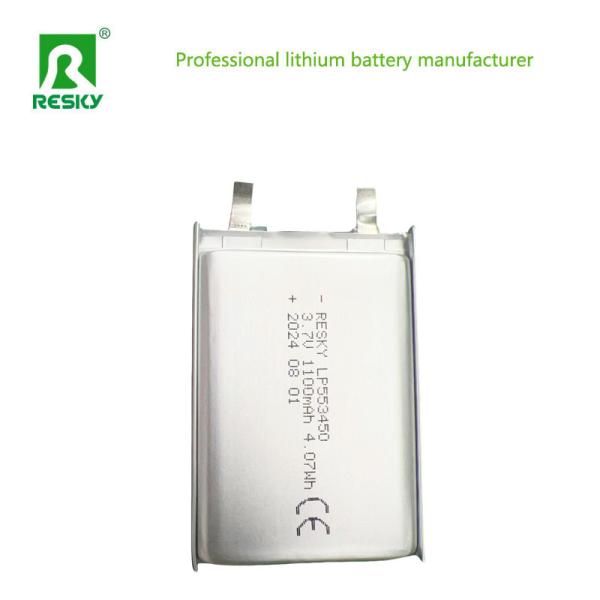

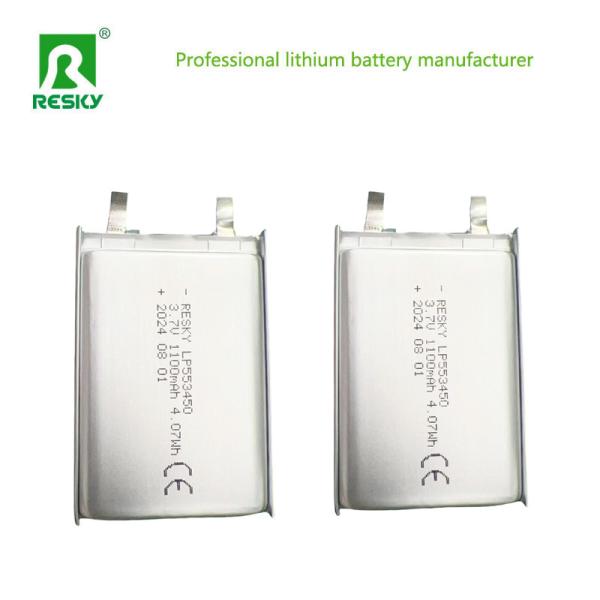

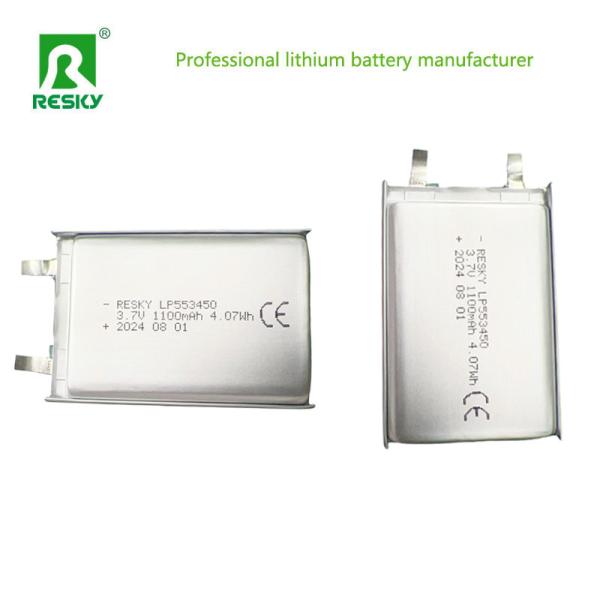

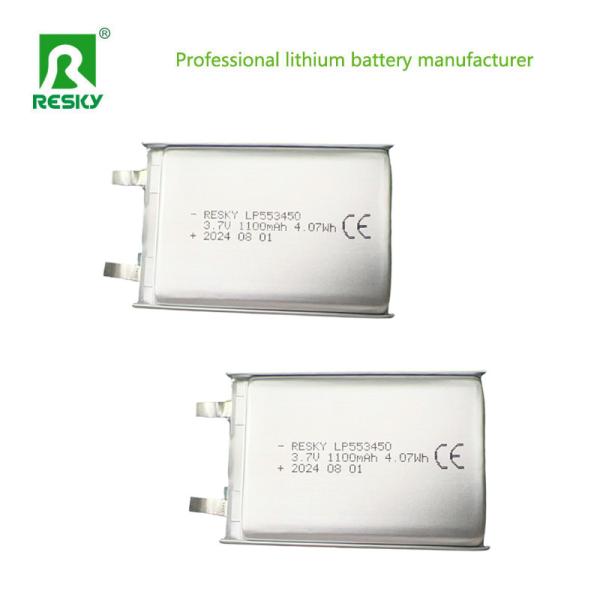

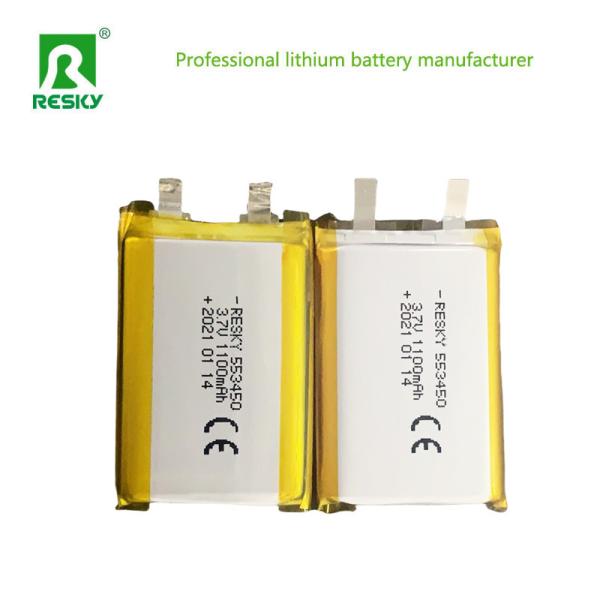

Product Images
Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery Rechargeable Lithium Polymer Battery Cell 523450 553450 603450 Lipo Battery
