Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device
Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device
Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device
Power Lithium Polymer Battery Cell 505060 2000mAh 7.4wh 3.7V For Medical Device
Specifications
Certification :
CE, RoHS, MSDS, Un38.3
Brand Name :
RESKY
Model Number :
LP505060
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Model NO. :
LP505060
Nominal Capacity :
2000mAh
Max Discharging Current :
1c
Weight :
25g
MOQ :
10PCS
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time :
3-7workdays
Connector :
Jst, Molex....
Original :
Shenzhen, China
Specification :
5*50*60mm
Description
Product Description

Power Lithium polymer battery cell 505060 2000mAh 7.4wh 3.7V for medical device

NO. Items Specifications
1 batteries 3.7v 2000mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 2000mAh 0.2C Discharge
5 Charge current
 Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time
 Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature Charging: 0 °C ~45 °C
Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:60±2mm (not including tabs)
Width:50±0.5mm
Thickness:5±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥500times

Advantages:

Long Cycle Life: These batteries typically have a longer lifecycle, withstanding numerous charge and discharge cycles before significant capacity degradation occurs.

Low Self-Discharge Rate: Lithium polymer batteries exhibit a low self-discharge rate, meaning they retain their charge better over time when not in use. This is particularly beneficial for devices that may be stored for extended periods.

Improved Safety: Advances in technology have led to the development of safer lithium polymer batteries with enhanced protection mechanisms against overcharging, overheating, and short-circuiting. Although safety concerns still exist, modern designs have significantly mitigated these risks.

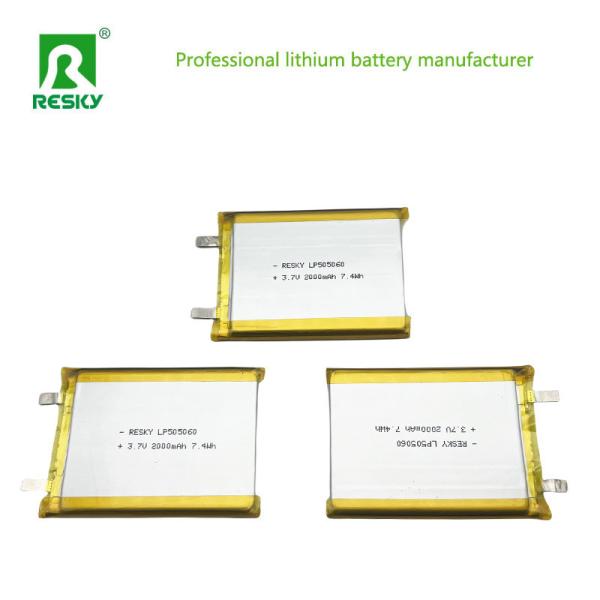

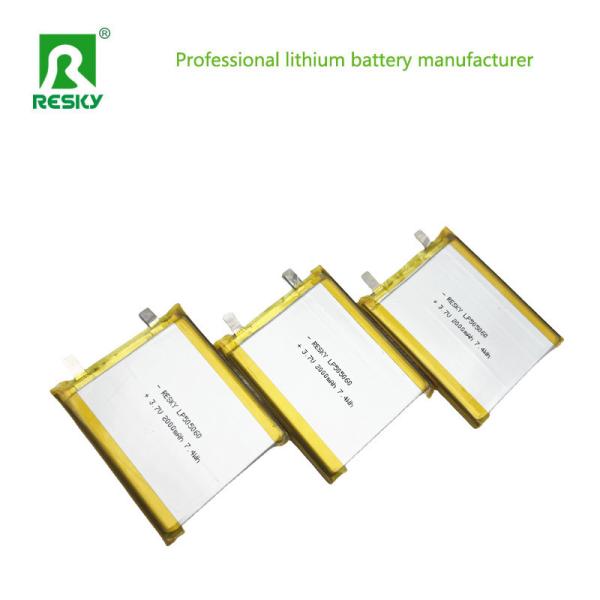

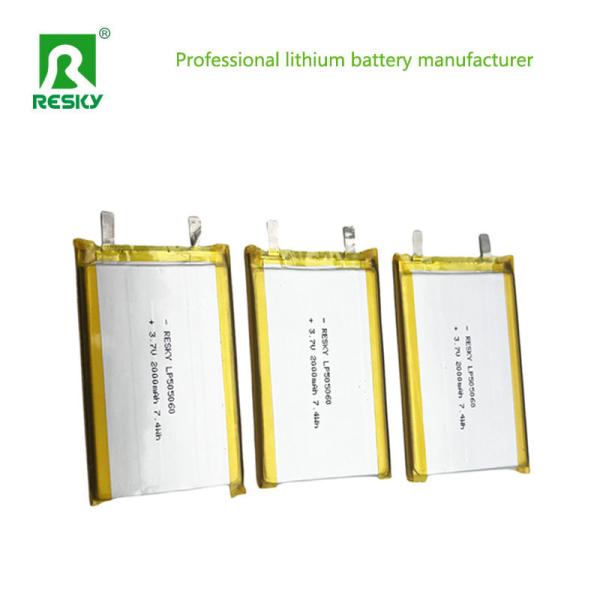

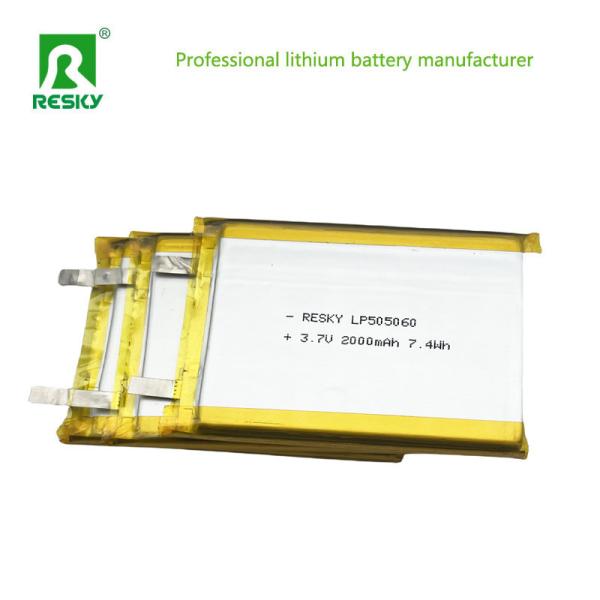

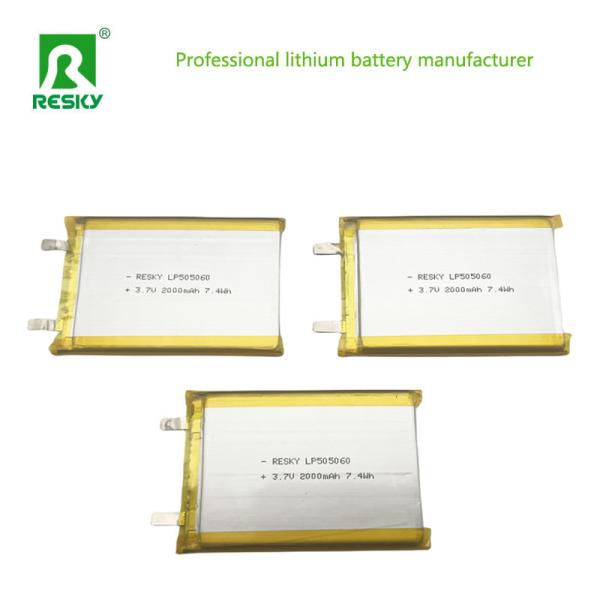

Pictures:
