600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers
600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers
600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers
600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers
Specifications
Brand Name :
RESKY
Model Number :
LP503040
Certification :
CE, RoHS, MSDS, Un38.3
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Model NO. :
LP503040
Nominal Capacity :
600mAh
Charging Current :
0.2c
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
11g
MOQ :
10PCS
Lead Time :
3-7workdays
Connector :
Jst, Molex....
Specification :
5*30*40mm
Description
503040 600mAh 3.7V Lithium Ion Polymer Battery

Compact lithium polymer battery cell designed for GPS trackers and other low-power electronic devices with high energy density and reliable performance.

Product Specifications
Item Specifications
Batteries 3.7V 600mAh LiPo Battery
Charge Voltage 4.2V
Nominal Voltage 3.7V
Nominal Capacity 600mAh (0.2C Discharge)
Charge Current Standard Charging: 0.5C
Rapid Charge: 1.0C
Standard Charging Method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time Standard Charging: 2.75 hours (Ref.)
Rapid Charge: 2 hours (Ref.)
Max Charge Current 0.5C
Max Discharge Current 1.0C
Discharge Cut-off Voltage 2.5V ±0.25V (0.2C)
Operating Temperature Charging: 0°C ~ 45°C
Discharging: 0°C ~ 45°C
Storage Temperature -10°C ~ +45°C
Dimensions Length: 40±2mm (excluding tabs)
Width: 30±0.5mm
Thickness: 5±0.2mm
Drop Test 1 meter drop onto concrete ground twice - No fire, no leakage
Cycle Time ≥500 cycles
Key Features
  • Compact & Lightweight: Small form factor ideal for space-constrained applications
  • High Nominal Voltage: 3.7V operating voltage compatible with most low-power circuits
  • High Energy Density: Ternary material system enables over 200Wh/kg energy density
  • Extended Cycle Life: Supports approximately 300 charge-discharge cycles
  • Enhanced Safety: Low risk of polymer electrolyte leakage with protection board
  • Stable Performance: Low internal resistance supports 0.3A-0.6A discharge current

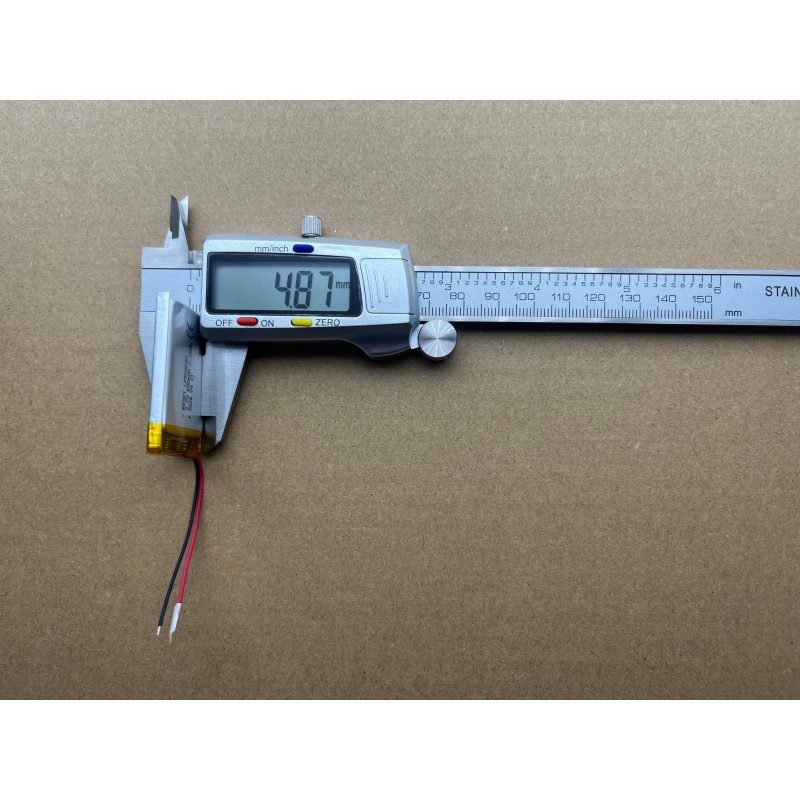

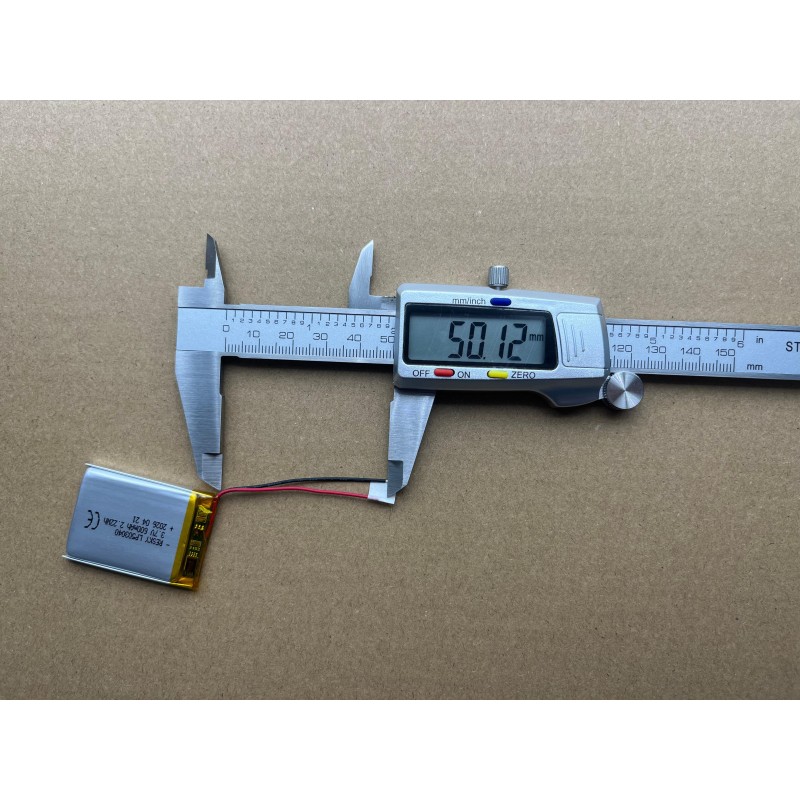

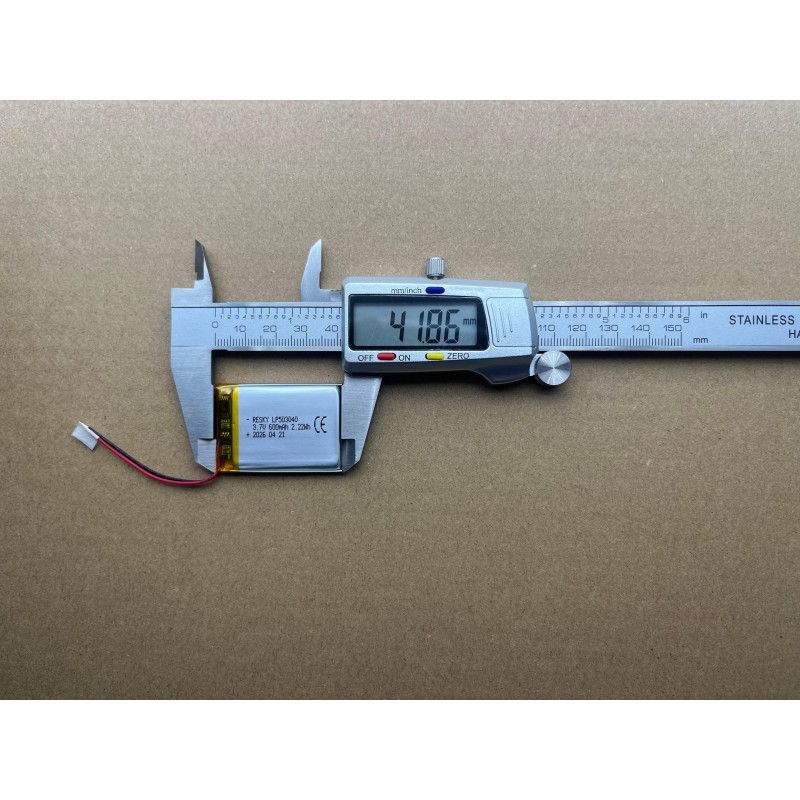

Product Measurements
600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers 600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers 600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers 600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers
Applications
  • Bluetooth headsets and TWS earphones
  • Smart wearable devices: smart bracelets, smart rings, health monitors
  • Miniature IoT devices: GPS trackers, shared bicycle lock modules, asset tags
  • Portable audio devices: small Bluetooth speakers, voice recorders
  • Medical electronic devices: thermometers, blood glucose meters, portable diagnostic instruments

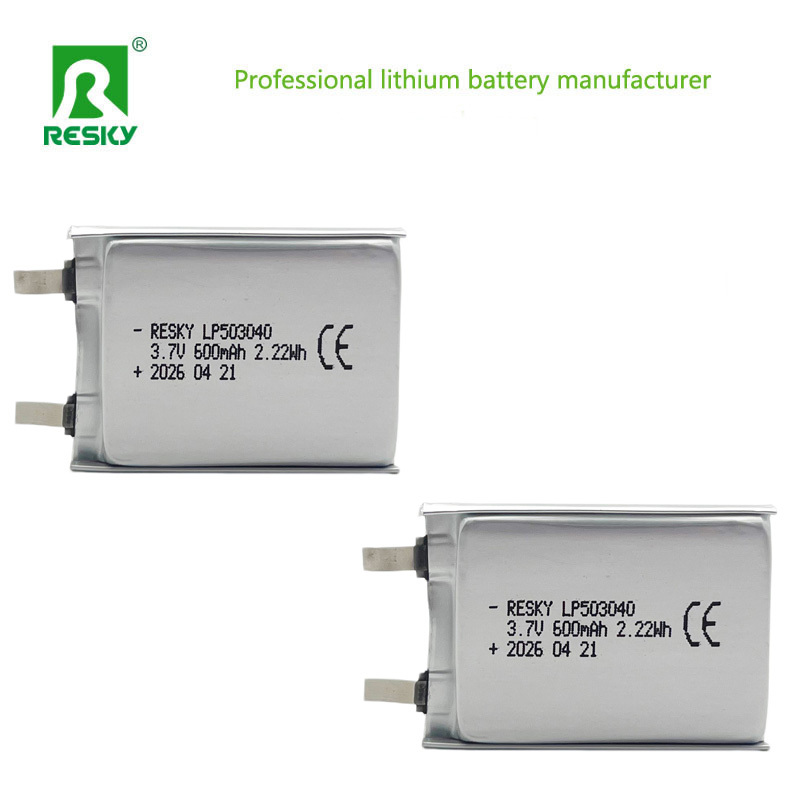

Product Images
600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers 600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers 600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers 600mAh 3.7V Lithium Polymer Battery - Compact 5x30x40mm LiPo for GPS Trackers
