Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands
Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands
Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands
Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands
Specifications
Brand Name :
RESKY
Model Number :
LP501030
Certification :
CE, RoHS, MSDS, Un38.3, IEC62133
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50000pcs/dat
Delivery Time :
7-10days
Packaging Details :
Paper box
Model NO. :
LP501030
Capacity :
120mAh
MOQ :
100PCS
Electrolyte :
Li(Nicomn)O2
Cycle Life :
500cycles
Warranty :
12months
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time :
Within 7-10 Workdays
Connector :
Jst, Molex....
Specification :
5*10*30mm
Description
Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell
Compact lithium polymer battery designed specifically for wristbands and other small wearable devices, featuring high energy density and reliable performance.
Technical Specifications
ParameterSpecification
Battery Type3.7V 120mAh LiPo Battery
Charge Voltage4.2V
Nominal Voltage3.7V
Nominal Capacity120mAh @ 0.2C Discharge
Charge CurrentStandard: 0.2C, Rapid: 1.0C
Standard Charging Method0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging TimeStandard: 2.75 hours, Rapid: 2 hours
Max Charge Current0.5C
Max Discharge Current1.0C
Discharge Cut-off Voltage2.5V±0.25V (0.2C)
Operating TemperatureCharging: 0°C~45°C, Discharging: 0°C~45°C
Storage Temperature-10°C~+45°C
DimensionsLength: 30±0.5mm, Width: 10±0.5mm, Thickness: 5±0.2mm
Drop TestDropped from 1m height twice onto concrete - no fire/leakage
Cycle Life≥500 cycles
Usage & Maintenance Guidelines
For use only with devices marked "3.7V Small Lithium Polymer Battery" (e.g., smart bracelets, micro sensors). Do not use with other battery specifications to prevent voltage mismatch.
Important: Inspect battery every 1-2 months. Discontinue use if you notice bulging or leakage (sticky white powder). For long-term storage, maintain charge at 3.7-3.8V (50%-60% capacity).
Storage Recommendations
  • Store at 10-25°C (optimal 20°C) with humidity <60%
  • Keep away from humid environments and heat sources
  • Use insulated containers away from metal objects
  • Wrap terminals when storing multiple batteries
Transportation Guidelines
  • Wrap terminals with insulating tape or caps
  • Use bubble wrap or foam bags for protection
  • For bulk transport, use anti-static packaging
  • Maintain temperature between 10-30°C during transport
Primary Applications
Portable Electronics
Bluetooth headsets, electronic scales, toys, and small consumer devices
Smart Wearable Devices
Children's smartwatches, wristbands, pedometers, and fitness trackers
Energy Storage & Monitoring
Dashcams, Bluetooth speakers, and anti-loss devices
Beauty & Health Appliances
LED beauty devices, curling irons, reading pens, and personal care devices
Medical & Industrial Instruments
Portable medical devices (thermometers, blood glucose meters) and industrial sensors

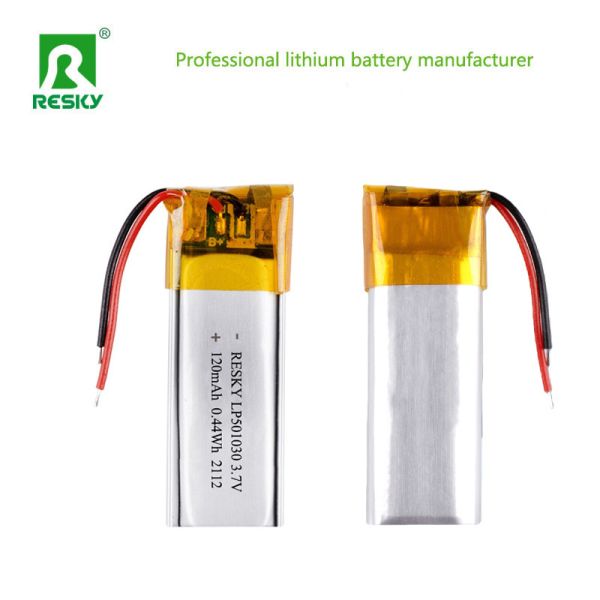

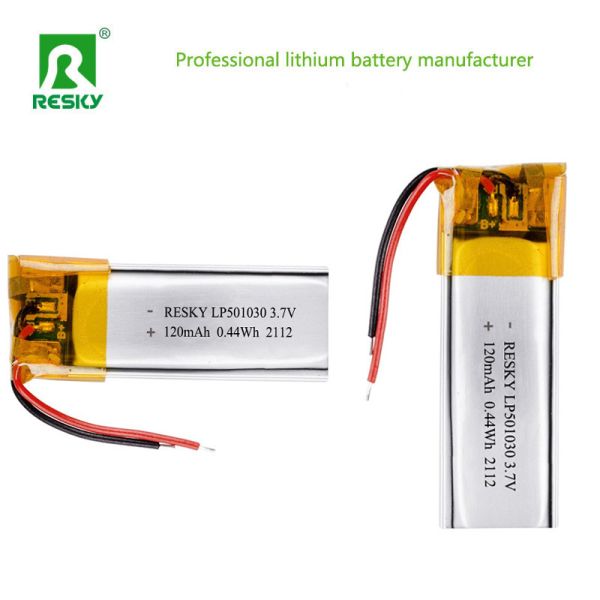

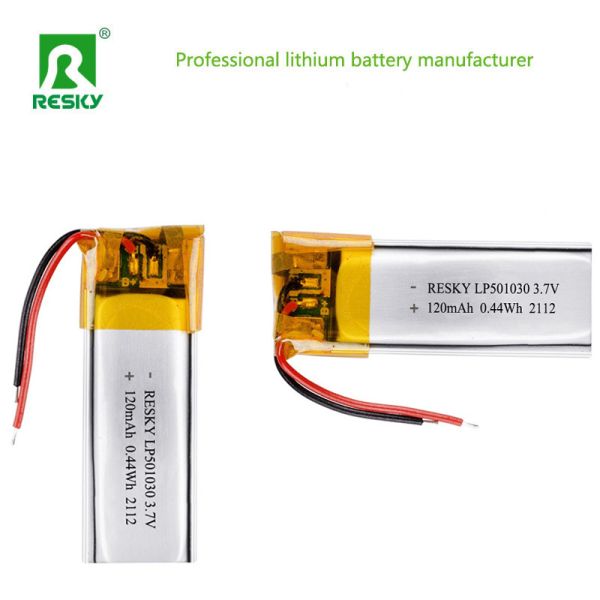

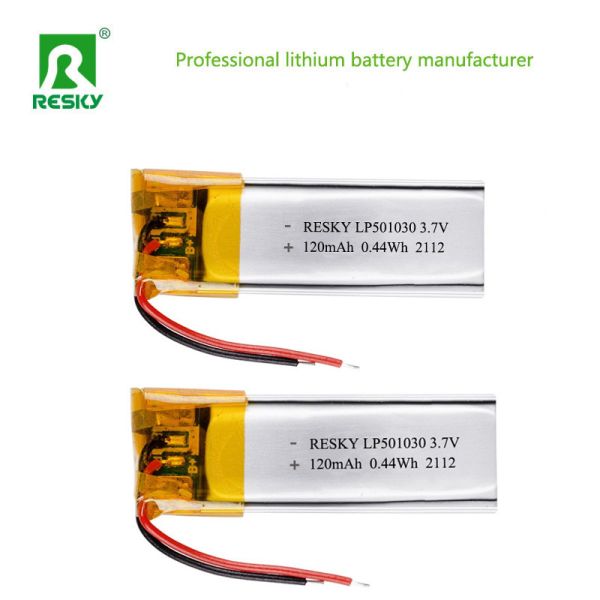

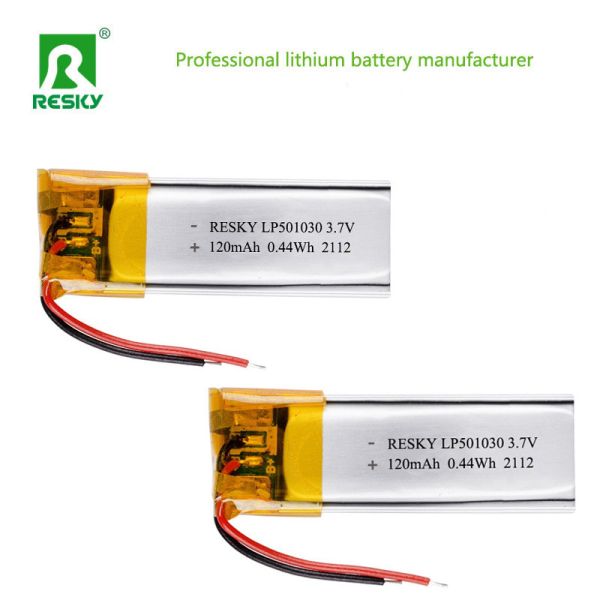

Product Images
Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands Li-Polymer Battery 501030 3.7V 120mAh Solar Lithium Ion Battery Cell For Wristbands
