Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Specifications
Brand Name :
RESKY
Model Number :
LP603450
Certification :
CE, RoHS, MSDS, Un38.3, IEC62133
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
7-10days
Packaging Details :
Standard exporting packages
Model NO. :
LP403450
Electrolyte :
Li(Nicomn)O2
Rechargeable :
Chargeable
Nominal Capacity :
800mAh
Cycle Life :
500cycles
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time :
Within 15 Workdays
Specification :
4*34*50mm
HS Code :
8507600090
Description
Rechargeable Lithium Polymer Battery Cell - 3.7V 403450 800mAh
High-performance lithium polymer battery cell designed for audiovisual devices and various smart applications. Features stable discharge, lightweight design, and reliable power output.
Technical Specifications
NO. Items Specifications
1 Batteries 3.7V 800mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 800mAh @ 0.2C discharge
5 Charge current Standard: 0.2C
Rapid charge: 1.0C
6 Standard charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours
Rapid charge: 2 hours
8 Max. charge current 0.5C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C~45°C
Discharging: 0°C~45°C
12 Storage temperature -10°C~+45°C
13 Dimension Length: 50±0.5mm
Width: 34±0.5mm
Thickness: 4±0.2mm
14 Drop test 1m drop onto concrete twice - no fire, no leakage
15 Cycle time ≥800 cycles
Applications
  • Smart wearables: Smartwatches (1.3"+ screens), multi-function health bracelets with continuous monitoring
  • Mini consumer electronics: Small action cameras, wireless microphones
  • IoT devices: Smart door lock backup power, outdoor water quality sensors
  • Medical devices: Portable blood pressure monitors, micro nebulizers
  • Small toys: Remote-controlled helicopters, smart programmable robots
Battery Technology Advantages
Ternary Lithium Polymer (NiCoMn/NiCoAl):
  • High energy density (450-550Wh/L)
  • Excellent low-temperature performance (-20°C operation)
  • Strong rate discharge capability (up to 5C peak)
Lithium Iron Phosphate (LiFePO4):
  • Enhanced safety (200-300°C thermal runaway)
  • Long cycle life (1000-2000 cycles)
  • Excellent high-temperature stability
Lithium Cobalt Oxide (LiCoO2):
  • Stable voltage platform (3.2-3.7V range)
  • High volumetric energy density (500-600Wh/L)
  • Excellent production consistency (±3% variation)
Lithium Manganese Oxide (LiMn2O4):
  • Cost-effective production
  • Outstanding rate performance (up to 10C discharge)
  • Good low-temperature performance
Product Images

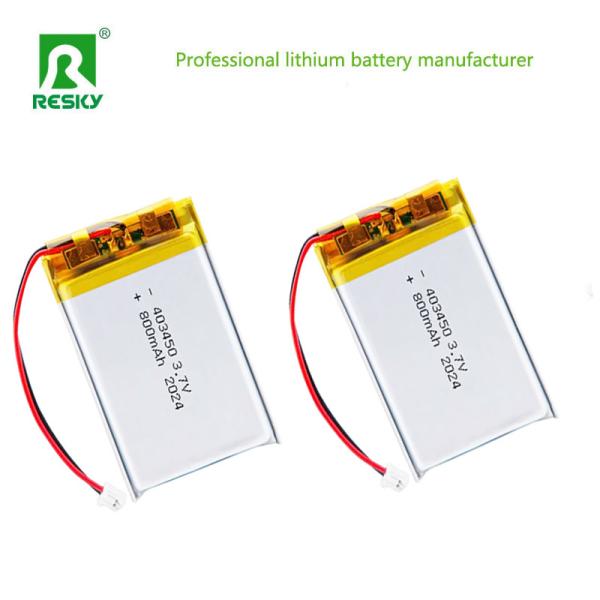

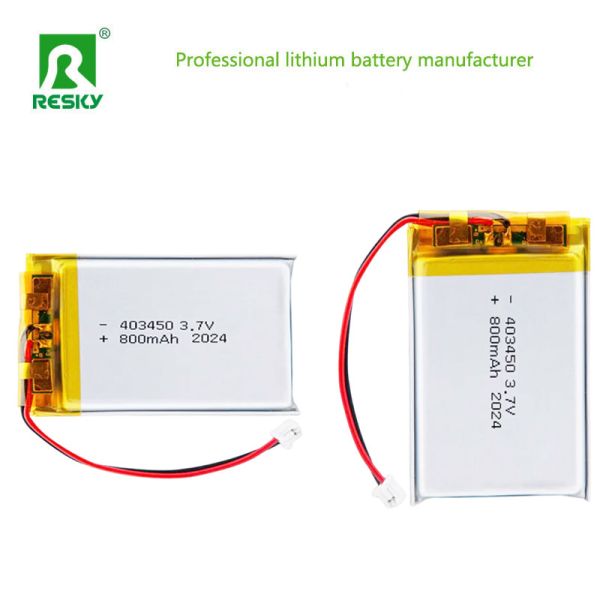

Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
Rechargeable lithium cell 3.7V 403450 800mAh lipo li-polymer battery cell For audiovisual devices
