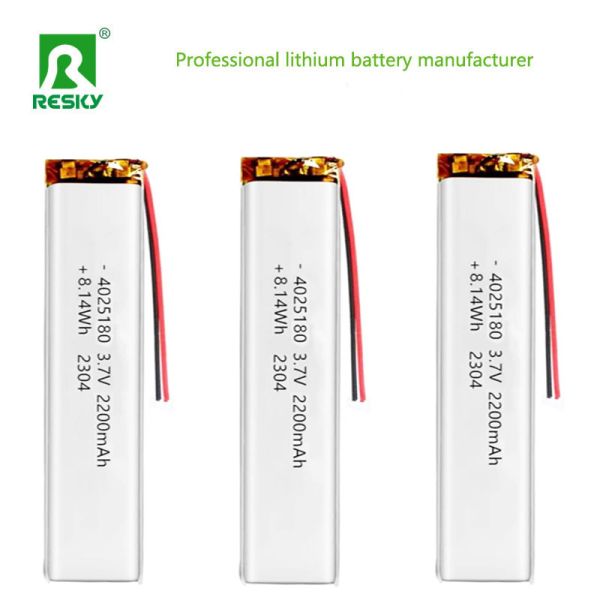

Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell
Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell
Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell
Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell
Specifications
Brand Name :
RESKY
Model Number :
LP4025180
Certification :
CE, RoHS, MSDS, Un38.3,IEC62133,ect
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Blister tray package with paper box
Model NO. :
LP4025180
Shape :
Square Battery
Electrolyte :
Li(Nicomn)O2
Nominal Capacity :
2200mAh
Weight :
23g
MOQ :
100PCS
Cycle Life :
500cycles
Warranty :
12months
Connector :
Jst, Molex....
Specification :
4*25*180mm
Description
Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell
High-performance lithium-ion polymer battery with ultra-thin design and reliable power delivery for compact electronic devices.
Specifications
NO. Items Specifications
1 Batteries 3.7v 2200mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 2200mAh 0.2C Discharge
5 Charge current Standard Charging:0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time Standard Charging:2.75hours(Ref.)
Rapid charge: 2hours(Ref.)
8 Max.charge current 1.0C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V(0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging:0°C ~45°C
12 Storage temperature -10°C~ +45°C
13 Dimension Length: 180±2mm (not including tabs)
Width: 25±0.5mm
Thickness:4±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 Cycle time ≥500times
Key Advantages
Size and Form Factor Advantages
Ultra-thin design with dimensions of 4.0mm (thickness) * 25mm (width) * 180mm (length), ideal for compact spaces in modern electronic devices.
  • Ultra-thin profile: At just 4.0mm thickness, significantly slimmer than traditional cylindrical lithium batteries
  • Space-saving: Fits into thickness-sensitive devices like laptop keyboards, smart wearables, and ultra-thin tablets
  • Flexible placement: 180mm length allows installation in narrow, unused device areas
Electrochemical Performance
Optimized for compatibility with mainstream consumer electronics and reliable power delivery.
  • Standard voltage: 3.7V matches most consumer electronics requirements
  • Balanced capacity: 2200mAh (8.14Wh) provides 1-2 days typical use for many devices
  • Efficient charging: Supports 0.5C-1C charge rates with 300-500 cycle lifespan
Safety and Reliability
Engineered for safe operation in various environmental conditions.
  • Robust construction: Aluminum-plastic film encapsulation prevents leaks and explosions
  • Wide temperature range: Operates from -10°C to 60°C for indoor/outdoor use
  • Impact resistant: Passes drop tests without fire or leakage
Design Flexibility
Customizable solutions to meet specific device requirements.
  • Adjustable dimensions: Thickness and length can be fine-tuned for specific applications
  • Integrated protection: Optional protection board prevents overcharging and short circuits
Product Images
Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell Lithium Ion Polymer Battery 4025180 3.7v 2200mAh 8.14wh Rechargeable Li-ion Battery Cell
