Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices
Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices
Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices
Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices
Specifications
Brand Name :
RESKY
Model Number :
LP802035
Certification :
CE, RoHS, MSDS,Un38.3,IEC62133
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Blister tray package with paper box
Model NO. :
LP802035
Electrolyte :
Li(Nicomn)O2
Rechargeable :
Chargeable
Nominal Capacity :
500mAh
Charging Current :
0.2c
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
7g
MOQ :
100PCS
Warranty :
1year
Description
Product Description

Lithium Polymer Battery Cell 802035 3.7V 500mAh 1.85wh Rechargeable Batteries For Learning Devices​

NO. Items Specifications
1 batteries 3.7v 500mah lipo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 500mAh 0.2C Discharge
5 Charge current
 Standard Charging:0.2C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7 Charging time

Standard Charging:2.75hours(Ref.

)Rapid charge: 2hours(Ref.)
8 Max.charge current 0.5C
9 Max.discharge current 1.0C
10 Discharge cut-off voltage 2.5V0.25V(0.2C)
11 Operating temperature

Charging: 0 °C ~45 °C

Discharging:0 °C ~45 °C
12 Storage temperature -10°C~ +45 °C
13 Dimension Length:35±0.5mm (not including tabs)
Width:20±0.5mm
Thickness:8±0.2mm
14 Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15 cycle time ≥800times

Product features:


1. High security performance


2. Thin thickness, adjustable thickness


3. Lightweight


4. High energy density, compared to other types of lithium batteries, the same size capacity can be achieved


5. Low internal resistance and long cycle life


6. Flexible size available


7. Good discharge performance

Application areas:

Bluetooth earphones, smart wearables, GPS navigation devices, POS machines, power banks, learning devices, tablets, car navigation, MP3,MP4,MP5, Card insertion speaker, wireless mouse, Xiaomi display screen PSP built-in battery, Apple peripheral power supply, tablet computer, mobile DVD, laptop battery, wireless monitoring device, medical equipment, various instruments and meters, LED lamps, traffic signs, portable small appliances, various DIY instruments and meters, metal detectors, and other digital battery products.

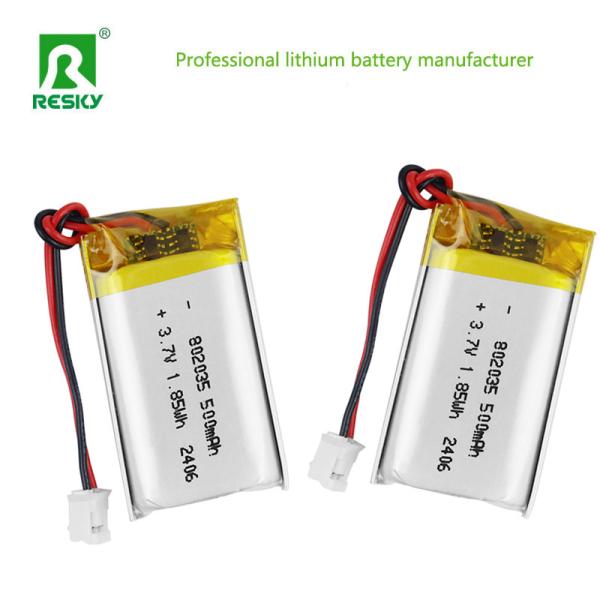

Product pictures:
