Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack
Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack
Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack
Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack
Specifications
Brand Name :
RESKY
Model Number :
RESKY LP6060100
Certification :
MSDS, Un38.3
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
7-10days
Packaging Details :
Paper box
Model NO. :
LP6060100
Nominal Capacity :
5000mAh
Continuous Discharging Current :
0.5c
Max Discharging Current :
1c
Weight :
65g
MOQ :
10PCS
Cycle Life :
500cycles
Specification :
6*60*100mm
HS Code :
8507600090
Description
Product Overview
Rechargeable Lithium Battery 6060100 3.7V 5000mAh 18.5Wh Power Li-polymer Battery Pack
Technical Specifications
Item Specification
Battery Type 3.7V 5000mAh Li-polymer
Charge Voltage 4.2V
Nominal Voltage 3.7V
Nominal Capacity 5000mAh (0.2C Discharge)
Charge Current Standard: 0.5C
Rapid: 1.0C
Standard Charging Method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
Charging Time Standard: 2.75 hours
Rapid: 2 hours
Max Charge Current 1.0C
Max Discharge Current 1.0C
Discharge Cut-off Voltage 2.5V ±0.25V (0.2C)
Operating Temperature Charging: 0°C ~ 45°C
Discharging: 0°C ~ 45°C
Storage Temperature -10°C ~ +45°C
Dimensions Length: 100±2mm
Width: 60±0.5mm
Thickness: 6±0.5mm
Drop Test 1 meter drop onto concrete ground twice - No fire, no leakage
Cycle Life ≥500 cycles
Electrical Parameters
  • Nominal Voltage: 3.7V (Standard Lithium-ion Battery Voltage Platform)
  • Charging Limit Voltage: 4.2V
  • Discharge Cut-off Voltage: 2.5-3.0V
  • Capacity: 5000mAh (18.5Wh Energy)
  • Cycle Life: ≥500 cycles
  • Self-Discharge Rate: Low (approximately 1-2% per month), excellent storage performance
Structural Features
  • Ternary material (NCM/NCA) positive electrode + lithium negative electrode system
  • Polymer electrolyte replaces traditional liquid electrolyte, improving safety
  • Soft-pack packaging, slightly flexible, adaptable to various shape requirements
  • Built-in PCM protection board to prevent overcharge, over-discharge, and overcurrent
Main Advantages
  • High Energy Density (Most Significant Advantage)
  • Excellent Low-Temperature Performance
  • Fast Charge/Discharge Capability
  • Lightweight and Flexible Design
  • Long Cycle Life and Stability
Applications
Consumer Electronics
  • Smartphones, Tablets, Laptops
  • MP3/MP4 Players, E-readers, GPS Navigation Devices
  • Power Banks (18.5Wh High Energy Output)
Small Power Tools
  • Cordless Vacuum Cleaners, Electric Toothbrushes, Garden Pruners
  • Small Drills, Screwdrivers, and other Portable Tools
Medical Devices
  • Portable Monitors, Insulin Pumps, Hearing Aids
  • Portable Physiotherapy Equipment, Mobile Medical Testing Equipment
Other Innovative Applications
  • Smart Home Devices: Cameras, Sensors, Smart Locks
  • Internet of Things (IoT) Devices: Providing Long Battery Life
  • Personal Transportation Vehicles such as Electric Bicycles and Electric Scooters
  • Emergency Lighting, Outdoor Adventure Equipment

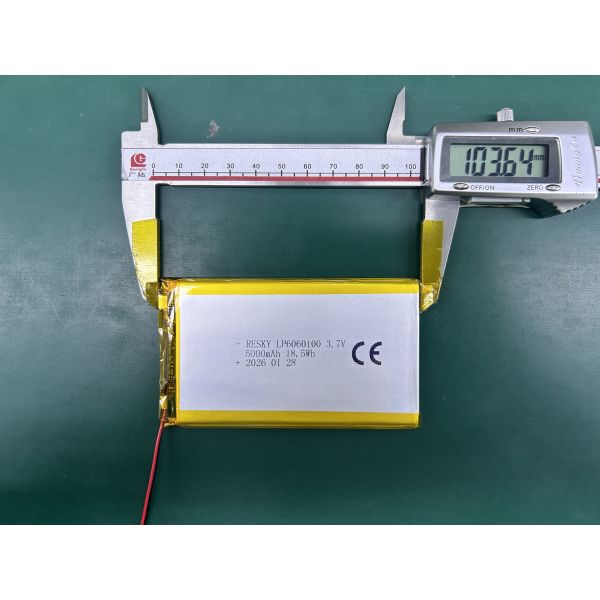

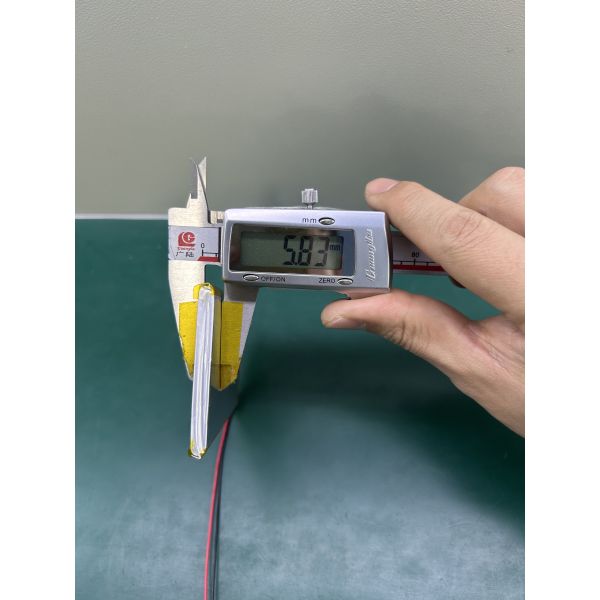

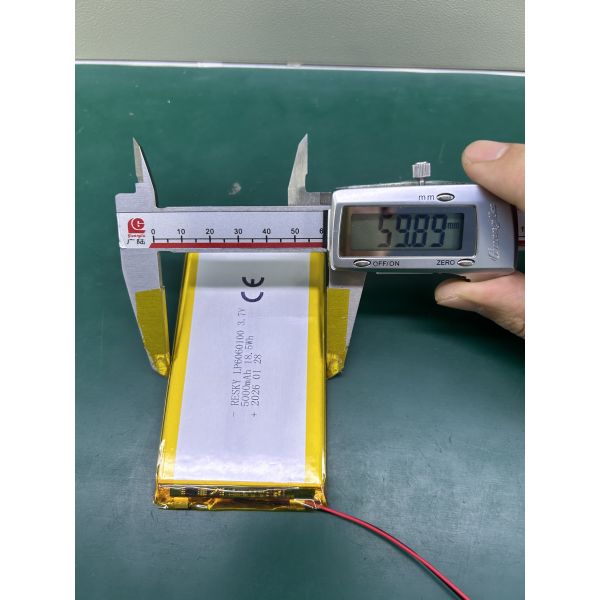

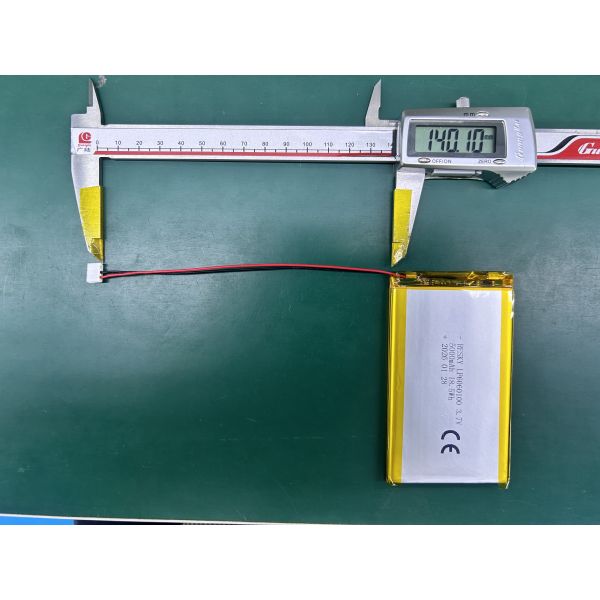

Measurement of battery size:

Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack

Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack

Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack

Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack

Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack

Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack

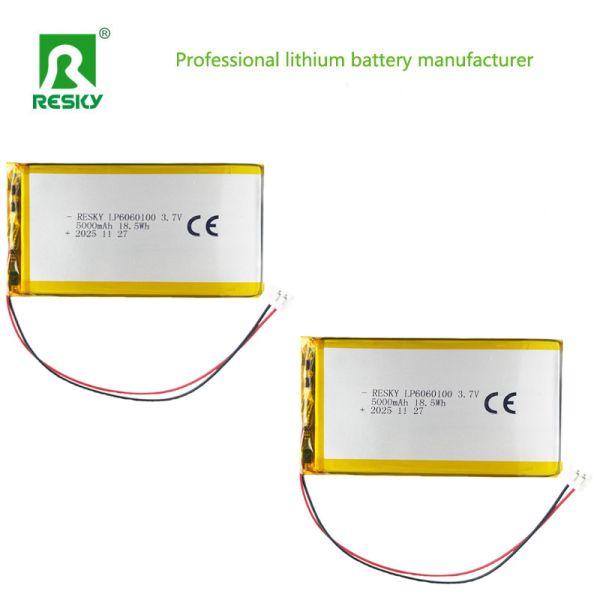

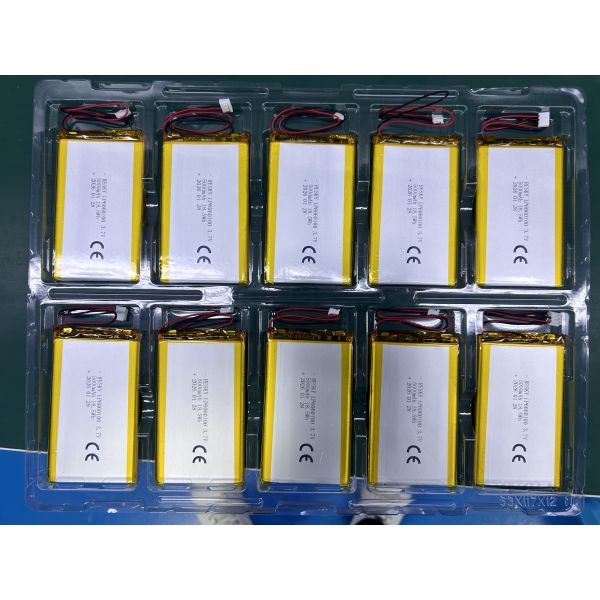

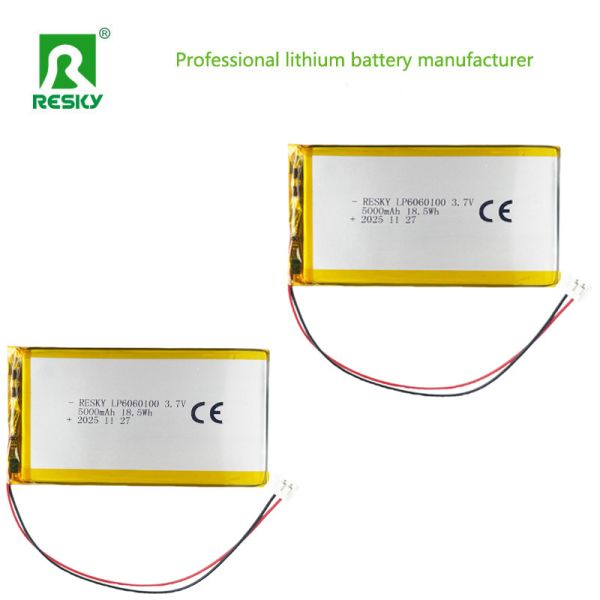

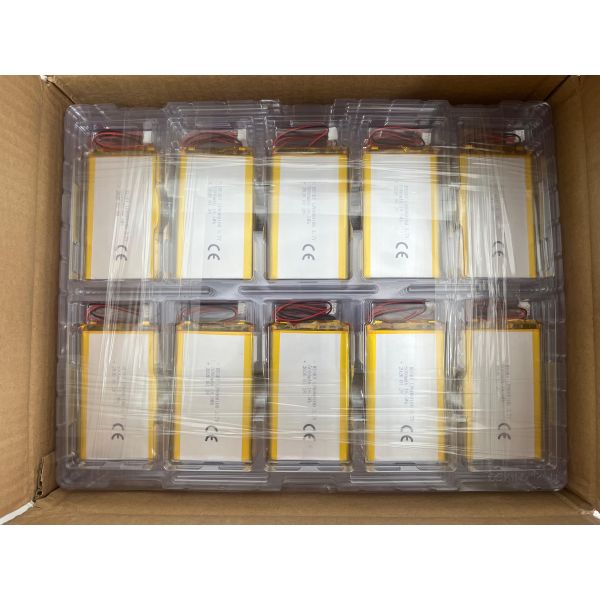

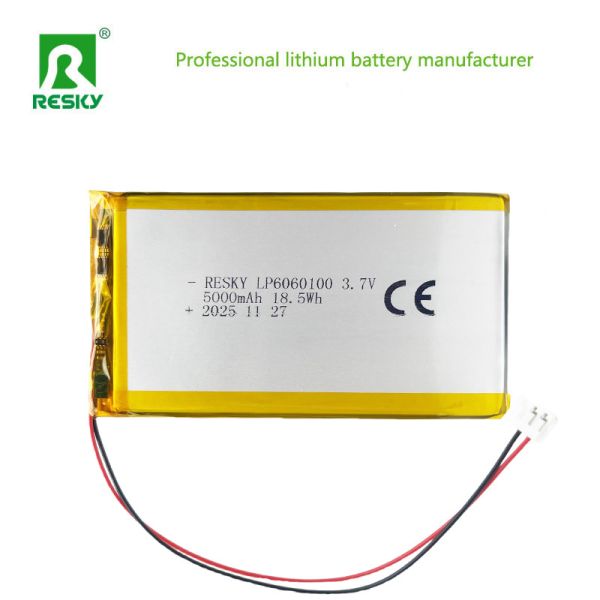

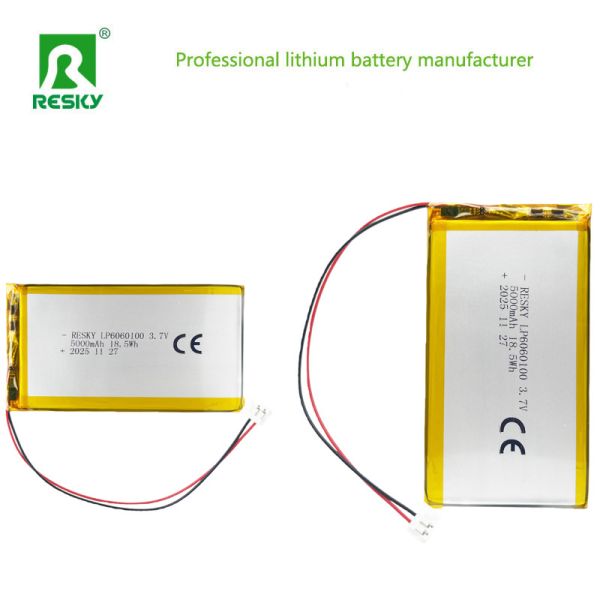

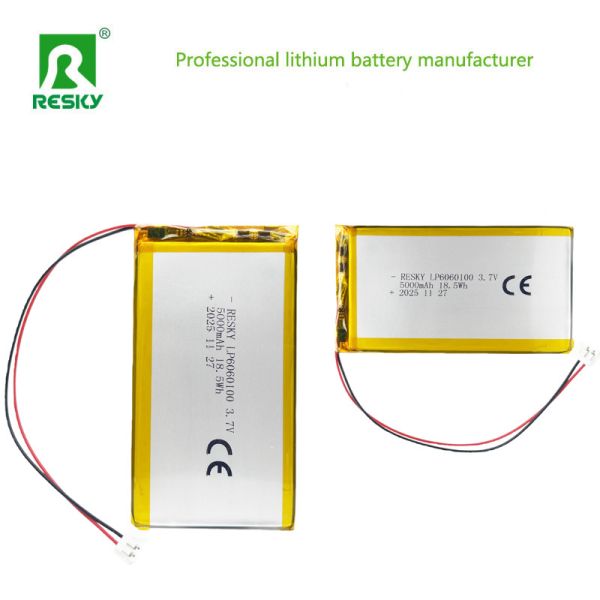

Product Images
Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack Rechargeable Lithium Battery 6060100 3.7v 5000mAh 18.5wh Power Li-polymer Battery Pack
