Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell
Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell
Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell
Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell
Specifications
Brand Name :
RESKY
Model Number :
LP501530
Certification :
MSDS, Un38.3
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50000pcs/dat
Delivery Time :
7-10days
Packaging Details :
Paper box
Model NO. :
LP501530
Capacity :
200mAh
MOQ :
100PCS
Electrolyte :
Li(Nicomn)O2
Cycle Life :
500cycles
Warranty :
12months
Shipping :
UPS, DHL, FedEx, TNT, by Air, by Sea, Special Line
Lead Time :
Within 5-7Workdays
Connector :
Jst, Molex....
Specification :
5*15*30mm
Description
Lifepo4 Batteries 501530 200mAh 3.7v 0.74wh Small Rechargeable Power Lipo Li-polymer Battery Cell
Technical Specifications
NO. Items Specifications
1 Batteries 3.7V 200mAh LiPo battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 200mAh @ 0.2C Discharge
5 Charge current Standard Charging: 0.2C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours (Ref.)
Rapid: 2 hours (Ref.)
8 Max. charge current 0.5C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 30±0.5mm
Width: 15±0.5mm
Thickness: 5±0.2mm
14 Drop Test Dropped from 1m height twice onto concrete - no fire, no leakage
15 Cycle time ≥500 cycles

Features:


High Energy Density: Compared to traditional nickel-cadmium or nickel-metal hydride batteries, it offers greater capacity within the same volume, making it suitable for weight- and space-sensitive applications.


Safe and Reliable: Utilizes a flexible packaging design; internal hazards are detected through external deformation, preventing explosion risks.


Long Cycle Life: Under normal charge and discharge conditions, it can cycle over 500 times with low internal resistance and stable discharge performance.


Fast Charging: Supports fast charging technology; a 4.2V constant current constant voltage charger can fully charge it in 1-2 hours.


Environmentally Friendly: Free of harmful substances such as lead and mercury, meeting environmental standards.


Applications:


Consumer Electronics: Suitable for small devices such as Bluetooth headsets, smartwatches, and portable speakers due to its slim design and high capacity.


Medical Devices: Used in portable medical instruments such as blood glucose meters and blood pressure monitors, relying on its safety and long lifespan.


Industrial Applications: Used as a power source in sensors, remote controls, or small drones, benefiting from its stable discharge and vibration resistance.


Customization Needs: This model offers flexible dimensions, allowing it to adapt to specific device designs and making it suitable for scenarios requiring customized battery solutions.

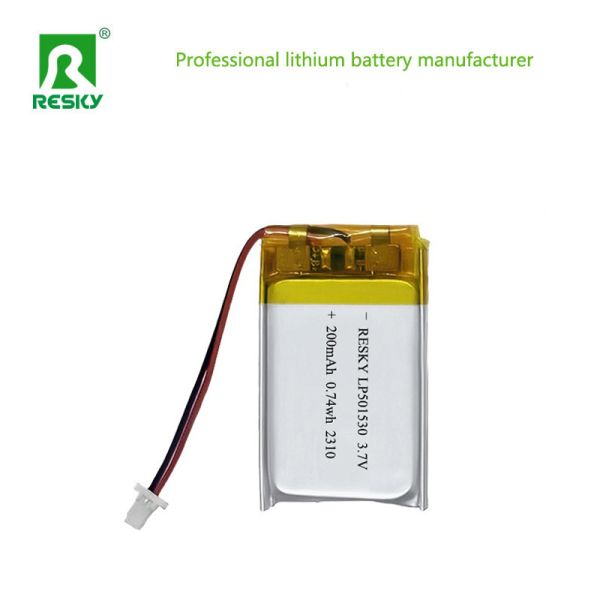

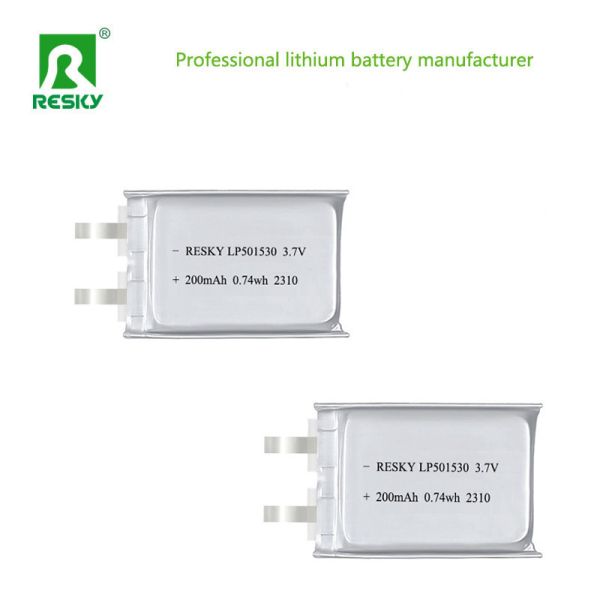

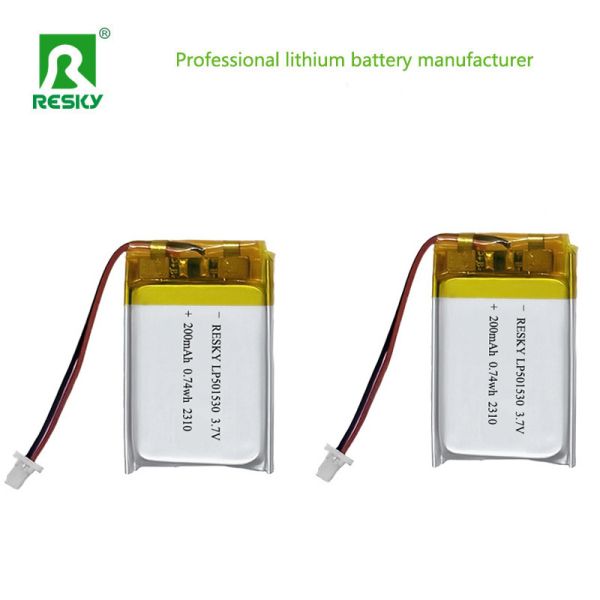

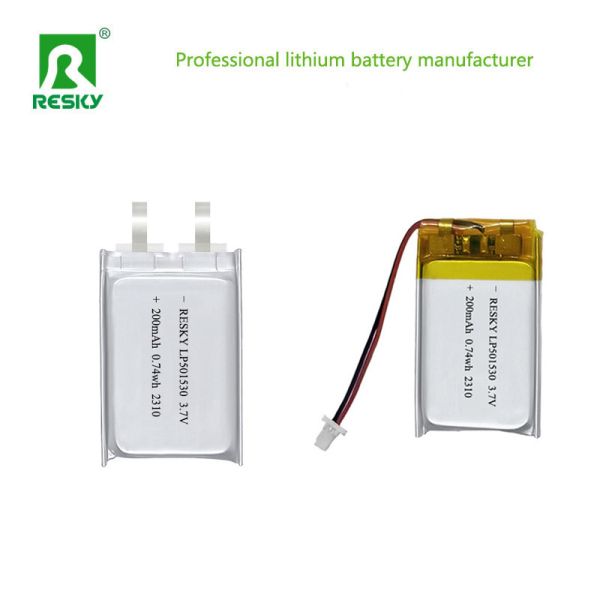

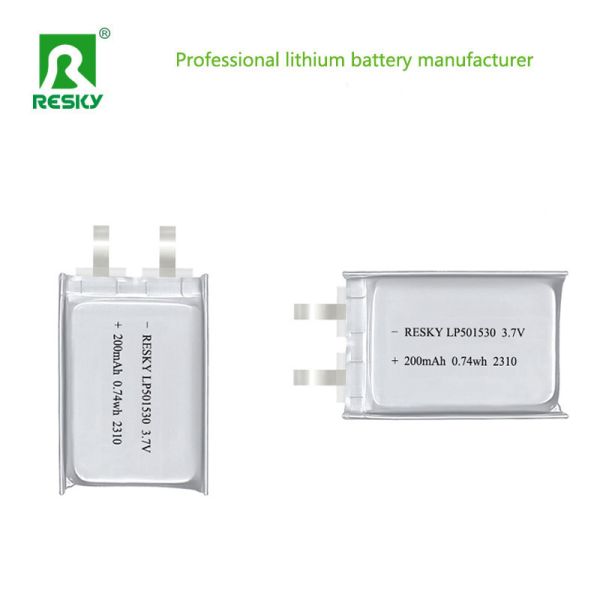

Product Images

Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell

Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell

Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell

Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell

Lifepo4 Batteries 501530 200mAh 3.7v Small Rechargeable Power Lipo Li-polymer Battery Cell
