Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack
Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack
Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack
Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack
Specifications
Brand Name :
RESKY
Model Number :
LP854565
Certification :
CE, RoHS, MSDS, Un38.3,IEC62133,ECT
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
Western Union,T/T
Supply Ability :
50000pcs/day
Delivery Time :
7-10days
Packaging Details :
Paper box
Electrolyte :
Li(Nicomn)O2
Rechargeable :
Chargeable
Nominal Capacity :
3400mAh
Weight :
65g
Cycle Life :
500cycles
Warranty :
12months
Connector :
Jst, Molex....
Original :
Shenzhen, China
OEM Service :
Yes
HS Code :
8507600090
Description
Power Lithium Cell 854565 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack
Product Specifications
NO. Items Specifications
1 Batteries 3.7V 3400mAh Lipo Battery
2 Charge voltage 4.2V
3 Nominal voltage 3.7V
4 Nominal capacity 3400mAh @ 0.2C Discharge
5 Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
6 Standard Charging method 0.5C CC charge to 4.2V, then CV charge till current ≤0.05C
7 Charging time Standard: 2.75 hours (Ref.)
Rapid: 2 hours (Ref.)
8 Max. charge current 1.0C
9 Max. discharge current 1.0C
10 Discharge cut-off voltage 2.5V±0.25V (0.2C)
11 Operating temperature Charging: 0°C ~45°C
Discharging: 0°C ~45°C
12 Storage temperature -10°C ~ +45°C
13 Dimension Length: 65±2mm (excl. tabs)
Width: 45±0.5mm
Thickness: 8.5±0.5mm
14 Drop Test 1m drop onto concrete twice - No fire, no leakage
15 Cycle time ≥500 cycles
Safety Features
  • Energy Density: High capacity in compact size for lightweight applications
  • Dual IC Protection: Prevents overcharging, over-discharging, and short-circuiting
  • Separator Adhesion: Prevents internal shorts from physical impacts
  • Temperature Management: Designed to prevent thermal runaway
  • Overcharge/Discharge Protection: Circuits monitor and disconnect unsafe conditions
  • Short-Circuit Protection: Includes fuse links and current-limiting devices
  • Certified Compliance: Meets international safety standards (IEC/UL)
  • Safe Storage/Transport: Requires cool, dry conditions per regulations

Applications:

1.Mid-sized consumer electronics devices

10-12-inch tablets (entry-level):

Mid- to high-end handheld game consoles:

2.IoT and industrial portable devices

4G/5G smart gateways (small and medium):

Portable testing instruments:

Industrial remote controls (large equipment):

3.Outdoor and emergency equipment

Small consumer drones (entry-level):

Outdoor Bluetooth speakers (mid-sized):

Emergency power supplies (mini):

4.Medical and healthcare equipment

Portable ultrasound diagnostic equipment (home/basic):

Small home oxygen concentrators:

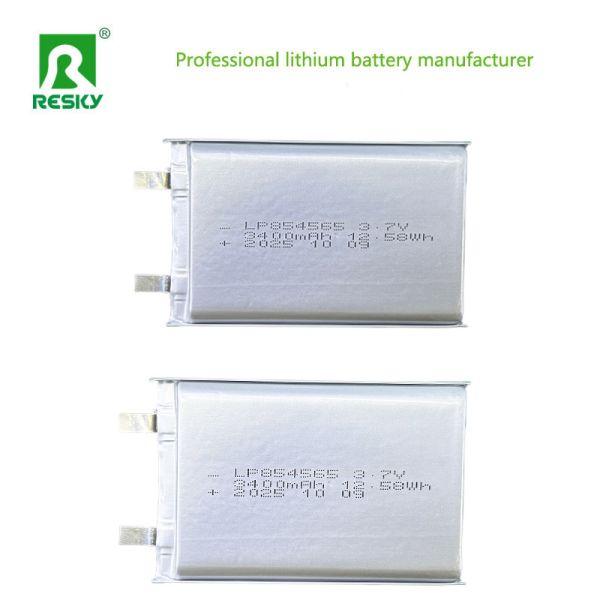

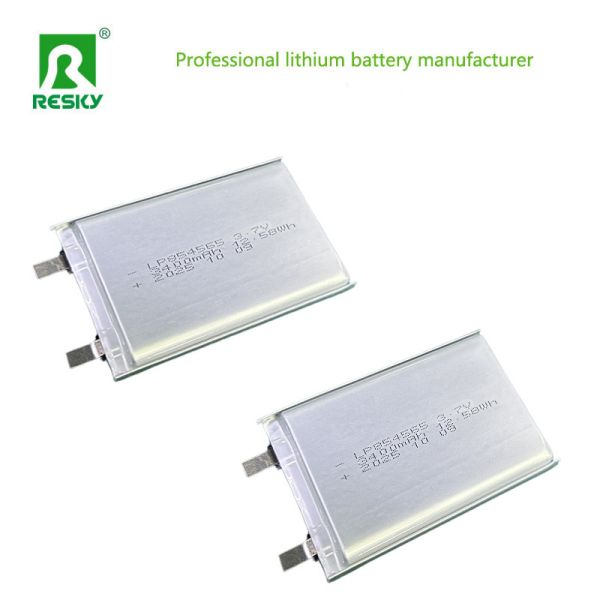

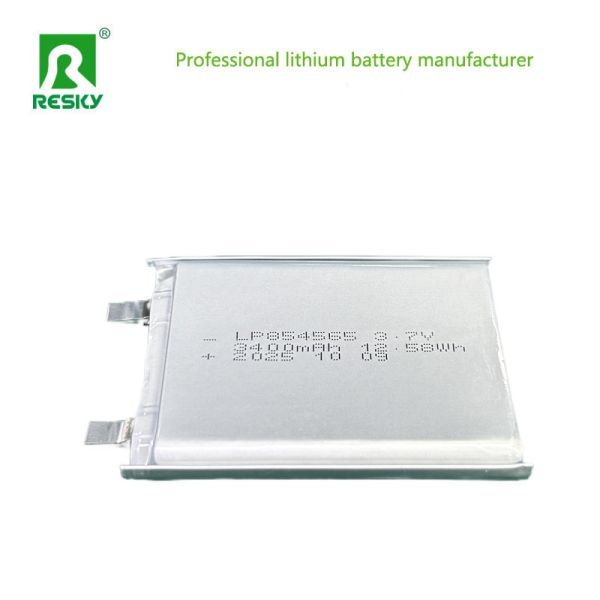

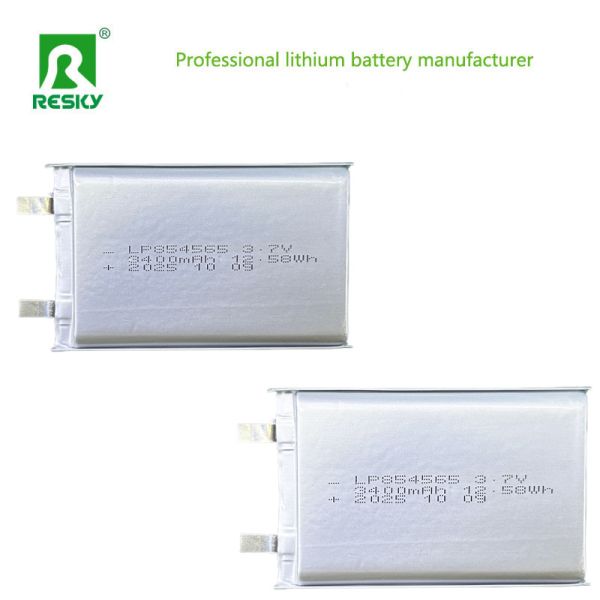

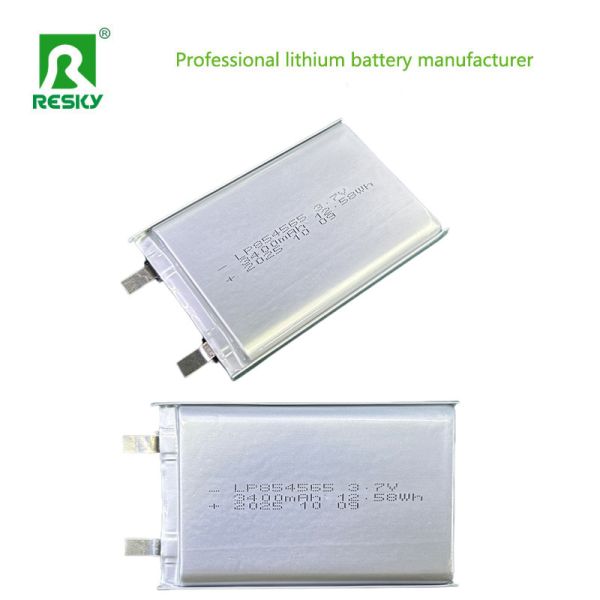

Product Images

Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack

Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack

Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack

Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack

Power Lithium Cell 3.7V 3400mAh 12.58wh Solar Lithium Ion Polymer Battery Pack
