Semi-solid Lithium Battery 3.9V 16000mAh 300wh/kg High Voltage LiPo Battery for RC Drones and UAVs
Semi-solid Lithium Battery 3.9V 16000mAh 300wh/kg High Voltage LiPo Battery for RC Drones and UAVs
Semi-solid Lithium Battery 3.9V 16000mAh 300wh/kg High Voltage LiPo Battery for RC Drones and UAVs
Semi-solid Lithium Battery 3.9V 16000mAh 300wh/kg High Voltage LiPo Battery for RC Drones and UAVs
Specifications
Brand Name :
RESKY
Model Number :
LP7974173
Certification :
CE, RoHS, MSDS, Un38.3
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10000PCS/Day
Delivery Time :
3-7days
Packaging Details :
Paper box
Rated Capacity :
16000mAh
Standard Voltage :
3.9V
Usage :
Remote Control Boat, Remote Control Plane, Remote Control Car, RC Uav, RC Drone
Weight :
215g
Connector :
Xt60, Xt90, T-Type, Anderson, Bullet
OEM Service :
Yes
Specification :
8*74*173mm
HS Code :
8507600090
Energy density :
300wh/kg
Description
Semi-solid Lithium Battery Cell 7974173 3.9V 16000mAh 16Ah 300wh/kg High Voltage Lipo Batteries
High-performance semi-solid lithium battery cell designed for demanding applications with superior energy density and safety features.
Product Specifications
Item Specifications
Batteries 3.9V 16000mAh LiPo battery
Charge voltage 4.45V
Nominal voltage 3.0V
Nominal capacity 16000mAh 10C Discharge
Charge current Standard Charging: 0.5C
Rapid charge: 1C
Standard Charging method 0.5C CC(constant current) charge to 4.45V, then CV(constant voltage 4.45V) charge till charge current decline to ≤0.05C
Charging time Standard Charging: 2.75 hours (Ref.)
Rapid charge: 2 hours (Ref.)
Max. charge current 1C
Max. discharge current 20.0C
Discharge cut-off voltage 3.0V
Operating temperature 10℃~+45℃(Charging)
-10℃~+60℃(Discharging)
Storage temperature -10°C ~ +45°C
Dimension Length: 173±2mm (not including tabs)
Width: 74±0.5mm
Thickness: 8±0.2mm
Drop Test The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
Main Advantages
  • High Energy Density and Significantly Extended Battery Life
    Energy Density: 320-400 Wh/kg (Traditional lithium polymer batteries: approximately 180-220 Wh/kg). For the same battery life: Battery weight can be reduced by 30%+, allowing for a larger payload.
  • Significantly Improved Safety
    Gel Electrolyte (Semi-Solid): Electrolyte content is only 5-10%, making it less prone to leakage and flammability. Needle Penetration/Extrusion: No open flame, no explosion, thermal stability ≥300℃
  • Wide Temperature Range
    Operating Range: -30℃～+80℃, stable for high-altitude/winter operations. -20℃ Environment: Capacity retention ≥85% (Traditional liquid lithium batteries: only 50-60%). Winter Battery Life Decrease: Reduced from 35% to ≤12%, making it more practical in northern/high-altitude regions.
  • Longer Cycle Life and Lower Overall Cost
    Cycle Count: 1200-2000. Low self-discharge and minimal degradation: More stable for long-term storage, suitable for long-endurance, high-frequency operations.
  • Moderate Discharge Rate
    Continuous discharge: 5-10C, balancing long-term cruise and short-term high-maneuverability (climbing, wind resistance). Low internal resistance and low heat generation: Low temperature rise during long-term flight, further improving safety and lifespan.
  • Soft-pack Polymer Form
    Aluminum-plastic film soft pack: Customizable to fit the fuselage space and optimize the center of gravity. Thin design: 20-30% smaller volume than traditional lithium batteries of the same energy.

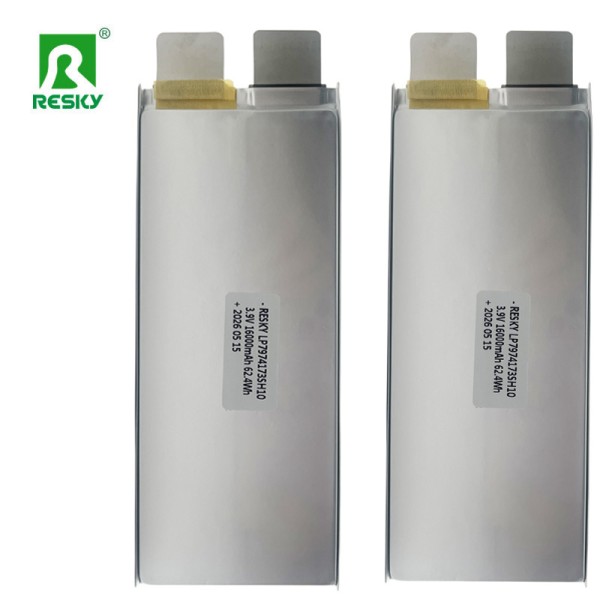

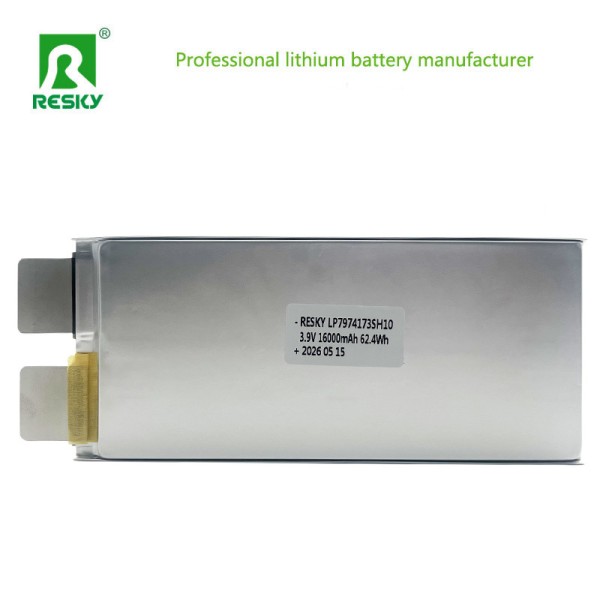

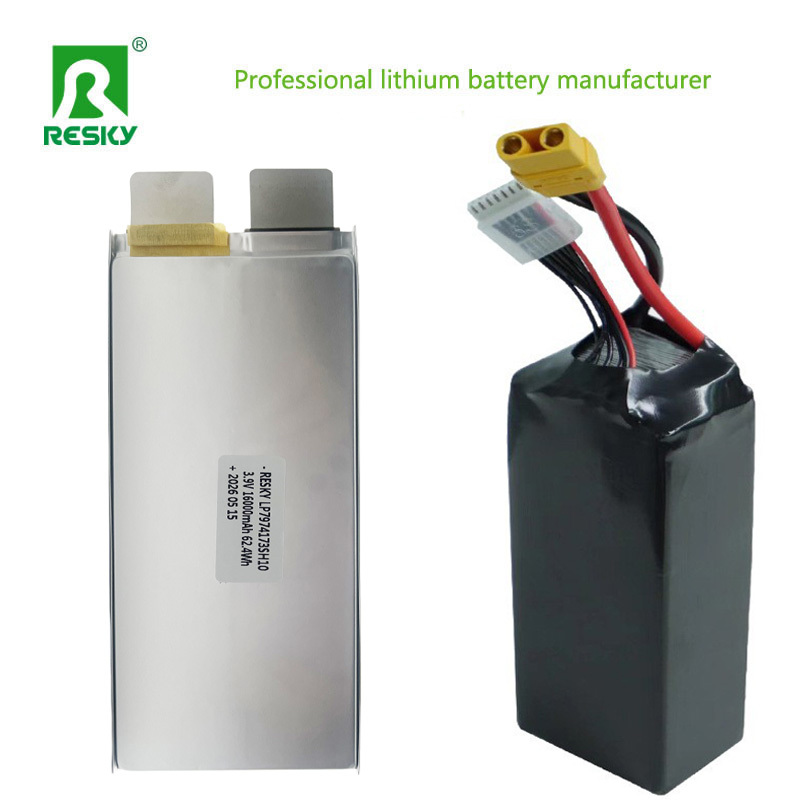

Product Images
