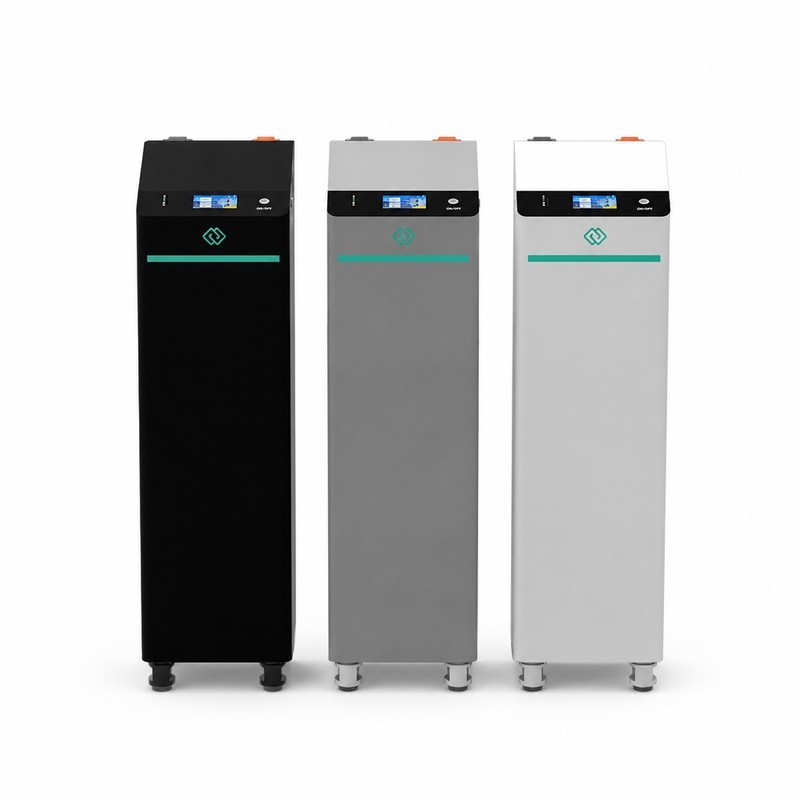

This is the new launched item---Seplos 16S 48V 280AH/314Ah/320AH DIY Battery kits, BMS included, support communication with inverters via RS 485 and CAN.Only need 16pcs battery cells+ Kit to assemble a 16kwh home solar battery.

Why need a case?

1.As someone who is not very familiar with electricians or wants to DIY a solar panel pack, this DIY KITs provide you with a lot of convenience and save time and money costs.

DIY kits include all the accessories for assembling battery pack, such as epoxy boards, busbars(including the crossing busbar), BMS,Active balancer, cables and screws, etc.

No need to go to tens of shops to purchase those accessories.

2.According to the installation video or manual, a person with no technical knowledge can probably assemble it in 3-4 hours. A skilled person can assemble it in 1-2 hours. Greatly saving labor.

3.DIY kits and battery cells are priced lower than completed battery packs, and shipping costs are also cheaper,because there will be overweight charges for the battery pack.

4.The case supplies external mechanical pressure

• Resistance to vibration and impact

Continuous vibration is generated during the operation of vehicles/equipment, and fixed structures (end plates, brackets, straps) are used to prevent battery cell displacement, collision, resulting in shell rupture or pole loosening.

• Inhibit the cumulative effect of inflation

Although the expansion of individual cells is small, the slight expansion and superposition of hundreds of cells after grouping may squeeze the box. The fixing system can disperse stress and avoid deformation of the box.

• Ensure consistent heat dissipation

By using fixtures or thermal conductive structural adhesives, the large surface of the battery cell is tightly adhered to the cooling plate, improving thermal management efficiency (insufficient heat dissipation can lead to uncontrolled heating).

• Maintain the reliability of electrical connections

Prevent the pole from loosening due to vibration and avoid local overheating caused by virtual connection of connecting pieces.

Suitable for home energy storage, 48V 15-18KWh Off Grid&Hybird Grid System.

During the day, batteries store solar energy or store Grid electricity when it is cheaper, and use the battery's power at night and during peak hours.

When overload or short circuit faults
occur in the DC circuit, the DC circuit breaker can quickly cut off the circuit, prevent equipment overheating or damage, avoid arc and fire risks, and protect the combiner box and downstream equipment.
When repairing or replacing equipment, manually disconnecting the circuit breaker can cut off the current and ensure personnel safety. In addition, circuit breakers can isolate faulty components and prevent the entire system from shutting down.

2.Touch screen,multiple language

Colorful touch screen,indicating voltage,current,SOC.able to select protocal of inverter.

3.20% smaller

Space saving when multiple packs in parallel

Packing List :

1 * Battery Case (Bottom case, Front Panel, Top Bracket, Front Bracket, Top cover)
1 * 48V 200A 16S SEPLOS BMS(48V 150A 16S SEPLOS BMS)1 * 58V 400A Fuse
4 * Handle
2 * PCB Board for BMS and Cell Connection
3 * Upper and Lower Latch lock
1 * LCD Screen
1 * LCD Screen Sticker
4 * Button Cap
3 * Wires (LCD Screen wire, PCB board A and PCB board Connector)
2 * Battery Terminals (P+ Terminal and P- Terminal)
Other components includes:
6 * Copper bus bars (BMS connection)
15 * Aluminum bus bars (Cell connection)
10 * Epoxy sheet (Between cell and the case)
26 * EVA Tape (Between cells)
1 * PC sheet (Top cover)
Screws Details:
12 * Phillip Hex M4 * 8mm (PCB board fix)
9 * Phillip Hex M5 * 8mm + Washer + Spring Set(Ground cable and top bracket fix)
7 * Phillip Hex M6 * 25mm + Washer + Spring Set(Front Panel fix)
10 * Phillip Round M3 * 8mm + Washer + Spring Set(BMS and LCD Screen fix)
12 * Phillip Pan M5 * 10mm (Latch fix)
16 * Hexagan Socket Pan M4 * 10mm (P+/P- Terminals fix)
42 * Hexagan Socket Countersunk M4 * 10mm (Handle and battery case)
4 * Phillip Hex M6 * 14mm + Washer + Spring Set(foot fix)
5 * Phillip Hex M8 * 10mm + Washer + Spring Set (P+/P- Bus bar fix)
8 * Phillip Round M5 * 10mm + Washer
