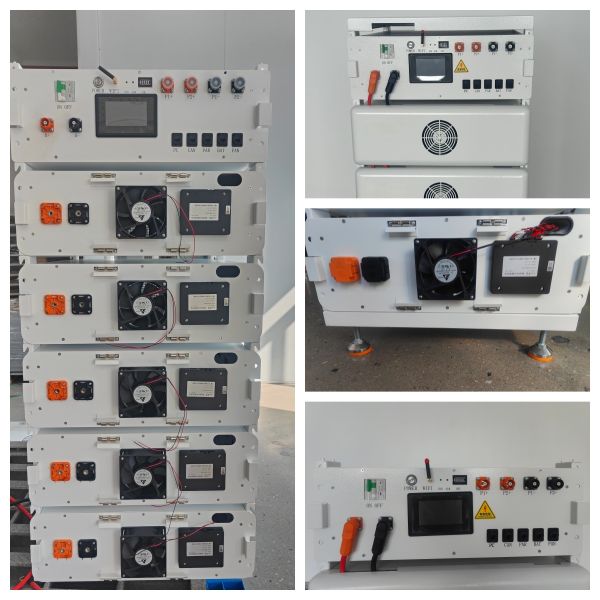

128kwh HV High Voltage ESS lithium Battery Pack hybrid grid solar
128kwh HV High Voltage ESS lithium Battery Pack hybrid grid solar
128kwh HV High Voltage ESS lithium Battery Pack hybrid grid solar
128kwh HV High Voltage ESS lithium Battery Pack hybrid grid solar
Specifications
Brand Name :
Deligreen
Model Number :
128kwh
Certification :
CE,UN 38.3 MSDS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, , D/P,
Packaging Details :
Wooden crate
Model :
51.2V 314ah
Capacity :
314Ah
Voltage :
48V,51.2V
Voltage range :
46.4-57.9V
System operating voltage :
330V-450V
Charge/discharge current :
160A,max 200A
Dimension :
771*550*200mm W*D*H
N.W. :
118 Kgs
Communication :
CAN,RS485
Description
Cell Chemistry LiFePO4
Module Energy 16.08kWh
Module Nominal Voltage 51.2V
Module Capacity 314Ah
Module Dimension 771*550*200(W/D/H,mm)
Module Weight Approximate 118kg
5 (Optional) 6 (Optional) 7 (Optional) 8 (Optional) 9 (Optional) 10 (Optional) 11 (Optional) 12 (Optional) 13 (Optional) 14 (Optional)
### Battery Module
Qty In Series 5 6 7 8 9 10 11 12 13 14
System Nominal Voltage 256V 307.2V 358.4V 409.6V 460.8V 512V 563.2V 614.4V 665.6V 716.8V
System Operating Voltage 232~288V 278.4~345.6V 324.8~403.2V 371.2~460.8V 417.6~518.4V 464~576V 510.4~633.6V 556.8~691.2V 603.2~748.8V 649.6~806.4V
### System Energy
System Energy 80.38kWh 96.46kWh 112.54kWh 128.61kWh 144.69kWh 160.77kWh 176.84kWh 192.92kWh 209kWh 225.08kWh
### System Usable Energy (kWh)
(90%DOD) 72.34 86.81 101.29 115.75 130.22 144.69 159.16
Charge/Discharge Current
Recommend 160A
Max 200A
Working Temperature -10~55°C
Cooling Mode Fan Cooling
Communication Port CAN/RS485
Humidity 5%~95%RH
Altitude ≤2000m
IP Rating of Enclosure IP20
Dimension (W/D/H,mm) 776*577*1 776*577*1 776*2*57 776*2*57 776*2*57 777*2*57 777*2*57 777*2*575 777*2*575 777*3*57
Weight Approximate 505 725 7*1065 7*1285 7*1285 7*1505 7*1505 7*1725 7*1725 7*1285
Weight Approximate 660kg 782kg 904kg 1076kg 1198kg 1320kg 1442kg 1564kg 1666kg 1808kg
### Stack Mounting, Iron Frame Mounting
Installation Location 0~35°C
Storage Temperature 90%
Recommend Depth of Discharge ≥8000 times
Cycle Life ≥8000 times
Warranty 5+5 years
Certification CE, MSDS, UN38.3
