Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer
Specifications
Brand Name :
Deligreen
Model Number :
48V 314ah
Place of Origin :
China
MOQ :
1piece
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
1000pcs/month
Delivery Time :
3-5 working days
Packaging Details :
wooden crate
Battery Configuration :
1P16S
Rated Voltage :
51.2V
Operating Voltage Range :
43.2V~58.4V
Rated Capacity :
314Ah
Rated :
16.0768KWh
Standard Charge/discharge Current :
100A/200A @25±2℃
Maximum Discharge Current :
200A @25±2℃
Operating Ambient Temperature :
0～40℃(Charge) -20～40℃(Discharge)
Size（L X W X H） :
(898.5＋10)×(415)×(260)mm
Weight :
119.5Kg±3kg
Cycle Life :
8000 Cycles @25℃
IP Rating :
IP 20
Communication Method :
CAN&RS485
Description
16kWh Rechargeable Home Solar LiFePO4 Battery Pack
EU Stock with Free Shipping - Enjoy seamless ordering with guaranteed stock availability, free shipping, and fast delivery directly from our EU warehouse.
Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer

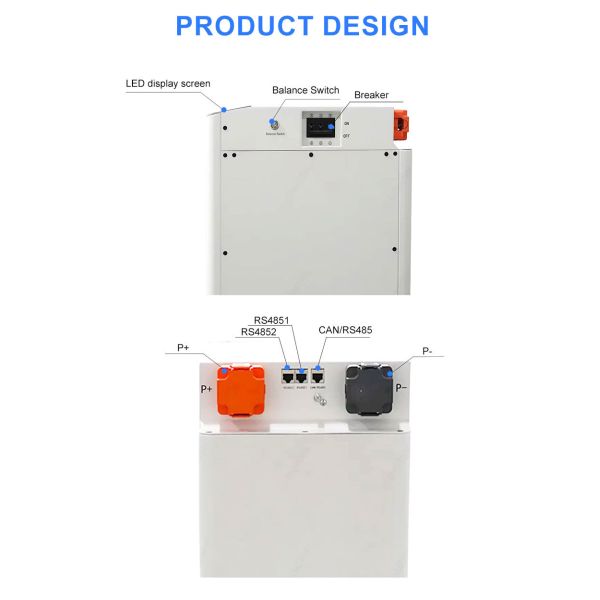

Key Differences Between V4 and V3 Models
  • Added 250A circuit breaker for enhanced protection
  • Touch screen display with Chinese and English language support
  • Updated communication interface to RS485B-RS485A-CAN
  • Slimmer design for easier parallel connection and space efficiency
  • Angled control panel optimized for European standing ergonomics
  • Convenient BMS weak current switch placement near upper display
  • Available in three colors: black, white, and gray
Technical Specifications
Battery Configuration 1P16S
Rated Voltage 51.2V
Operating Voltage Range 43.2V~58.4V
Rated Capacity 314Ah
Rated Energy 16.0768kWh
Standard Charge/Discharge Current 100A/200A @25±2℃
Maximum Charge Current 200A @25±2℃
Maximum Discharge Current 200A @25±2℃
Operating Ambient Temperature -10℃~35℃ (Storage within 1 month)
25±2℃ (Storage within 3 months)
65%±20% RH
Dimensions (L x W x H) (898.5＋10) × 415 × 260 mm
Weight 119.5Kg ± 3kg
Cycle Life 8000 cycles @25℃
IP Rating IP20

Deligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active BalancerDeligreen 16kWh 51.2V 48V 314ah 8000 Times Cycle lifepo4 Seplos BMS Lithium Ion Battery Pack with Active Balancer

Key Features
  • Modular Design: Expand your battery capacity effortlessly by connecting up to 16 additional packs in parallel
  • Customizable Options: Choose from popular cell suppliers like EVE and Envision to build battery packs up to 16kWh (cells supplied separately)
  • Smart BMS: The included V3 SEPLOS BMS with Bluetooth seamlessly integrates with various inverters (Victron, Growatt, Sofar, Solis, etc.) via CAN & RS485
  • Intuitive User Interface: Easily monitor battery status, charge/discharge rates, and system performance via the LCD color screen
  • 250A DC Breaker: Provides reliable protection and safeguards your battery system from excessive currents and short circuits
  • Active Balancing: Provides optimized cell performance and ensures balanced charging and discharging among individual cells
System Benefits
  • Cost-Effective: Build your own battery pack at a fraction of the cost of pre-assembled options
  • Tailored Performance: Customize your battery to meet your specific energy storage requirements
  • Reliable Technology: Benefit from the proven performance and safety of LiFePO4 cells and V3 SEPLOS BMS
  • Time Saving: DIY battery pack assembly requires only 2-3 hours
We also have separate kits and battery cells available. Please contact us if needed. Contact information is at the bottom of the page.
