IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
Specifications
Brand Name :
Deligreen
Model Number :
S2-3.3KW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
417.2
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Packaging Details :
35X24X20 cm/box
Input voltage range :
AC 90～265V
Input current :
16A
Output Rated voltage :
48V/72v/84V/96V/144V/312V
Max charging voltage :
66V
Max output current :
5-45A
Power factor :
≥0.99 Half load
Efficiency :
≥93% Full load
IP :
IP66
Application :
motorcycles/boats/surfboards
Net Weight :
6kg
Single package size :
294*210*111
Description
IP66 800W 1500W LiFePO4 Battery OBC Charger For E Bike
Product Overview

Deligreen 3.3kw/6.6kw fully enclosed frequency conversion pulse charger is specifically designed for electric vehicle power batteries according to national standards. This product features high efficiency, compact size, exceptional stability, long lifespan, and full IP66 waterproof technology for safe operation in any weather conditions.

Output Power: 3.3KW
Input Voltage: 220V
IP Rating: IP66 Waterproof
Efficiency: 99%
Technical Specifications
Parameter Value
Place of Origin China, Guangdong
Brand Name Deligreencs
Model Number S2-3.3KW, CDS2-3.3KW
Type Wall Charger
Certification RoHS
Applications Scooter, Electric Car, E-bike
Output 48V/5-45A, 72V/5-40A, 84V/5-40A, 96V/5-32A, 144V/5-23A, 312V/5-10A
Input Voltage AC95-265V
Cooling Type Air Cooling
Size 294*210*111mm
Cell Type LiFePO4 or Li-ion
Weight 6Kg

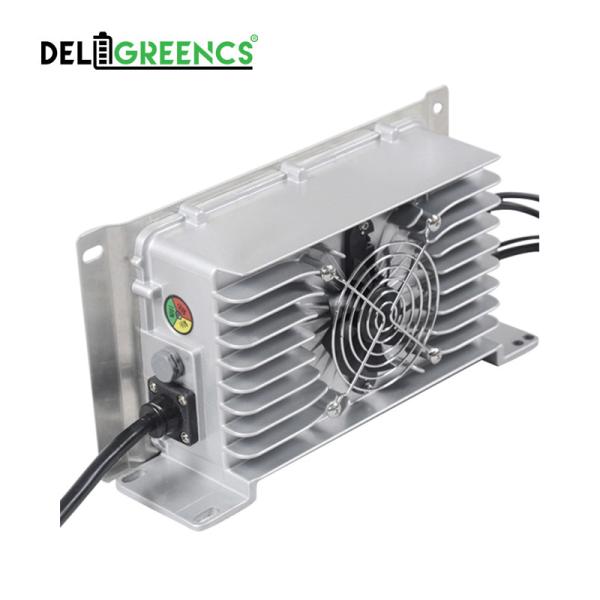

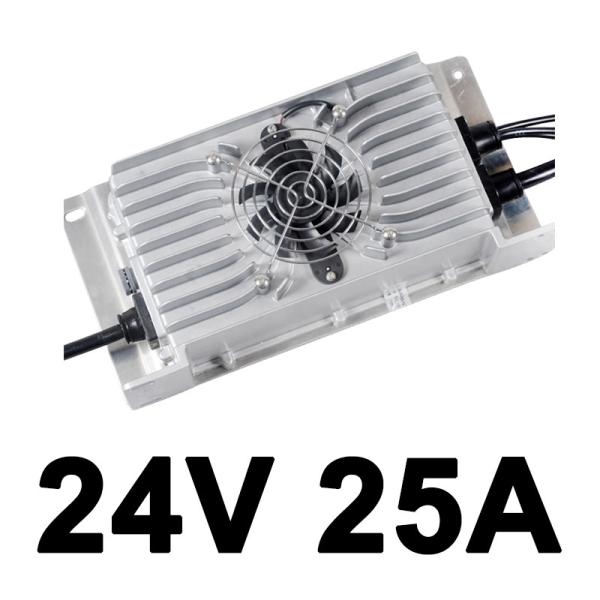

Product Images
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
Wide Voltage Options

Besides 220V and 110V fixed input voltage, this S2 car charger is available with wide range of input voltage from AC 90-265V.

Output Voltage Max Charging Voltage Max Charging Current
48V 58.8V 45A
72V 99V 40A
84V 116V 40A
96V 132V 32A
144V 198V 23A
312V 440V 10A
Electrical Parameters
Input Frequency: 45-65Hz
Standby Power Consumption: ≤ 5W
Output Type: Constant Pressure/Current
Output Power: 3300W@220VAC, 2800W@110VAC, 2650W@90-265VAC
CV Accuracy: ±1%
CC Accuracy: ±1%
Ripple Voltage Coefficient: 5%
Protection Functions
  • Input Over-voltage Protection: AC264V
  • Input Under-voltage Protection: AC90V
  • Output Over-voltage Protection: Yes
  • Output Over-current Protection: Yes
  • Over Temperature Protection: Power down from 85℃, shut off at 90℃
  • Short Circuit Protection: Stop output
  • Reverse Battery Protection: Stop output
  • Ground Protection: ≤ 100mΩ
  • Power Failure Protection: Yes
Safety Specifications
Withstand Pressure: Input to output: 2000VAC≤10mA
Insulation Resistance: ≥ 10MΩ
Protection Level: IP66
Noise: ≤ 60dB(Class A)
MTBF: 150,000 Hours
Operating Temperature: -20℃ ~ +85℃
Storage Temperature: -30℃ ~ +90℃
Dimensions & Mounting
IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles

3.3KW Air cooling - Horizontal mounting size within Q2-3.3KW

IP66 Waterproof 3.3KW LiFePO4 Battery OBC Charger with Wide Voltage Range for Electric Vehicles
Indicator Status Definition
No Alarm Status:
  • Charging: Red light flashes at 1s intervals, green light off
  • Heating: Green light flashes at 1s intervals, red light off
  • Waiting: Green light always on, red light off
With Alarm Status:
  • Hardware failure or DC12V failure
  • PFC, CC & CP slave CPU communication failure
  • DC bus voltage failure
  • Low or high AC voltage protection
  • Battery not connected
  • Segment charge timeout protection
  • Battery temperature protection
  • CPU temperature or transformer temperature protection
  • Output short-circuit protection
  • Transformer primary overcurrent protection
Frequently Asked Questions
CAN Protocol Available? Yes, we can supply CAN for battery communication
LED Indicators? Yes, RED/YELLOW/GREEN LED lights for charging status
Charging Mode? Lithium battery uses constant current charging
Single-phase Electricity? Form of electric energy transmission with phase wire and neutral wire
