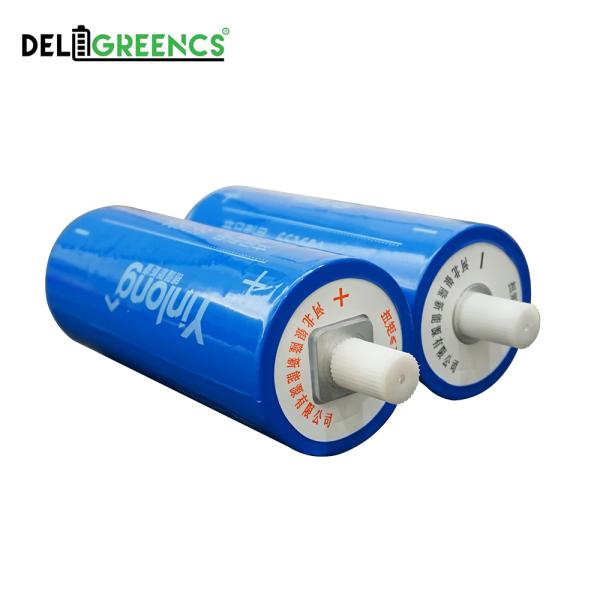

Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life
Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life
Specifications
Brand Name :
Deligreen
Model Number :
66160
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
4
Price :
38.7
Payment Terms :
T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
15 days
Packaging Details :
carton box
Nominal capacity :
40AH
Nominal voltage :
2.3V
Internal impedence :
≤1.0MΩ
cycle life :
25000 times
MCC :
240A
MCDC :
240A
Net Weight :
1230.0±10g
size :
66*161mm
Description
2.3V Yinlong LTO Cells Lithium Titanate Battery 40Ah 25000 Times Cycle Life
Yinlong 2.3V LTO Lithium Battery Lithium titanate 40Ah
What is LTO/Lithium Titanate Battery?
  • Lithium titanate battery (LTO) uses lithium titanate as negative electrode material for lithium ion batteries
  • Can be combined with lithium manganate, NCM materials or lithium iron phosphate to form 2.4V or 1.9V lithium ion secondary batteries
LTO Battery Specifications
No. Item Parameters Remark
1 Rated Capacity 40Ah
2 Nominal Voltage 2.3V
3 Internal Impedance ≤1.0mΩ Internal resistance measured at AC 1kHz after 50% charged
4 Standard Charge Cut-off Voltage 2.9V
5 Standard Discharge Cut-off Voltage 1.5V
6 Maximum Continuous Charge Current 6I₁(240A) 25℃±5℃
7 Maximum Continuous Discharge Current 6I₁(240A) 25℃±5℃
8 Maximum Pulse Charge/Discharge Current (10s) 10I₁(400A) 25℃±5℃
9 Operating Temperature Range Temperature: -40~65℃
Humidity: ≤85%RH		 Recommended charge/discharge current ≤1I₁ (40A) when cell temperature is lower than 0℃. Recommended to cool the cell when temperature is higher than 35℃
10 Storage Temperature Range -5℃~28℃ ≤90%RH storage moisture range
11 Dimension Diameter: 66.0±1.0mm
Height: 161.0±1.0mm		 Detailed dimension available in cell structure scheme
12 Weight 1230.0±10g
13 Cycle Life Continuous charge/discharge for 16000 cycles under standard test environment Discharge capacity ≥80% of initial capacity after 16000 cycles
Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life
Discharge Curve
Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life
25000 Times Deep Cycle Life
Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life
Dimensions
Diameter: D Length: L Screw L: Sl Weight
66MM 160MM 20MM 1.25KG
Features & Performance
20000 Life Cycles
Increased Safety Performance
Wide Operating Temperature Range
High Temperature Performance
Green Energy Without Contaminants
Pressure Resistant Cells
High Capacity System
Steady Output Voltage
<3% Yearly Discharge Storage
Triple Safety Protection
Vibration & Shock Resistant
No Memory Effect
Safety Protection
Over Charging Protection
Over Discharging Protection
Short Circuit Protection
Penetration Protection
Thermal Shock Protection
No Fires
No Explosions
Busbars for LTO
M12 Size
Yinlong LTO Cells 2.3V 40AH Lithium Titanate Battery with 25000 Times Cycle Life
Transportation & Delivery
Shipping to USA
  • By sea + Express (DDP, Tax free)
  • ETD: 5-8 days
  • ETA: 25-35 days after sailing
  • Tracking updated after pickup by local express
  • Usually takes 15-25 days after sailing
Shipping to EU
  • By railway + Express (DDP, Tax free) - Except Switzerland, Romania
  • ETD: 5-8 days
  • ETA: 30-45 working days after shipping
  • Tracking updated after pickup by local express
  • Usually takes 25-40 working days after shipping
Note: For remote areas not listed, please provide shipping address and zip code for verification.
About Us
Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider". We combine newest technology, innovative ideas, hard-working and honest people to deliver excellence.
Our Focus
  • Lithium rechargeable batteries
  • BMS (Battery Management Systems)
  • Balancers
  • Chargers and relative products
Main Applications
  • Electric bicycles and scooters
  • Motorhomes
  • AGV (Automated Guided Vehicles)
  • Solar/wind energy systems
  • Energy storage systems
  • Trucks and commercial vehicles
Our Promises
  • "Real" lithium capacity guarantee
  • "100%" refund for any quality problems
  • "100%" replacement for any shipping damage
  • Lifetime fast technical support
Customers' satisfaction is our endless pursuit.
Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of the LTO battery is 20000 to 25000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product specifications such as voltage, capacity, application etc.
How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery systems.
What is your term for payment?
We accept T/T, L/C, Paypal, Western Union, Money Gram, Ali Express, Cash, etc.
What kind of certificates do you have?
We can provide CE, ROHS, MSD, SHIPPING CERTIFICATIONS.
