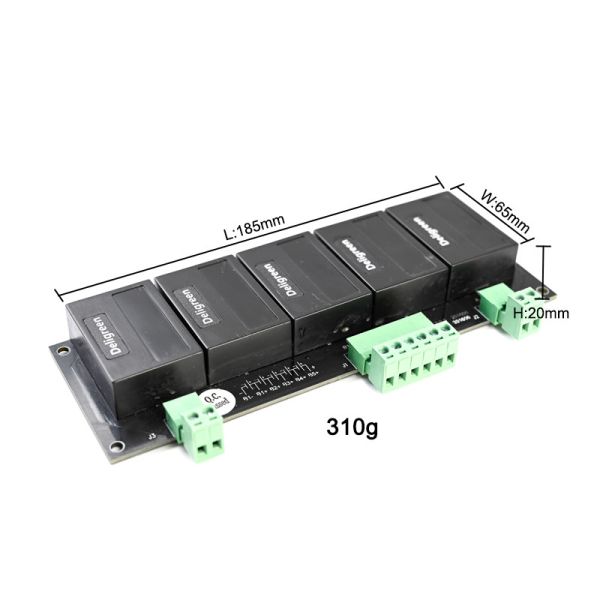

Deligreencs hot selling 5S Active Charger Equalizer Battery Balancer Module efficiently equalizes voltage for every series of batteries, preventing overcharge, insufficient charge, or over discharge to maximize battery performance and extend battery life.
| Battery Capacity Limited | Unlimited |
| Battery Count Limited | 2S~unlimited (At least balance 2 cells) |
| Battery Type Limited | LiFePO4, LiMnO4, AGM, Gel, Flooded batteries |
| Working Voltage | 2V~5V (2V lead acid & lithium), 4V~9V (6V lead acid), 9V~15V (12V lead acid) |
| Power Consumption | <50mW per 1S |
| Balance Method | Energy Transfer & Dynamic |
| Acceptable Constant Balance Current | 6A |
| Peak Balance Current | 10A |
| Voltage Difference VS Balance Current | 300mV-1A; 1V-3A |
| Voltage Difference After Using Balancer | <10mV <30mV (12V lead acid) |
| Working Efficiency (1A balance current) | >94% |
| Working Temperature | -40°C to +80°C |
| Storage Temperature | -40°C to +100°C |
| BMS Compatibility | Can work with BMS or independently |
The battery balancer maintains batteries within 10mV voltage difference and can double battery lifespan through precise voltage equalization.
Yes, absolutely. Using the BMS and balancer together provides optimal performance. Most BMS systems are intelligent and display battery information, but may have unsatisfactory balance performance. Adding the balancer solves this problem effectively.
The power consumption is very low, only 50mW per cell.
For batteries unused for 2-3 months, recharging is necessary for maintenance. Since balancer power consumption is low, it won't significantly drain the battery. Whether to disconnect depends on your battery pack capacity (10AH vs 100AH). Contact us with your specific situation for professional advice.
Yes, we have solutions for special batteries. For example, one balancer can be used for two of your cells. We have successfully served many customers with special battery requirements.
Lithium batteries, lead acid batteries, and super capacitors.
1-2 business days if in stock. 1-3 weeks for volume orders.
