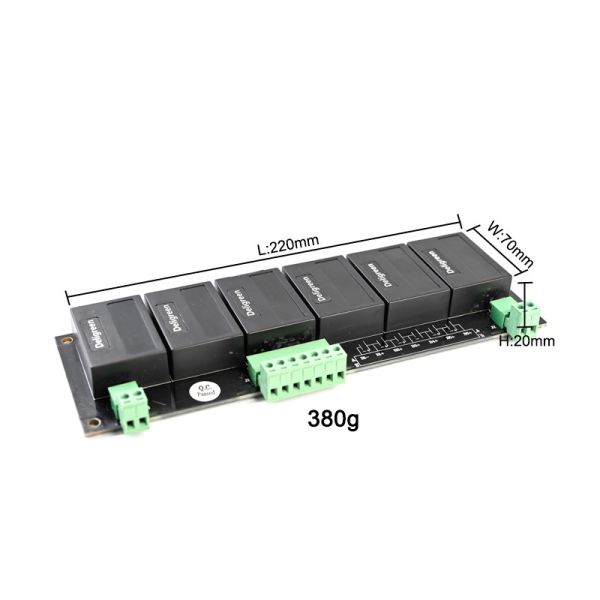

CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
Specifications
Brand Name :
Deligreence
Model Number :
LiFePO4 Cell 6S
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD 113.4-98 /pcs
Payment Terms :
T/T
Supply Ability :
100 pcs per week
Delivery Time :
5-8 working days
Packaging Details :
Carton
Product Name :
Deligreencs CE certification LiFePO4 Cell 6S Active Charger Equalizer Battery Balancer Module
Battery capacity limited :
Unlimited
Battery count limited :
2S~unlimited, At least balance 2 cells
Battery type :
LiFePO4, LiMnO4, AGM, Gell, Lead Acid, Flooded battery and so on
Working voltage :
1.8V~15V
Power consumption :
<50mW per 1S
Balance method :
pure electric sightseeing bus ,electric passenger car ,electric bus
Acceptable Constant balance current :
6A
Peak balance current :
10A
BMS limited :
Can work with BMS Or can work independently
Description
LiFePO4 Cell 6S Active Charger Lithium Battery Balancer Module CE Certified
Product Overview

Deligreencs CE certification LiFePO4 Cell 6S Active Charger Equalizer Battery Balancer Module

QNBBM Balancers equalize voltage for every series of batteries, preventing all cells from overcharge, insufficient charge, or over discharge. This technology maximizes battery performance and extends battery life.

  • Compatible with all LiFePO4 batteries, lithium ion batteries, LTO batteries
  • Works with 2V/6V/12V Gel/Flooded/AGM lead acid batteries
  • Ideal for Powerwall, Car audio, ESS, UPS, Solar Energy, Electric Vehicle applications
CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
Technical Specifications
Battery capacity limited Unlimited
Battery count limited 2S~unlimited (At least balance 2 cells)
Battery type limited Lifepo4, LiMnO4, AGM, Gell, Flooded battery
Working voltage 2V~5V (2V lead acid & lithium), 4V~9V (6V lead acid), 9V~15V (12V lead acid)
Power consumption <50mW per 1S
Balance method Energy transfer & Dynamic
Acceptable Constant balance current 6A
Peak balance current 10A
Voltage difference VS Balance current 300mV-1A; 1V-3A
Voltage difference after using balancer <10mV <30mV (12V lead acid)
Working efficiency at 1A balance current >94%
Working temperature -40°C to +80°C
Storage temperature -40°C to +100°C
BMS compatibility Can work with BMS or independently

Battery balancer can keep batteries within 10mV and double battery lifespan

CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
Package & Company Information
CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current CE Certified LiFePO4 Battery Balancer with 6S Active Charger and 10A Peak Balance Current
Why Choose Us?
  • One-stop power provider including lithium battery active balancer, BMS, charger and accessories
  • Russia, Poland, and USA warehouses ensure quick delivery
  • Factory direct pricing and lifetime technical support
  • Reliable warranty program

Looking for distributors! Make DIY Battery Easier!

Frequently Asked Questions
Q1: I have a BMS already, can I use the balancer?

Yes, absolutely. Using BMS and balancer together provides optimal performance. Most BMS systems are intelligent and display battery information, but balance performance may be unsatisfactory. Adding the balancer solves this problem.

Q2: What is power consumption of the balancer?

The power consumption is very low, only 50mW.

Q3: If I don't use the batteries for a long time, should I disconnect the balancers?

For batteries unused for 2-3 months, recharging is necessary for maintenance. Since balancer power consumption is low, it won't consume much battery power. Whether to disconnect depends on your battery pack capacity. Contact us with your specific situation for professional advice.

Q4: My battery is NiCD or other special battery with nominal volt of only 1.2V. Can I use your balancer?

Yes, that is possible. We have solutions, such as using one balancer for two cells. We have many customers with special batteries where our balancers work effectively.

Q5: What are the applications of your balancer?

Lithium battery, lead acid battery, super capacitor systems.

Q6: What is delivery time of your balancer?

1-2 business days if in stock. 1-3 weeks for volume orders.

All long pleasant business starts from good communication. We welcome your inquiries and are always available to answer questions. Even if we can't make a deal, we can share information and learn from each other.
