CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
Specifications
Brand Name :
EVE280ah
Model Number :
280AH 3.2V
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD 145/pcs
Payment Terms :
T/T
Supply Ability :
500 pcs per week
Delivery Time :
5-8 working days
Packaging Details :
Carton
Product Name :
EU Warehouse Deligreencs Electric Motorcycle Battery 3.2V 280ah Lifepo4 Battery Cell
Typical capacity :
280AH
Impedance(1kHz) :
≤0.30mΩ
Terminal :
Screw terminal
Voltage :
2.5v~3.65v
Temp. Condition :
-25 ~ 60℃
Appllication 1 :
pure electric sightseeing bus ,electric passenger car ,electric bus
Appllication 2 :
Pure electric special vehicle ,electric forklift truck ,Electric ships
Appllication 3 :
Rail transit vehicle ,aerospace field ,Energy Storage ,Scooter ,Solar
Package :
Carton/box
Description
CATL 3.2V 280Ah 302Ah Prismatic Lifepo4 Battery Cell 300Ah 310Ah
Product Overview
Brand New CATL 3.2V 280Ah 302Ah Prismatic Lifepo4 Battery Cell 300Ah 310Ah Lithium Iron Phosphate Battery
Technical Specifications
No.ItemSpecification
1Nominal Voltage3.2V
2Nominal Capacity280AH
3Inner Resistance≤0.4mΩ [Fresh cell:(30%~40%SOC)]
4Standard Charge Current0.5C
4Maximum Discharge Current (Continuous)1C
4Cut Off Charging Voltage3.65V
5Standard Discharge Current0.5C
5Maximum Discharge Current (Continuous)1C
5Cut-Off Discharging Voltage2.5V (Temp.)T>0°C 2.0V(Temp.)T≤0°C
6Charging Operation Temperature0°C ~ 65°C
6Discharging Operation Temperature-35°C ~ 65°C
7Storage Conditions Short-Term (Within 1 Month)-20°C ~ 65°C
7Storage Conditions Long Term (Within 1 Year)-20°C ~ 55°C
8Storage Humidity< 70%
9Net Weight5.3KG
10Shell MaterialAluminum
11Cycle Life≥3000 cycles
12Shipping Capacity30%~40%

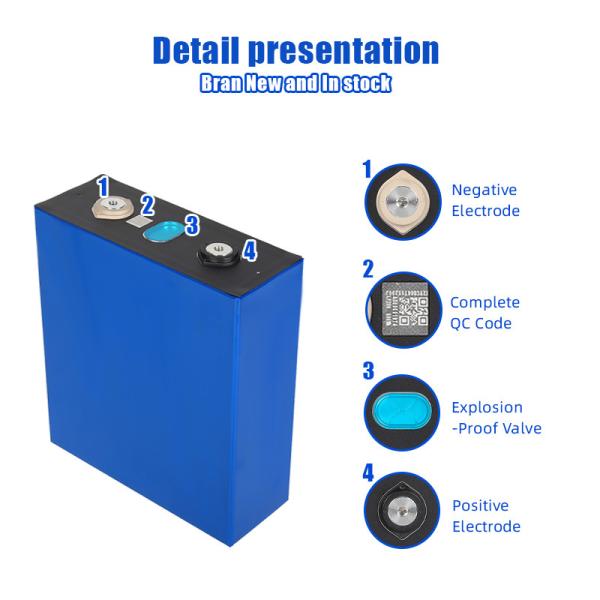

Product Images
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy StorageCATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy StorageCATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy StorageCATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
Available Models & Stock Status
BrandCapacityIn stockBrandCapacityIn stock
CATLSY53AHYesCALB70AH1-2 weeks
100AHYes100AH1-2 weeks
120AHYes163AH1-2 weeks
202AHYes230AH1-2 weeks
271AHYesGF50AH1-2 weeks
302AHYes86AH1-2 weeks
310AHYes100AHYes
EVE50AHYesGF206AH1-2 weeks
90AHYesGF277AH1-2 weeks
230AHYesREPT280AHYes
280AHYes280LAHYes
LTO30AHYesLISHEN202AHYes
35AHYes272AHYes
40AHYes
Applications
EVE280ah Batteries can be widely used for ESS, RV, Marine, Yacht, Home solar Energy, UPS, Motor home, Low Speed Electric Vehicles, Rickshaw. Ideal option as SLA Lead acid battery replacement.
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy StorageCATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage

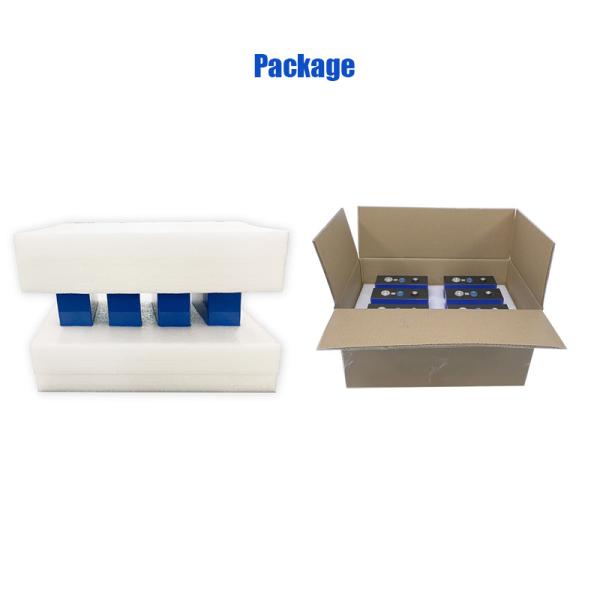

Packaging
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
Company Overview
CATL 3.2V 280Ah Prismatic Lifepo4 Battery Cell with Screw Terminal for Energy Storage
Why Choose Us?
  • One-stop power provider including lithium battery active balancer, BMS, charger and other accessories
  • Russia, Poland, and USA warehouses ensure quick delivery
  • Factory direct price and whole life technical support
  • Reliable warranty
  • Looking for distributors! Make DIY Battery Easier!
Frequently Asked Questions
Q1: Are these new cells?
Yes 100%, factory direct.
Q2: Do you test capacity, voltage and internal resistance before shipping?
All batteries are strictly tested before shipment. Voltage difference within 10mV, capacity difference within 2%. Internal resistance as low as possible. High internal resistance batteries are not allowed to be sent out.
Q3: What is your replacement policy if the cells arrive damaged?
First we have three staffs to check the package. All cells are wrapped with thick foam all around and then use the 5-layer hardest cartons to avoid any damage during shipping. We also have UN cartons and polywood cases. These are 100% safe for the batteries. In case any damage during transportation, 100% new replacement in one business day.

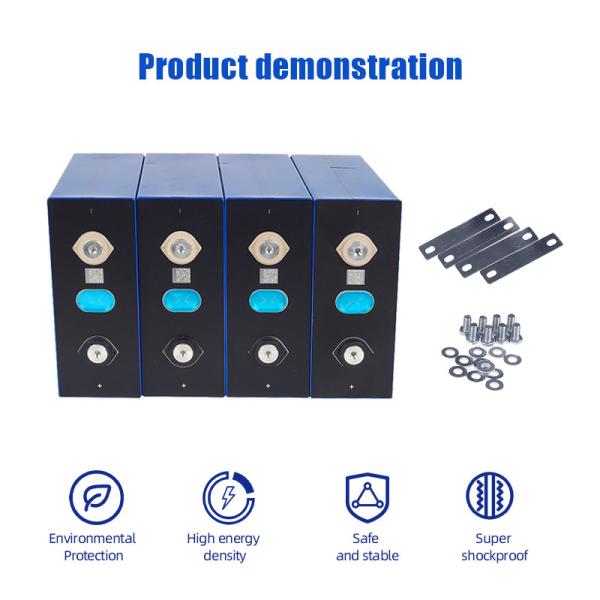

Q4: BusBars and screws are included and for free?
Yes, we ship the battery with the BusBar connector and screws, for free if you follow us.
Q5: Why can't I see any update tracking information after waiting for weeks?
This is normal, please be patient. The tracking number won't be updated till the package has arrived at your country. When they are on the train, no tracking. Be relax.
Q6: Can you customize battery pack?
Yes. Please send us your needs: voltage, capacity, application, constant and peak charge and discharge current, size limitation and all relative information will help us move forward faster.
Q7: Do you have battery accessories besides battery cells?
Yes we have the best source of active battery balancer, smart BMS and charger. Let us help you save time and money and avoid risks.
All long pleasant business starts from good communication. Maybe you have many other questions to ask. We are always waiting for your inquiry. Even if we can't make the deal, we can make friends, share information and learn from each other.
