Outdoor Solar Lifepo4 Battery Pack 12V 100Ah for Motor Homes with Grade A Lithium Cells
Outdoor Solar Lifepo4 Battery Pack 12V 100Ah for Motor Homes with Grade A Lithium Cells
Specifications
Brand Name :
Deligreencs
Model Number :
12V100AH
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
550
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
15 working days
Packaging Details :
carton box
Nominal capacity :
100.0Ah
Nominal Voltage :
12V
Internal Impedance :
≤20mΩ
Standard Charging :
20A
Charging Voltage :
14.6V
Max. Continuous Charge Current :
50.0A
Standard Discharging :
25A
Max Continuous Discharge Current :
50A
Description
Outdoor Solar LiFePO4 Battery Pack 12V 100Ah-600Ah for Motor Homes
Factory customized 12.8V, 24V, 32V 100Ah Grade A lithium battery pack with metal box designed for camping and outdoor applications.
Technical Specifications
Nominal Capacity 100.0Ah
Nominal Voltage 12.8V
Internal Impedance ≤20mΩ
Standard Charging 20A
Charging Voltage 14.6V
Max. Continuous Charge Current 50.0A
Standard Discharging 25A
Max Continuous Discharge Current 50A
Cycle Life 2000 times
Operating Temperature Charge: 0℃~60℃ / Discharge: -20℃~60℃
Weight 15.3KG
Size L290 × W200 × H200 mm

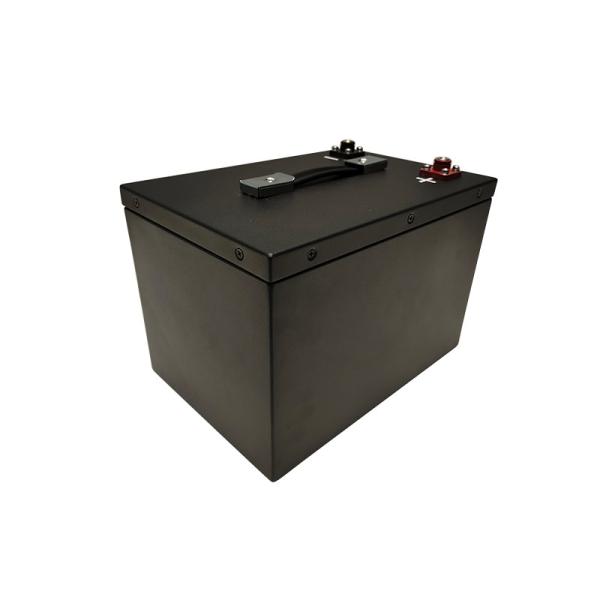

Outdoor Solar Lifepo4 Battery Pack 12V 100Ah for Motor Homes with Grade A Lithium Cells
BMS Specifications
Power Consumption (Low power consumption mode) ≤100μA
Over Charge Protection Detection Voltage 3.75V
Over Charge Release Voltage 3.38V
Over Discharge Protection Detection Voltage 2.2V
Over Discharge Release Voltage 2.7V
Charging Overcurrent Detection (Detection Time) 50A (1S)
Discharging Overcurrent Detection 1 (Detection Time) 100A (1S)
Discharging Overcurrent Detection 2 (Detection Time) ≥200A (100ms)
Temperature Protection Detection Temperature 65±2℃
Applications
  • Motorhome
  • Caravan
  • Boat
  • Camping
  • RV
  • Solar Energy Systems

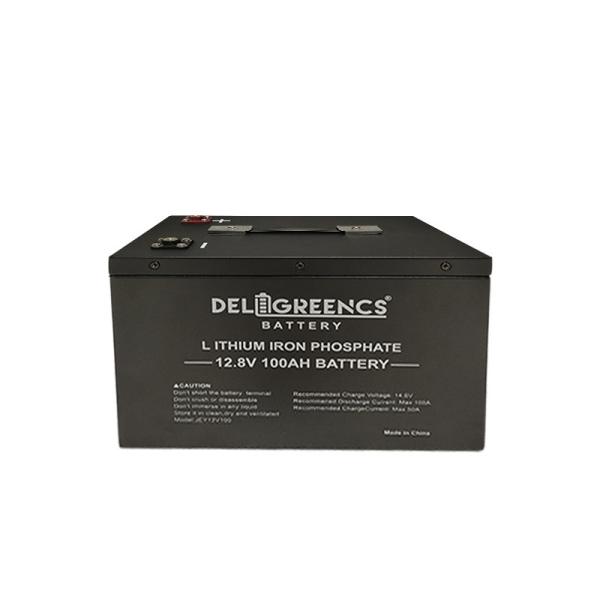

Outdoor Solar Lifepo4 Battery Pack 12V 100Ah for Motor Homes with Grade A Lithium Cells
Shipping & Delivery Information
Shipment to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
The tracking will be updated after pick up by local express. Usually takes 15-25 days after sailing.
Shipment to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
The tracking will be updated after pick up by local express. Usually takes 25-40 working days after shipping.
For remote areas not listed, please provide shipping address and zip code for verification.
Outdoor Solar Lifepo4 Battery Pack 12V 100Ah for Motor Homes with Grade A Lithium Cells Outdoor Solar Lifepo4 Battery Pack 12V 100Ah for Motor Homes with Grade A Lithium Cells
