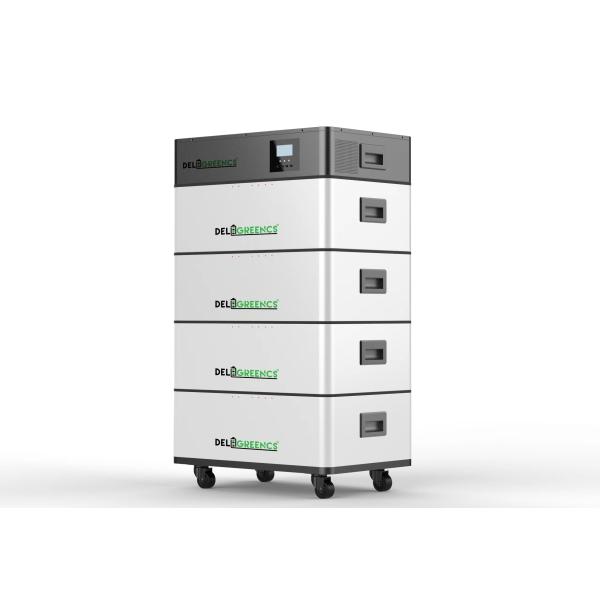

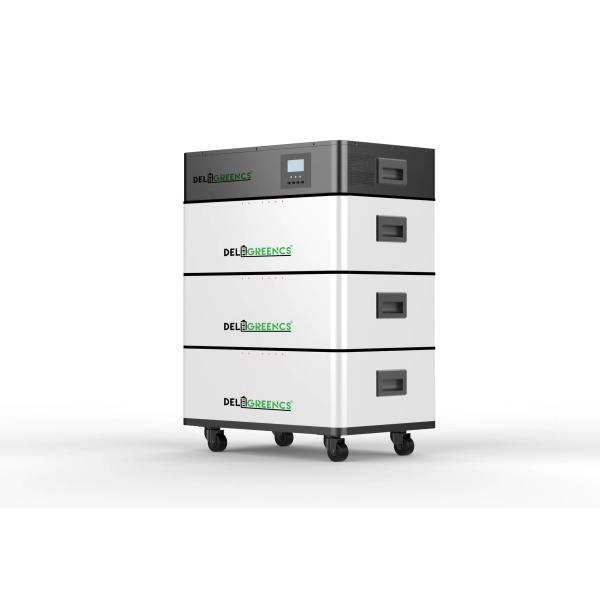

48V 200Ah 10kWh 5kW Inverter Lithium Ion Battery Pack Energy Storage System for Home
48V 200Ah 10kWh 5kW Inverter Lithium Ion Battery Pack Energy Storage System for Home
48V 200Ah 10kWh 5kW Inverter Lithium Ion Battery Pack Energy Storage System for Home
48V 200Ah 10kWh 5kW Inverter Lithium Ion Battery Pack Energy Storage System for Home
Specifications
Brand Name :
Deligreen
Model Number :
48V10kwh
Description
48V 200Ah 10kwh 5kw Inverter MPPT Built In Lithium Ion Battery Pack Energy Storage
Deligreen All-in-One Energy Storage System

Looking for a reliable solar power storage solution? While solar panels cannot generate electricity at night, with the Deligreen energy storage battery system, you can have continuous power supply throughout the night. Unlike conventional batteries that require multiple additional components like inverters, MPPT controllers, and chargers, our system offers a complete plug-and-play solution for simplified home energy management.

Key Features
  • Integrated All-in-One System with 10kwh/15kwh/20kwh/25kwh storage capacity
  • UPS Function for uninterrupted power supply
  • LCD Screen for easy monitoring
  • Back-up Power capability
  • 24-hour solar power utilization
  • 10-Year Warranty protection
  • Simple plug-and-play installation
Technical Specifications
Phase Single Phase
Rated Voltage 51.2V
Rated Capacity 200Ah
Continuous Discharge Current 100A
Peak Discharge Current 110A/10s
Standard Charging Current 50A
Fast Charging Current 100A
Parallel Capability 15P
Cooling Mode Self Cooled
Battery Type LiFePO4 Lithium Iron Phosphate
Cycle Life 10,000 times
Rated Grid Frequency 230V/176-270V
PV Max Input Power 4200W
MPPT Voltage Range 60-115V DC
Charging/Discharging Efficiency >92%
Battery Voltage Range 40V DC-60V DC ±0.6V DC
Warranty Battery: 10 years, Inverter: 5 years
Noise Level @1m <35db
Certificates CE, MSDS, UN38.3, ISO:9001
Certification
Product Certificate CE, UN38.3, MSDS, Sea Freight Dangerous Package
Battery Certificate CE, UL, IEC 62109-1&2, IEC 62477, EN61000, UN38.3
Dimensions & Environmental Specifications
Inverter Size/Weight 602×403×139mm / 15kg
Battery Size/Weight 602×403×200mm / 55kg
Chassis Size/Weight 602×403×82mm / 6kg
Installation Stacked
Storage Humidity Range ≤85% RH
Operating Temperature 20-55°C
Recommended Temperature 25°C
Waterproof Rating IP21
48V 200Ah 10kWh 5kW Inverter Lithium Ion Battery Pack Energy Storage System for Home
Shipping & Delivery Information

USA Delivery: By Sea + Express (DDP, Tax Free)
ETD: 5-8 days | ETA: 25-35 days after sailing
Tracking updates available after local express pickup (typically 15-25 days after sailing)

EU Delivery: By Railway + Express (DDP, Tax Free) - Excluding Switzerland, Romania
ETD: 5-8 days | ETA: 30-45 working days after shipping
Tracking updates available after local express pickup (typically 25-40 working days after shipping)

Note: For remote areas not listed, please provide your shipping address and zip code for verification.
