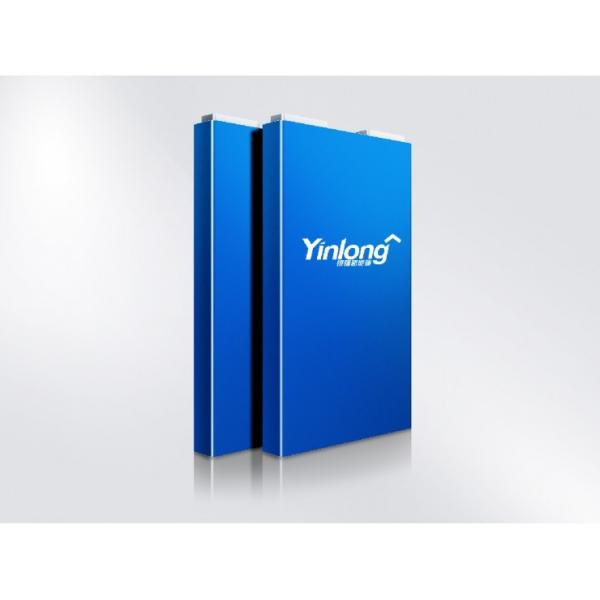

Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Specifications
Brand Name :
yinlong
Model Number :
2.3v33ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
28
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
15 working days
Packaging Details :
carton box
Nominal capacity :
33ah
Nominal voltage :
2.3v
Internal impedence :
≤1.0MΩ
cycle life :
25000 times
MCC :
198A
MCDC :
198A
Net Weight :
1240.0±20g
size :
21*21*130mm
Description
Forklift Prismatic 2.3V 33Ah Lithium Iron Phosphate Cells
Product Overview

Yinlong prismatic 2.3V 33Ah rechargeable Lithium LTO Battery 66160 for Forklift

What is LTO/Lithium Titanate Battery?
  • Lithium titanate battery (LTO) uses lithium titanate as a negative electrode material for lithium ion batteries
  • Can be combined with lithium manganate, NCM materials, or lithium iron phosphate to form 2.4V or 1.9V lithium ion secondary batteries
  • Deep cycle capability with over 25,000 cycles
About Yinlong

Yinlong is a global comprehensive new energy industry group that integrates titanium core materials, batteries, electric motor control, charging equipment, intelligent energy storage systems, and pure electric vehicle research, development, production, and sales. The company is well-known as an LTO battery supplier and also researches and produces electric buses.

Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Features & Performance Safety Protection
Features & Performance:
  • 20,000+ Life Cycles
  • Increased Safety Performance
  • Wide Operating Temperature Range
  • High Temperature Performance
  • Green Energy Without Contaminants
  • Pressure Resistant Cells
  • High Capacity System
  • Steady Output Voltage
  • <3% Yearly Discharge Storage
  • Triple Safety Protection
  • Vibration & Shock Resistant
  • No Memory Effect
Safety Protection:
  • Over Charging Protection
  • Over Discharging Protection
  • Short Circuit Protection
  • Penetration Protection
  • Thermal Shock Protection
  • No Fires
  • No Explosions
Technical Specifications
No. Item Parameters Remark
1 Rated Capacity 33Ah
2 Nominal Voltage 2.3V
3 Internal Impedance ≤1.0mΩ Internal resistance measured at AC 1kHz after 50% charged
4 Standard Charge Cut-off Voltage 2.9V
5 Standard Discharge Cut-off Voltage 1.5V
6 Maximum Continuous Charge Current 6I₁(198A) 25℃±5℃
7 Maximum Continuous Discharge Current 6I₁(198A) 25℃±5℃
8 Maximum Pulse Charge/Discharge Current (10s) 10I₁(330A) 25℃±5℃
9 Operating Temperature Range Temperature: -40~65℃ Humidity: ≤85%RH Recommended charge/discharge current ≤1I₁ (40A) when cell temperature is lower than 0℃. Recommended to cool the cell when temperature is higher than 35℃
10 Storage Temperature Range -5℃~28℃ ≤90%RH storage moisture range
11 Dimension Depth: 21.0±1.0mm; Height: 205.0±1.0mm; Width: 130.0±1.0mm
12 Weight 1240±20.0g
13 Cycle Life The cell shall be continuously charged and discharged for 16,000 cycles Discharge Capacity ≥80% of initial capacity after 16,000 cycles
6-Minute Fast Charging
Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift

Yinlong technology of fast charging can reduce charging time to 6-10 minutes.

Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Safety Testing
Cutting Test Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Over Charge/Discharge Test Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Burning Test Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Drilling Test Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Stabbing Test Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Stabbing in Water Test Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Applications
  • Intensive energy storage station
  • Home energy storage
  • Charging pile
  • E-bus/E-car
  • Electric tools
  • Forklift
Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Customer Case Studies
Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift Yinlong 66160 Lithium Titanate Battery 2.3V 33Ah with 25000 Cycle Life and Fast Charging for Forklift
Transportation & Delivery

Shipment to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updated after pickup by local express (usually 15-25 days after sailing)

Shipment to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updated after pickup by local express (usually 25-40 working days after shipping)

Other: For remote areas not listed, please provide shipping address and zip code for verification.

About Our Company

Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider" specializing in newest technology, innovative ideas, and dedicated, honest professionals.

We focus on lithium rechargeable batteries, BMS, balancers, chargers, and related products for applications including electric bicycles, scooters, motorhomes, AGVs, solar/wind systems, energy storage systems, trucks, and more.

Our Promises:

  • Real lithium capacity
  • 100% refund for any quality problem
  • 100% replacement for any shipping damage
  • Lifetime fast technical support

Customer satisfaction is our endless pursuit.

Frequently Asked Questions
What is the life expectancy of a Lithium battery?

The typical estimated life of the LTO battery is 20,000 to 25,000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.

Where can I get the price?

Please contact us or request a quote. We will provide the best quote within 24 hours after receiving your product specifications including voltage, capacity, and application requirements.

How can you guarantee your quality?

We normally send samples for confirmation first. We manufacture bulk orders exactly as requested and offer 1-year warranty for small battery packs, 2-3 years for larger battery systems.

What is your term for payment?

We accept T/T, L/C, PayPal, Western Union, Money Gram, Ali Express, Cash, and other payment methods.

What kind of certificates do you have?

We provide CE, ROHS, MSD, and shipping certifications.
