Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Specifications
Brand Name :
yinlong
Model Number :
2.3v30ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
15 working days
Packaging Details :
carton box
Price :
26
Nominal capacity :
30ah
Nominal voltage :
2.3v
Internal impedence :
≤1.0MΩ
cycle life :
25000 times
MCC :
180A
MCDC :
180A
Net Weight :
1030.0±10g
size :
29*97*173
Description
Prismatic 2.3V 30Ah Bluetooth LiFePO4 Battery Pack
Product Overview

Yinlong prismatic 2.3V 10C Discharge Rate 30Ah Lithium LTO Battery 66160

What is LTO/Lithium Titanate Battery?
  • Lithium titanate battery (LTO) uses lithium titanate as negative electrode material for lithium ion batteries
  • Can be combined with lithium manganate, NCM materials, or lithium iron phosphate to form 2.4V or 1.9V lithium ion secondary batteries
About Yinlong

Yinlong is a global comprehensive new energy industry group that integrates titanium core materials, batteries, electric motor control, charging equipment, intelligent energy storage systems, and pure electric vehicle research, development, production, and sales.

Technical Specifications
No. Item Parameters Remark
1Rated Capacity30Ah
2Nominal Voltage2.3V
3Internal Impedance≤1.0mΩInternal resistance measured at AC 1kHz after 50% charged
4Standard Charge Cut-off Voltage2.9V
5Standard Discharge Cut-off Voltage1.5V
6Maximum Continuous Charge Current6I₁(180A)25℃±5℃
7Maximum Continuous Discharge Current6I₁(180A)25℃±5℃
8Maximum Pulse Charge/Discharge Current (10s)10I₁(300A)25℃±5℃
9Operating Temperature RangeTemperature: -40~65℃ Humidity: ≤85%RHRecommended charge/discharge current ≤1I₁ (40A) when cell temperature is lower than 0℃
10Storage Temperature Range-5℃~28℃≤90%RH storage moisture range
11DimensionDepth: 28.5±1.0mm Height: 97.0±1.0mm Width: 173.0±1.0mm
12Weight1030.0±10g
13Cycle LifeThe cell shall be continuously charged and discharged for 16000 cyclesDischarge Capacity ≥80% of initial capacity after 16000 cycles

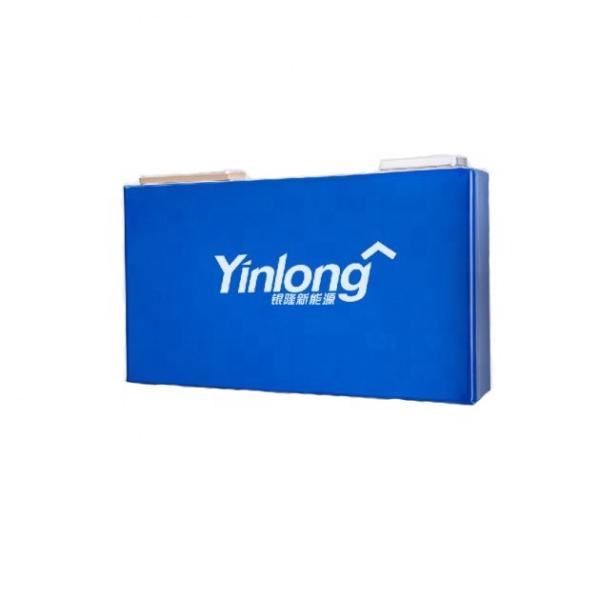

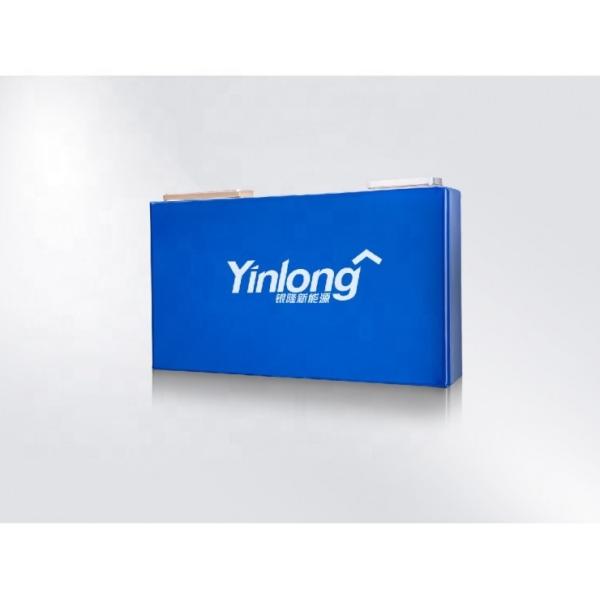

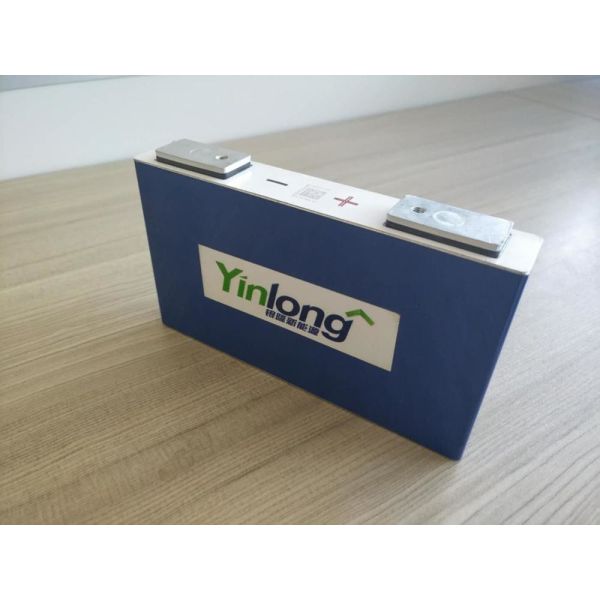

Product Images
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Features & Performance Safety Protection
  • 20000 Life Cycles
  • Increased Safety Performance
  • Wide Operating Temperature Range
  • High Temperature Performance
  • Green Energy Without Contaminants
  • Pressure Resistant Cells
  • High Capacity System
  • Steady Output Voltage
  • <3% Yearly Discharge Storage
  • Triple Safety Protection
  • Vibration & Shock Resistant
  • No Memory Effect
Safety Protection Features
  • Over Charging Protection
  • Over Discharging Protection
  • Short Circuit Protection
  • Penetration Protection
  • Thermal Shock Protection
  • No Fires
  • No Explosions
6 Minutes Fast Charging
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity

Yinlong technology of fast charging can make the time of charging 6-10 minutes.

Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Yinlong LTO Battery
Lifepo4 Battery
NCM Battery
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Customer Case Studies
Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity Prismatic 2.3V 30Ah Lithium Titanate Battery with 25000 Cycle Life and Bluetooth Connectivity
Transportation & Delivery

Shipment to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updated after pickup by local express (usually 15-25 days after sailing)

Shipment to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updated after pickup by local express (usually 25-40 working days after shipping)

Other: For remote areas not listed, please provide shipping address and zip code for verification.

About Changsha Deligreen Power Co., LTD

Founded in 2010, Changsha Deligreen Power Co., LTD is a "Green Energy Solution Service Provider" specializing in newest technology, new ideas, and hard-working, honest people.

Our Focus
  • Lithium rechargeable batteries
  • BMS (Battery Management Systems)
  • Balancers
  • Chargers and relative products
Main Applications
  • Electric bicycles and scooters
  • Motorhomes
  • AGV (Automated Guided Vehicles)
  • Solar/wind energy systems
  • Energy storage systems
  • Trucks and commercial vehicles
Our Promises
  • Real lithium capacity
  • 100% refund for any quality problem
  • 100% replacement for any shipping damage
  • Lifetime fast technical support

Customers' satisfaction is our endless pursuit.

Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of the LTO battery is 20000 to 25000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Where can I get the price?
Please Click Contact Now or Request a Quote. We will offer you the best quote in 24 hours after we get the product specifications such as voltage, capacity, application etc.
How can you guarantee your quality?
Normally we will send you a sample to confirm everything first. We will make the big order exactly the same as you request. And we offer 1 year warranty for small battery packs, 2-3 years for battery systems.
What is your term for payment?
We accept T/T, L/C, Paypal, Western Union, Money Gram, Ali Express, Cash, etc.
What kind of certificates do you have?
We can provide CE, ROHS, MSD, SHIPPING CERTIFICATIONS.
