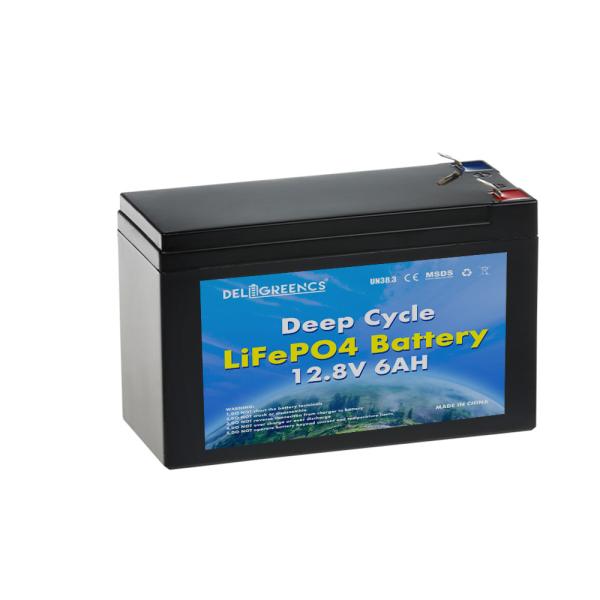

Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life
Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life
Specifications
Brand Name :
Deligreencs
Model Number :
12.8V6ah-B
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000 pcs/day
Delivery Time :
15 working days
Packaging Details :
carton box
Nominal capacity :
6AH
Nominal voltage :
12.8V
cycle life :
2000 times
Internal impedence :
≤70MΩ
MCC :
3A
Max charging voltage :
14-14.6V
Net Weight :
0.75kg
Single package size :
90*70*101* 107mm
discharging cut-off voltage :
10V
Description
BMS Bluetooth LiFePO4 Customized Battery Pack
Built-In Bluetooth BMS 12.8V 6Ah Deep Cycle Lithium Battery Pack

Advanced lithium battery technology with integrated Bluetooth BMS for superior performance and monitoring capabilities.

Understanding Lithium Battery Technology
  • Lithium batteries utilize lithium metal or lithium alloy as positive/negative electrode materials with non-aqueous electrolyte solutions
  • Two main categories: lithium metal batteries and lithium ion batteries (rechargeable, no metallic lithium content)
Why Choose Deligreen for Your Battery Pack?

Complete lithium battery systems including cells, BMS, and outer casing for diverse applications including RV, solar systems, camping, energy storage, LED lighting, golf carts, marine, and electric vehicles.

Customization Requirements

For precise pricing and specifications, please provide the following details:

Questions Answer
Customer Name
Product Application
Battery Cell Requirement
Nominal Voltage and Capacity
Cut-off Charge Voltage
Charge Current
Max Continuous Discharge
Peak Current Time
BMS Dimension
Battery Pack Dimensions (mm)
Outer Box Requirement
Communication Protocol
Coding Requirement
Label Requirement
Other Requirements
Key Features
Advanced Safety

Lithium iron phosphate cell technology with automatic protection for over-charge, over-discharge, over-current, and over-temperature

Long Lifespan

Thousands of cycles with 100% DOD under normal conditions

Maintenance-Free

Internal cell balancing with no maintenance requirements

Lightweight Design

Approximately 40-50% lighter than comparable lead-acid batteries

Wide Temperature Range

Operational range from -20°C to 60°C

Flexible Configuration

Support for series application (up to 51.2V) and parallel connections

Technical Specifications: 12.8V 6Ah Battery
Electrical Characteristics
Parameter Specification
Nominal Voltage 12.8V
Nominal Capacity 6Ah @ 0.2C
Energy 76.8Wh
Internal Resistance ≤70mΩ
Cycle Life 2000 Cycles @ 0.2C Charging/Discharging (Until 70% Capacity)
Self Discharge ≤3.5% per month at 25°C
Standard Charging
Parameter Specification
Max. Charging Voltage 14.0-14.6V
Charging Mode At 0°C-45°C temperature, charged to 14.6V at constant current of 0.2C5A
Charging Current 1.2A
Max. Charging Current 3A
Standard Discharging
Parameter Specification
Discharging Current 1.2A
Max. Discharging Current 6A
Max. Pulse Current 20A (<3S)
Discharging Cut-off Voltage 10V
Operating Conditions
Parameter Specification
Charge Temperature 0°C to 45°C (32°F to 113°F) @ 60±25% Relative Humidity
Discharge Temperature -20°C to 60°C (-4°F to 140°F) @ 60±25% Relative Humidity
Storage Temperature 0°C to 45°C (32°F to 113°F) @ 60±25% Relative Humidity
Water Dust Resistance IP55
Structure
Parameter Specification
Cell & Format IFR32700 N60, 4S2P
Casing Plastic
Dimension (L×W×H×TH) 90×70×101×107mm
Weight Approx. 0.75Kg
Terminal F2
Battery Cell Options

Customize your battery pack with preferred lithium battery cells:

  • 32700 or 18650 form factors
  • LiFePO4 or NCM chemistry
Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life
Performance Testing Data
Items Specification Remarks
Nominal Capacity 6000mAh 0.2 C5A Discharge
Nominal Voltage 3.2V
Discharge Cut-off Voltage 2.0V 0.2 C5A Discharge
Charge Limited Voltage 3.65±0.03V 0°C-45°C
Standard Charge Current 0.2 C5A 0°C-45°C
Standard Discharge Current 0.2 C5A -10°C to +60°C
Rapid Charge Current 0.5C5A 0°C-45°C
Rapid Discharge Current 0.5C5A -10°C to +60°C
Max. Discharge Current 3C5A Limited Voltage 2.0V
Max. Pulse Discharge Current 5C5A ms
Internal Impedance ≤10mΩ At AC 1kHz
Weight About 141g ±2g
Storage Temperature Range ≤1 month: -20°C-45°C
≤3 months: -20°C-35°C
≤1 year: -20°C-25°C		 Voltage of shipment: 2.8V-3.2V
Performance Characteristics
Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life
Internal Pack Structure
Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life
Applications
Customized 12.8V 6AH LiFePO4 Battery Pack with Bluetooth BMS and 2000 Cycles Life
Shipping & Delivery Information
USA Delivery
  • Shipping Method: Sea + Express (DDP, Tax Free)
  • ETD: 5-8 days
  • ETA: 25-35 days after sailing
  • Tracking updates available after local express pickup
EU Delivery
  • Shipping Method: Railway + Express (DDP, Tax Free) - Excluding Switzerland, Romania
  • ETD: 5-8 days
  • ETA: 30-45 working days after shipping
  • Tracking updates available after local express pickup

Note: For remote areas not listed, please provide shipping address and zip code for verification.

About Deligreen Power

Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider" specializing in lithium rechargeable batteries, BMS, balancers, chargers, and related products.

Our Commitment
  • Real lithium capacity as specified
  • 100% refund for any quality problems
  • 100% replacement for any shipping damage
  • Lifetime fast technical support
Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of Lithium Iron Phosphate (LiFePO4) batteries is 5-15 years or 2000 to 8000 charge cycles. One charge cycle represents use from fully charged to fully discharged and fully recharged again.
Where can I get the price?
Please contact us or request a quote. We provide the best quotation within 24 hours after receiving your product specifications including voltage, capacity, and application requirements.
How can you guarantee your quality?
We typically send samples for confirmation before production. Bulk orders match sample specifications exactly. We offer 1-year warranty for small battery packs and 2-3 years for larger battery systems.
What is your payment terms?
We accept T/T, L/C, PayPal, Western Union, Money Gram, Ali Express, and cash payments.
What kind of certificates do you have?
We provide CE, ROHS, MSD, and shipping certifications for our products.
