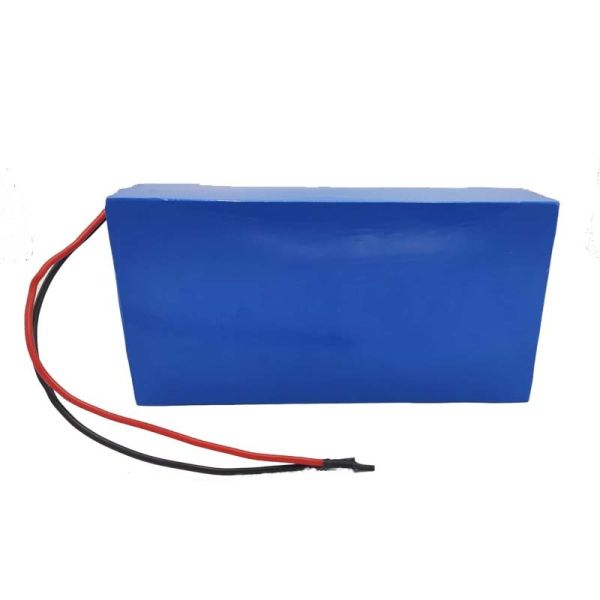

Custom 24V 50AH LiFePO4 Battery Pack with 2000 Cycle Life and PVC Shell
Custom 24V 50AH LiFePO4 Battery Pack with 2000 Cycle Life and PVC Shell
Specifications
Brand Name :
Deligreencs
Model Number :
18650-3200mah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
10000 pcs/day
Delivery Time :
15 working days
Packaging Details :
carton box
Nominal capacity :
50ah
Nominal voltage :
24V
cycle life :
2000 times
Internal impedence :
≤25MΩ
Rapid Charge Current :
0.5C5A
charge cut-off voltage :
3.65V
discharging cut-off voltage :
2.0V
Description
PVC Shell Cable LiFePO4 Customized Battery Pack 50AH 24V
Lithium Battery Pack 24V 50AH PVC Shell Cable Connection Lifepo4 Batteries
Understanding Lithium Batteries
Lithium batteries utilize lithium metal or lithium alloy as positive/negative electrode material with non-aqueous electrolyte solution.
  • Two main categories: lithium metal batteries and lithium ion batteries
  • Lithium-ion batteries do not contain metallic lithium and are rechargeable
Lithium Battery Types by Cathode Material
Cathode Material Chemical Composition Nominal Voltage Energy Density Cycle Life Cost Safety
LCO LiCoO2 3.7 V Medium Low High Low
LMO Li2Mn2O4 3.6V Low Medium Low Medium
LNO LiNiO2 3.6V High Low High Low
LFP LiFePO4 3.2 V Medium High Low High
NCA LiNixCoyAl(1-x-y)O2 3.6V High Medium Medium Low
NCM LiNixCoyMn(1-x-y)O2 3.6V High High Medium Low
Custom Battery Pack Requirements
Complete this sheet for precise pricing:
Questions Answer
Customer Name
Product Application
Battery cell requirement
Nominal voltage and capacity
Cut-off charge voltage
Charge current
Max continuous Discharge
Peak current time
BMS dimension
Battery pack dimensions(mm)
Outer box requirement
Communication protocol
Coding requirement
Label requirement
Other requirements
Battery Technology Comparison
Custom 24V 50AH LiFePO4 Battery Pack with 2000 Cycle Life and PVC Shell
Battery Type LiFePO4 Battery Lead Acid Battery
Nominal voltage3.2V2V
Energy density180Wh/kg30WH/KG
WeightLightHeavy
CBMSmallBig
Safety rateHighLow
Cycles3500500
MemoryNOYES
Environmental protectionEnvironmental protection and pollution-freePollution
Lead acid batteries are older technology widely used in applications like e-motorcycles, scooters, and e-bikes. With advancing technology, lithium batteries offer higher capacity, lighter weight, and smaller size.
Lithium battery packs provide over 2000 cycles compared to lead acid's approximately 500 cycles, meaning you would need 3-4 lead acid batteries to match lithium battery lifespan.
Custom 24V 50AH LiFePO4 Battery Pack with 2000 Cycle Life and PVC Shell
This PVC pack offers more than 2000 cycle life - 3 times longer than lead acid batteries.
Lithium battery is the trend to replace lead acid battery
Why Choose Deligreen for Lithium Battery Packs?
Lithium battery packs are complete systems containing lithium batteries, BMS, and outer boxes, widely used in RV, caravan, solar systems, camping, energy storage, LED street lamps, golf carts, marine applications, boats, e-cars, motorcycles, and more.
Customization requires these important parameters:
  • Battery pack application
  • Battery cell: LFP or NCM (determines price, size, specifications)
  • Nominal current and voltage
  • Max continuous discharge
  • Battery pack size
  • Outer box material: plastic, iron, epoxy board
Deligreen supplies customized battery packs with BMS or without BMS options. Our expertise helps you find the optimal solution.
3.2V 1500mAh 18650 Lithium Phosphate LiFePO4 Battery Parameters
Items Specification Remarks
Nominal Capacity1500mAh0.2 C5A Discharge
Nominal Voltage3.2V
Discharge Cut-off Voltage2.0V0.2 C5A Discharge
Charge Limited Voltage3.65±0.03V0℃～45℃
Standard Charge Current0.2 C5A0℃～45℃
Standard Discharge Current0.2 C5A-10℃~ +60℃
Rapid Charge Current0.5C5A0℃～45℃
Rapid Discharge Current0.5C5A-10℃~ +60℃
Max. Discharge Current3C5ALimited Voltage 2.0V
Max. Pulse Discharge Current5C5Ams
Internal Impedance≤30mΩAt AC 1kHz
WeightAbout 42g±2g
Storage Temperature Range≤one month: -20℃ ~ 45℃ (Voltage of shipment 3.2V～3.4V)
≤three months: -20℃ ~ 35℃
≤a year: -20℃ ~ 25℃
Applications
Custom 24V 50AH LiFePO4 Battery Pack with 2000 Cycle Life and PVC Shell
Transportation & Delivery
Shipment to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updates after local express pickup (15-25 days after sailing)
Shipment to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updates after local express pickup (25-40 working days after shipping)
For remote areas not listed, please provide shipping address and zip code for verification.
About Deligreen
Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider" specializing in newest technology, innovative ideas, and dedicated professionals.
Focus Areas: Lithium rechargeable batteries, BMS, Balancers, Chargers, and related products for electric bicycles, scooters, motorhomes, AGVs, solar/wind systems, energy storage systems, trucks, and more.
Our Promises:
• "Real" lithium capacity
• "100%" refund for any quality problem
• "100%" replacement for any shipping damage
• Lifetime fast technical support
Customer satisfaction is our endless pursuit.
