Specifications
Brand Name :
Winston
Model Number :
12V40AH
Certification :
CE/UL
Place of Origin :
china
MOQ :
1
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
100 pcs/day
Delivery Time :
15 working days
Packaging Details :
cartons
Nominal Capacity :
40AH
Nominal Voltage :
12V
Internal Resistance :
≤5mΩ
Cycle Life :
5000 times
Size :
225*125*208mm
Description
LiFePO4 40ah 12v Lithium Ion Battery For Solar System & Electric Car
Winston Lithium Ion Solar Battery 12v 40ah For Solar System

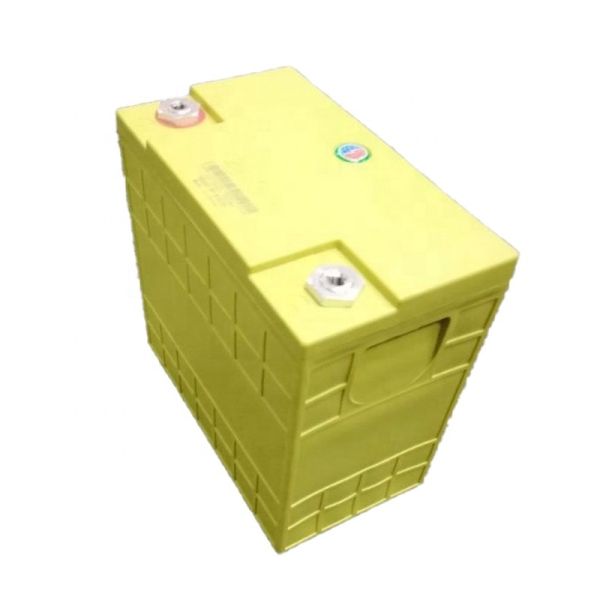

12V40Ah Winston LiFePO4 Lithium battery pack

The battery pack is 12V40AH with 4 40Ah LiFePO4 cells in series. We supply brand new Grade A Winston battery, which is widely used in small energy storage systems and solar power station/home energy storage systems.

MODEL NO: TS-LP12V40AH

Nominal Capacity: 40AH

Operating Voltage: 11V~16V

Weight: 7kg±100g

Dimensions: 225×125×208(mm)

Parameter Value
Charge Voltage 4.0V
Discharge Voltage 2.8V
Max Charge Current ≤3CA
Max Discharge Current (Constant) ≤3CA
Max Discharge Current (Impulse) ≤20CA
Standard Charge/Discharge Current 0.5CA
Cycle Life (80% DOD) ≥3000 Times
Cycle Life (70% DOD) ≥5000 Times
Temperature Durability Of Case ≤200℃
Operating Temperature (Charge) -45℃～85℃
Operating Temperature (Discharge) -45℃～85℃
Self-discharge Rate (Monthly) ≤3%
12V 40AH Starting Power Battery

The monolithic 12V batteries do not have any PCM (any electronics) inside. They consist of finely balanced cells with identical performance. The battery must be managed and operated as a single monolithic 12V block.

We do not recommend operation in serial connection. For systems with higher voltage (24/36/48V and more), we recommend using Single cells 40Ah + BMS123Smart.

  • Nominal voltage: 12V
  • Operational voltage: 11.5V - 15V
  • Maximum charging voltage for initial charge: 15V
  • Recommended subsequent charging: 14.6V
  • Minimum voltage: 11V
  • Maximum discharge current: 3C continuously for max 30 minutes from full charge
  • Operating temperature: -25°C up to 80°C (discharging)
Applications
12V 40AH LiFePO4 Lithium Ion Battery with 5000 Cycle Life for Solar Systems and Electric Cars
Transportation & Delivery

Shipping to USA: By sea + Express (DDP, Tax free)

  • ETD: 5-8 days
  • ETA: 25-35 days after sailing (This is the delivery time for most orders. Please wait patiently or contact us online)
  • The tracking will be updated after pick up by local express. Usually it will take around 15-25 days after sailing.

Shipment to EU: By railway + Express (DDP, Tax free). Except Switzerland, Romania

  • ETD: 5-8 days
  • ETA: 30-45 working days after shipping (This is the delivery time for most orders. Please wait patiently or contact us online)
  • The tracking will be updated after pick up by local express. Usually it will take around 25-40 working days after shipping.

Other: Some remote areas not listed. Please provide shipping address and zip code to us to check.
