4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
Specifications
Brand Name :
Ganfeng
Model Number :
100Ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
negotiable
Payment Terms :
D/A,D/P,T/T,paypal
Supply Ability :
1000pcs/day
Delivery Time :
15 days
Packaging Details :
carton box
Nominal voltage :
3.2V
Nominal capacity :
100AH
cycle life :
4000 times
Internal impedence :
≤0.40mΩ
MCC :
100A
MCDC :
100A
Net Weight :
2.28±0.2 Kg
size :
72*174*204mm
Description
4000 Times 3.2V 100ah Lifepo4 Battery Cell With Screw
Product Overview

New Deep Cycle 4000 times 3.2V 100ah Cell 24V 48V Lithium Ion Pack Lifepo4 Battery with screw for electric vehicles and energy storage applications.

Product Name 3.2V 100AH
Battery Type Lifepo4 Battery
Nominal Voltage 3.2V
Nominal Capacity 100AH
Charge Voltage 3.65V
Discharge Cut-off Voltage 3.65V
Internal Resistance ≤0.40mΩ
Max Charge Current 100A
Max Discharge Current 100A
Charge Temperature 0~45°C
Discharge Temperature -20~60°C
Storage Temperature -20~45°C
Cycle Life 4000 times, DOD at 80%
Weight About 2.28±0.2 kg
Dimensions 174×48×132.2 mm

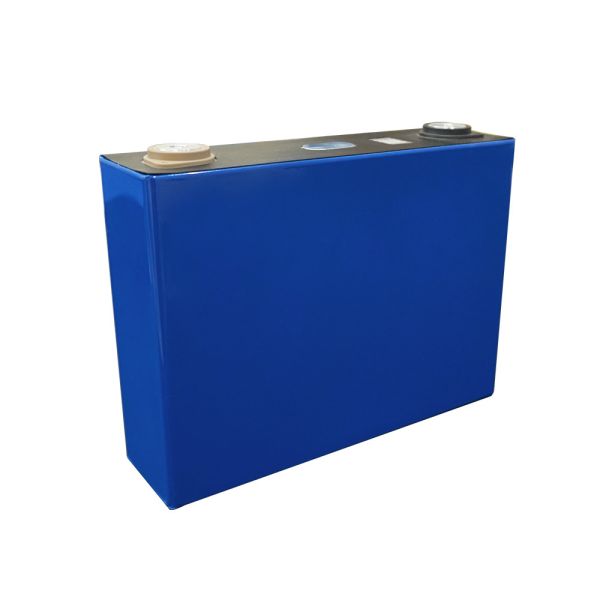

3.2V LiFePO4 100AH large capacity battery with aluminum housing construction.

Performance Characteristics
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications 4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications

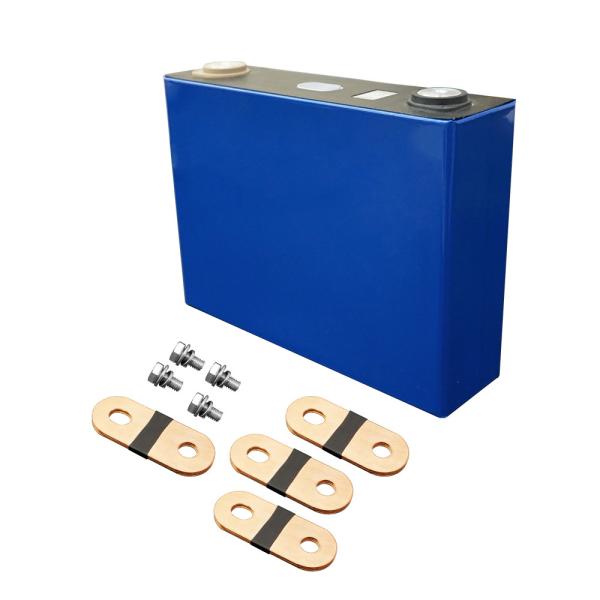

Connection System

Screw-connected prismatic battery cell designed for easy mounting and connection with bus bars/screws. Ideal for DIY projects and custom battery pack assembly.

4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
DIY Safety Guidelines
  • Exercise caution when working with electrical equipment
  • Wear safety glasses and gloves when appropriate
  • Ensure cells are within operating temperature range prior to use
  • Do not use if cells are punctured, damaged, or leaking
  • Provide adequate protection to cells during assembly and use
  • Dispose of properly at recycling facilities
  • Do not submerge in water
  • Avoid contact with direct heat, extreme temperatures, or fire
  • Prevent harsh impacts or extreme vibrations
Applications

Deep cycle design with over 2000 cycles lifespan. Longer service life than lead acid batteries. Suitable for numerous applications including:

  • Golf carts
  • RVs and motorhomes
  • Solar storage systems
  • E-motorcycles
  • Home energy storage systems
  • Powerwall installations
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications 4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications 4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications 4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications 4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
Shipping & Delivery
USA Delivery
  • Shipping Method: Sea + Express (DDP, Tax Free)
  • ETD: 5-8 days
  • ETA: 25-35 days after sailing
  • Tracking updates after local express pickup
  • Typically 15-25 days after sailing
EU Delivery
  • Shipping Method: Railway + Express (DDP, Tax Free)
  • Excludes: Switzerland, Romania
  • ETD: 5-8 days
  • ETA: 30-45 working days after shipping
  • Tracking updates after local express pickup
  • Typically 25-40 working days after shipping

For remote areas not listed, please provide shipping address and zip code for verification.

About Deligreen Power

Changsha Deligreen Power Co., LTD, founded in 2010, is a "Green Energy Solution Service Provider" specializing in lithium rechargeable batteries, BMS, balancers, chargers, and related products.

Our Commitment
  • Real lithium capacity as specified
  • 100% refund for any quality problems
  • 100% replacement for shipping damage
  • Lifetime technical support
4000 Cycles 3.2V 100AH Lifepo4 Battery Cell with Screw Connection for Deep Cycle Applications
Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of Lithium Iron Phosphate (LiFePO4) batteries is 5-15 years or 2000 to 8000 charge cycles. One charge cycle represents use from fully charged to fully discharged and fully recharged.
Where can I get the price?
Please contact us or request a quote. We provide the best quote within 24 hours after receiving product specifications including voltage, capacity, and application requirements.
How can you guarantee your quality?
We typically send samples for confirmation before production. All orders are manufactured exactly as requested. We offer 1-year warranty for small battery packs and 2-3 years for larger battery systems.
What is your payment terms?
We accept T/T, L/C, PayPal, Western Union, Money Gram, Ali Express, and cash payments.
What kind of certificates do you have?
We provide CE, ROHS, MSD, and shipping certifications for our products.
