Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Specifications
Brand Name :
Deligreen
Model Number :
2.4v40ah
Certification :
CE/FCC/ROHS
Place of Origin :
china
MOQ :
4
Price :
Negotiable
Payment Terms :
D/A,D/P,T/T,Western Union
Supply Ability :
1000pcs/day
Delivery Time :
15 working days
Packaging Details :
carton box
Nominal capacity :
40ah
Nominal voltage :
2.4v
Internal impedence :
≤0.5MΩ
cycle life :
20000 times
MCC :
320A
MCDC :
800A
Net Weight :
1050g
size :
60*165mm
Description
Never Used Genuine LITHIUM TITANATE 40ah 60165 Cells 2.3V 2.4V Car Audio Bass
Brand new never used genuine LITHIUM TITANATE 40ah 60165 cells 2.3V 2.4V designed for Car Audio Bass applications.
Technical Specifications
Item Parameters Remark
Rated Capacity 40ah
Nominal Voltage 2.4V
Internal Impedance ≤0.5mΩ Internal resistance measured at AC 1kHz after 50% charged
Standard Charge Cut-off Voltage 2.8V
Standard Discharge Cut-off Voltage 1.5V
Maximum Continuous Charge Current 4C(160A) 25℃±5℃
Maximum Continuous Discharge Current 8C(320A) 25℃±5℃
Maximum Pulse Charge/Discharge Current (10s) 20C(800A) 10 sec

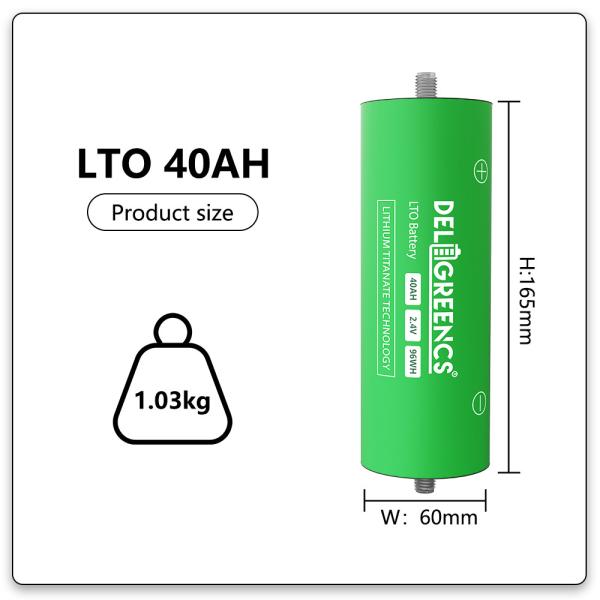

Dimension Diameter: 60.0±1.0mm Height: 165.0±1.0mm Detailed dimension available in specification document
Weight 1050.0±10g
Product Images
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Key Advantages
  • Safest Lithium chemistry with high energy density
  • Built-in automatic protection for over-charge, over discharge, over current and over temperature
  • Efficient & long-lasting up to 20000+ cycles
  • Energy capacity hours of 40AH last 1HR
  • Internal cell balancing
  • Wide temperature range: -40℃ to 60℃
  • <3% yearly discharge storage with triple safety protection
  • High capacity system with 40AH
About LTO/Lithium Titanate Batteries
  • Lithium titanate battery (LTO) uses lithium titanate as negative electrode material
  • Can be combined with lithium manganate, NCM materials or lithium iron phosphate
  • Forms 2.4V or 1.9V lithium ion secondary battery
  • Deep cycle capability with more than 25000 cycles
  • Excellent option for solar energy systems
  • Ideal for street lamps, home power walls, solar systems, etc.
  • Yinlong 66160 can discharge at 10C rate
Fast Charging Capability
Deep cycle 25000 times 2.3V 35ah specification with charging in 6 minutes
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Yinlong technology of fast charging can make the time of charging 6-10 minutes
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Safety Testing
Comprehensive safety testing including cutting, over charge and discharge, burning, drilling, stabbing, and stabbing in water
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Product Notes
  • Genuine Yinlong LTO 35ah 66160 cell
  • M12 screws and busbars available as optional accessories
  • Production year: 2018
  • Cut off terminals and welded again
Extended Lifespan

Lifecycles ≥25000 times: The structure of Lithium titanate is spinel with lattice parameter increasing from 0.836 to 0.837 ΜM, volume change only 0.3%, and minimal structural change ensuring excellent cycle stability.

In comparison, graphite materials experience 10% volume change rate during charging/discharging, leading to pulverization and reduced cycle life.

Applications
  • Intensive energy storage station
  • Home energy storage
  • Charging pile
  • E-bus/E-car
  • Electric tools
  • Forklift
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Customer Case Studies
Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems Genuine Lithium Titanate Battery 40ah with 20000 Cycles and Fast Charging for Car Audio and Solar Systems
Shipping & Delivery

Shipping to USA: By sea + Express (DDP, Tax free)
ETD: 5-8 days
ETA: 25-35 days after sailing
Tracking updated after pickup by local express (15-25 days after sailing)

Shipping to EU: By railway + Express (DDP, Tax free) - Except Switzerland, Romania
ETD: 5-8 days
ETA: 30-45 working days after shipping
Tracking updated after pickup by local express (25-40 working days after shipping)

Other: For remote areas not listed, please provide shipping address and zip code for verification.

About Yinlong
Yinlong is a global comprehensive new energy industry group that integrates Titanium core materials, batteries, electric motor control, charging equipment, intelligent energy storage systems, and pure electric vehicle research, development, production and sales. Yinlong is well known as a leading LTO battery supplier and also researches and produces E-BUS systems.
Frequently Asked Questions
What is the life expectancy of a Lithium battery?
The typical estimated life of the LTO battery is 20000 to 25000 charge cycles. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again.
Where can I get the price?
Please contact us or request a quote. We will provide the best quote within 24 hours after receiving your product specifications including voltage, capacity, and application requirements.
How can you guarantee your quality?
We normally send samples for confirmation before production. All orders are manufactured exactly as requested. We offer 1 year warranty for small battery packs and 2-3 years for larger battery systems.
What is your term for payment?
We accept T/T, L/C, Paypal, Western Union, Money Gram, Ali Express, Cash, and other payment methods.
What kind of certificates do you have?
We provide CE, ROHS, MSD, and shipping certifications.
