Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
Specifications
Brand Name :
Seplos
Model Number :
280Ah
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
D/P, T/T, Western Union
Supply Ability :
1000pcs/day
Delivery Time :
10 days
Packaging Details :
carton box
Size :
820*510*332mm
Cycle life :
more than 2000times
Application :
battery pack
Nominal voltage :
51.2V
Warranty :
3 Years
Nominal capacity :
50ah/100ah/200ah/300ah
Weight :
30KG
Description

2023 Hot Seller Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms

Basic Parameters 280
Nominal Voltage (V) 51.2V
Nominal Capacity (Ah) 280Ah @0.5C discharge current 25±2℃
Nominal Power (Wh) 14.3KWh
Dimension (mm) 750*440*251mm
Weight(Kg) 112±5KG
Discharge Cut-off Voltage (v) 41.6V
Charge Voltage (v) 57.6V
Continuously Charge/Discharge Current(A) 140A@25±2℃(Recommended)
Max Standard charge/discharge current (A) 200A @25±2℃
Standard charge/discharge Current(A) 140A@25±2℃(Recommended)
Max Standard charge/discharge Current (A) 200A @25±2℃
Working Temperature 0～50°C(Charge)
-10~50℃(Discharge)
-20~55℃(Storage)
SOC Range 5%-100%
Recommended SOC Range 15-95%

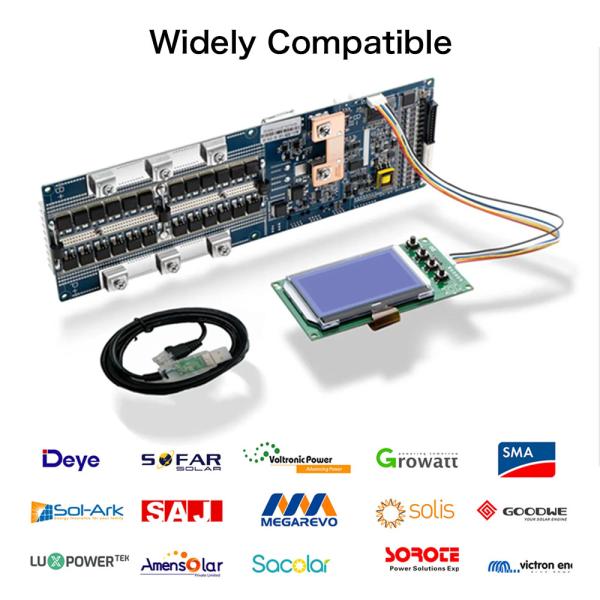

Communication Interface CAN (Default)or RS485
Humidity 10%-85%
IP level lP 20

This is the new launched item---16S 48V 280AH/320AH DIY Battery kits, BMS included, support communication with inverters for RS 485 and CAN.For a DIY users, only need to buy 16pcs battery cells+ this kits, more professional and beautiful.

Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms

ADVANTAGES:
1. Build a 48V 280AH/320AH battery pack more professional and easier.2. Cost saving and time saving.
3. Safer
4. Installation easily, and beautiful.
5. Support parallel and rack mounted.
6. All accessories included, even a screw.
7. LCD included, monitor your battery cells clearly.

Diy Kit Battery 16S 48V 230Ah 280Ah 320Ah Lifepo4 Battery Box With Seplos Bms
