5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
Specifications
Brand Name :
TONGBOND
Model Number :
Wall mounted energy storage
Certification :
CE
MOQ :
3
Payment Terms :
T/T;Visa/PayPal
Supply Ability :
1000 Pieces Per Week
Delivery Time :
7 Working Days
Packaging Details :
UN-certified Packaging
Place of Origin :
China
Price :
USD 548~USD 1057
Keywords :
Energy Storage LiFePO4 Battery
Color :
White or customize
Nominal Capacity :
200Ah
Battery Life :
6000 Cycles
Communication Function :
RS232/RS485/CAN
Application :
Home and Commercial
Shell material :
spcc
Original :
China
Description

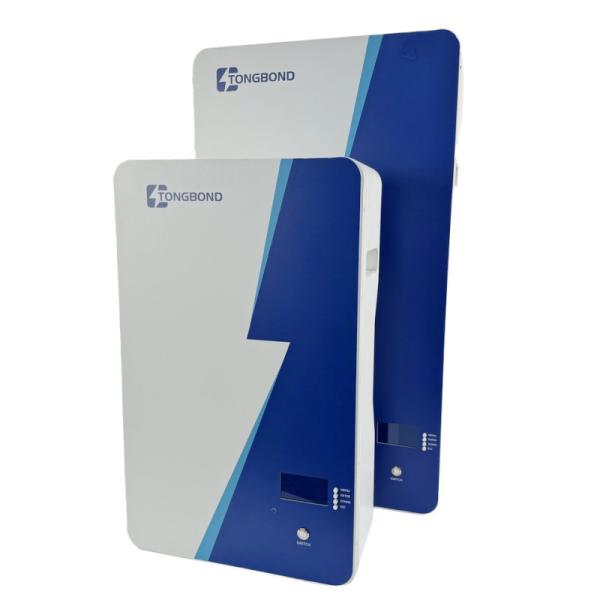

5KW 10KW Solar Energy Storage System
High Efficiency Maximizing Solar Energy Harvest

Discover our reliable energy storage solution featuring a clear LCD display that shows power data and operational status. Built with high-quality LiFePO4 batteries for safety, deep cycling, and long service life. The rounded edge design prevents accidental bumps, while the external main switch allows quick power cutoff for enhanced safety. Includes wall brackets for easy installation.

Integrated BMS provides protection against over-voltage, over-load, and over-temperature conditions. Compatible with various loads within the appropriate voltage range and supports parallel connection of up to 15 units.

5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
Technical Parameters
Model 5KW series 10KW series
Nominal capacity 100Ah 200Ah
Nominal voltage 51.2V 51.2V
Efficiency ≥95% ≥95%
Inner Resistance 10mΩ 7mΩ
Cell type LFP 3.2V/100Ah LFP 3.2V/200Ah
Charge voltage 43.2-57.6V 43.2-57.6V
Standard charging current 20A 40A
Max charging current 100A 100A
Standard discharging current 20A 40A
Max discharging current 100A 100A
Peak Discharging current 200A(3S)
Discharge cut-off voltage 42V
Charging temperature range 0~55℃
Discharging temperature range -10℃～55℃
Storage temperature range -5℃～40℃
Self discharge 2% per month
Package method 1 pcs per carton
Size (LxWxH) 620*380*160 mm 840*478*160 mm
Packaging size (LxWxH) 725*485*385 mm 945*590*375 mm
Net Weight 40±5Kg 80±5Kg
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
Applications

The household wall-mounted lithium battery is a versatile energy storage solution suitable for various applications:

  • Integrates seamlessly with wind power and solar systems for efficient renewable energy storage
  • Provides stable backup power for telecom applications to ensure uninterrupted communication
  • Ideal for solar street lighting, offering consistent nighttime illumination
  • Supports breeding and animal husbandry operations with reliable off-grid energy
  • Acts as dependable power backup in UPS (Uninterruptible Power Supply) systems during outages
Product System Application
5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
Packing and Shipping

Our LiFePO4 Lithium Battery is carefully packaged to ensure safe delivery. Each battery is securely wrapped and placed in a sturdy box with appropriate cushioning materials to prevent damage during transit.

We partner with reliable courier services for efficient and secure delivery. All shipments are tracked to provide real-time updates on delivery status.

5KW 10KW Solar Energy Storage System High Efficiency Maximizing Solar Energy Harvest
Frequently Asked Questions
Can I use this battery with a generator?

Yes, it's possible. You need a proper transfer switch and must ensure the generator's output voltage and frequency are compatible with the battery and its connected inverter. The transfer switch manages power flow between the generator, battery, and your loads. Ensure the generator has sufficient power capacity to recharge the battery if needed.

How does the battery's performance change over time?

Initially, you'll get optimal performance. Over years of use, factors like charge-discharge cycles may gradually reduce the battery's capacity. However, proper maintenance and following recommended usage guidelines (such as charging within the 0.2C - 0.5C range) can slow this degradation. Regularly monitor the battery's voltage and capacity to gauge its health.

Are there any specific fire safety requirements for this wall-mounted lithium battery?

The battery casing is made of fire-retardant material. Still, keep flammable materials away from it. Install in a well-ventilated area and have a fire extinguisher suitable for electrical fires nearby. In case of fire, immediately cut off power to the battery and call the fire department.
