Compact Lifepo4 Battery Pack With BMS 6000 Cycles For Solar RV Marine Use
Compact Lifepo4 Battery Pack With BMS 6000 Cycles For Solar RV Marine Use
Specifications
Brand Name :
TONGBOND
Model Number :
EA-12V-100Ah
Certification :
CE
Place Of Origin :
China
MOQ :
5
Payment Terms :
T/T;Visa/PayPal
Supply Ability :
1000 Pieces Per Week
Delivery Time :
7 Working Days
Packaging Details :
UN-certified Packaging
Price :
USD 127~USD 268
Battery type :
Lithium Iron Phosphate Battery
Description
Compact LiFePO4 Battery Pack With BMS - 6000 Cycles For Solar, RV & Marine Use
The LiFePO4 Battery is an ideal energy storage solution that combines compactness, light weight, and portability, specifically engineered for renewable energy applications. With an exceptional lifespan exceeding 6,000 cycles, it offers outstanding durability and operational efficiency. The battery's high energy density and stable power output make it perfectly suited for solar energy storage, RV setups, marine environments, and off-grid power systems.
Integrated with a sophisticated Battery Management System (BMS), this battery provides comprehensive protection against overcharging, deep discharge, overcurrent, short circuits, and extreme temperatures. Engineered for reliability and safety, this LiFePO4 battery serves as a dependable, user-friendly power solution capable of meeting diverse energy requirements with straightforward installation.
Compact Lifepo4 Battery Pack With BMS 6000 Cycles For Solar RV Marine Use
Technical Parameters

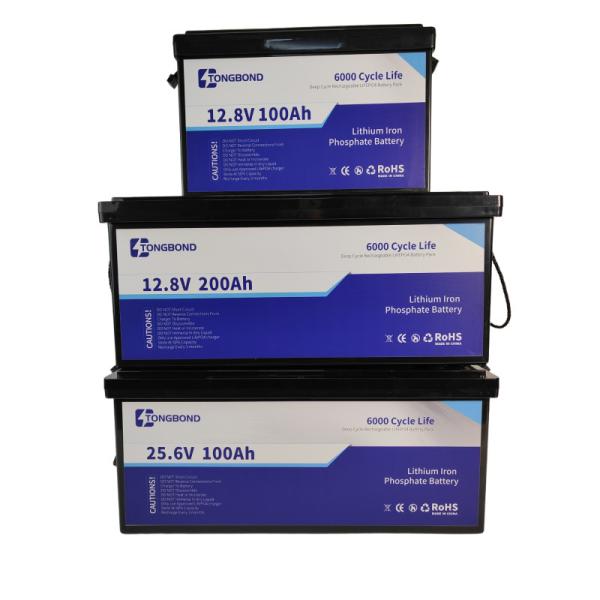

Model EA-12V-100Ah EA-12V-200Ah EA-24V-100Ah
Nominal voltage 12.8V 12.8V 25.6V
Nominal capacity 100AH 200AH 100AH
Energy 1280WH 2560WH 2560WH
Cell assembly 3.2V100AH - 4S1P 3.2V100AH - 4S2P 3.2V100AH - 8S1P
Dimension (mm) 330×173×221 522×238×222 522×238×222
Weight (KG) 11±0.5Kg 21±1Kg 21±1Kg
Cycle Life >6000 (25℃, @0.5C 100%DOD)
Charging voltage 14.4-14.6V 14.4-14.6V 28.8-29.2V
Discharge cut-off voltage 10V±0.5V 10V±0.5V 20V±0.5V
Maximum discharge current 100A 100A 100A
Maximum charging current 50A 100A 50A
Discharge temperature 20℃~55℃
Charging temperature 0℃~55℃
Storage temperature (within a month) -20℃~45℃
Storage temperature (within a year) 0℃~35℃
Series connection 4 4 2
Parallel connection 4 (Need to control the battery at the same voltage)
Compact Lifepo4 Battery Pack With BMS 6000 Cycles For Solar RV Marine Use
Applications
Our LiFePO4 lithium batteries are designed for a wide range of applications, ensuring reliable and efficient power. They are ideal for home energy storage, solar street lights, RVs, base station backup, electric wheelchairs, power boating, golf carts, UPS systems, and electric vehicles (EVs). With long cycle life, high safety, and stable performance, they provide sustainable energy solutions for both residential and commercial needs.
Compact Lifepo4 Battery Pack With BMS 6000 Cycles For Solar RV Marine Use
Packing and Shipping
Our LiFePO4 lithium battery is meticulously packed to guarantee safe arrival. Each unit is securely enclosed in protective wrapping and placed in a durable box with cushioning materials to prevent any damage during transportation.
We collaborate with trusted shipping services to ensure fast and secure delivery. Every shipment includes tracking, allowing you to monitor your order in real time.
Compact Lifepo4 Battery Pack With BMS 6000 Cycles For Solar RV Marine Use
Frequently Asked Questions
Can I safely use this 24V LiFePO4 battery indoors?
Yes, it comes with an integrated Battery Management System (BMS) that protects against overheating, overcharging, and short circuits, ensuring safe indoor operation.
What is the estimated charging time for this battery?
The charging duration varies depending on the charger's power output, but with a suitable high-efficiency charger, it typically takes between 4 to 6 hours.
Is it possible to connect this battery in series or parallel?
Yes, it supports both configurations, allowing users to expand voltage or capacity to meet different energy requirements.
Can this battery withstand shocks and vibrations?
Yes, its robust construction enhances resistance to impact and vibrations, making it well-suited for applications like RVs, marine use, and mobile power systems.
Does this battery allow for rapid charging?
Yes, it is compatible with fast-charging systems, enabling quicker energy replenishment when paired with an appropriate charger.
