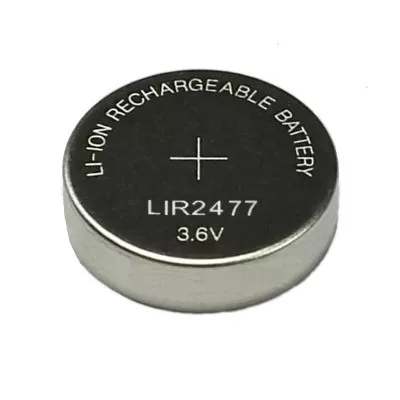

LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
Specifications
Model Number :
LIR2477
Certification :
CE UL MSDS UN38.3
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
35 working days
Packaging Details :
Industrial Pakcage
Battery Type :
Lithium Button Battery
Model :
LIR2477
Voltage :
3.6V
Capacity :
200mAh
Dimension :
Diameter 24.5mm Height 7.7mm
Weight :
8g
Cycle Life :
More than 500Cycles
Operation Teerature :
-20-60 degree
Description

Rechargeable Button Battery LIR2477 3.6V 200mAh Lithium Button Cell Coin Battery

Features

1. High Energy Density: Provides substantial power in a compact form factor suitable for space-constrained applications.

2. Stable Voltage Output: Maintains relatively stable voltage throughout most of the discharge cycle.

3. Wide Operating Temperature: Widely application with working teerature -20 degree to 60 degree.

4. Low Self-Discharge: Retains charge well when not in use.

5. No Memory Effect: Can be recharged at any state of charge without capacity reduction.

Specification

Lithium ion Button battery LIR2477 3.6V rechargeable Coin cell
Normal Capacity 200mAh
Normal Voltage 3.6V
Dimension Diameter :24.5*Height 7.7mm
Weight 8g
Operating Temperature

Charge: 0°C to 45°C;

Discharge: -20°C to 60°C
Storage Temperature

-20°C to 45°C

(Recommended: 20-25°C)
Self-Discharge Rate <3% per month
Cycle Life More than 500Cycles

LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell

Applications

  • Memory Backup Power: CMOS batteries for motherboards, BIOS chips, and embedded systems.
  • Portable Electronics: Small devices like calculators, laser pointers, and LED lights.
  • Medical Devices: Hearing aids, medical sensors, and portable monitoring equipment.
  • IoT Devices: Sensors, beacons, and small wireless communication devices.
  • Security Devices: Electronic locks, alarm systems, and access control devices.
  • Wearable Technology: Fitness trackers, smart watches, and health monitors.

Warnings & Precautions

Charging Precautions:

  • Use only chargers specifically designed for lithium-ion coin cells

  • Never exceed maximum charging voltage of 4.2V

  • Do not charge at temperatures below 0°C or above 45°C

  • Discontinue use if battery becomes hot, swollen, or damaged during charging

  • Charge in well-ventilated areas

Discharging Precautions:

  • Avoid deep discharge below 3.0V

  • Do not exceed maximum continuous discharge current of 200mA

  • Never short-circuit the battery terminals

  • Avoid reverse polarity installation

Storage & Handling:
  • Store in cool, dry environment (20-25°C ideal)
  • Maintain charge level at 40-60% for long-term storage
  • Keep away from water, moisture, and direct sunlight
