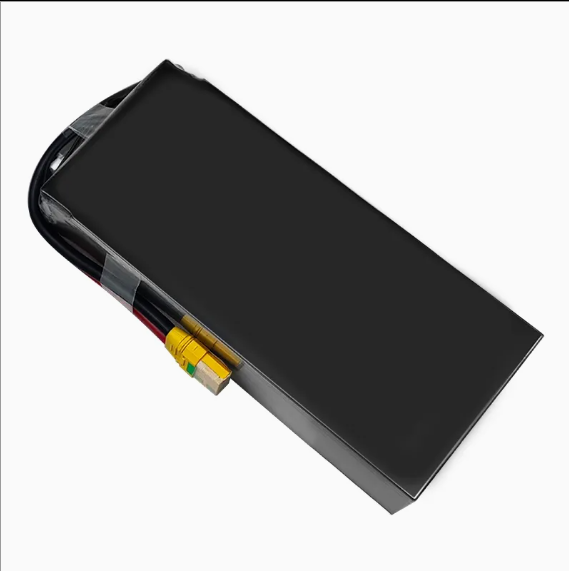

100c 78000mAh 23.7V Semi Solid State Lipo Battery for Drones

Features

1. Exceptional Power Density: The 100C continuous discharge rating provides immense power for demanding applications like heavy-lift drones and racing FPV drones, enabling high thrust and rapid acceleration .

2. Semi-Solid State Safety: The semi-solid (e.g., gel-polymer) electrolyte is less flammable than conventional liquid electrolytes, significantly enhancing resistance to leakage, thermal runaway, and improving overall safety .

3. High Energy Capacity: With 78Ah (1.85 kWh), this battery is designed for extended flight times, making it suitable for long-endurance missions .

4. High Discharge Platform & Stability: Maintains a high and stable voltage during discharge, ensuring consistent power output to keep your equipment performing optimally .

5. Robust Build Quality: Designed to meet rigorous safety standards such as UN38.3, IEC, and UL .

Specification

Applications

• Heavy-Lift Drones: For cinematic cameras, delivery packages, or industrial sensors.

• Long-Range FPV Drones: For mapping, surveying, and inspection missions.

• Racing Drones: Where maximum burst power is critical for performance.

• Industrial UAVs: For agricultural spraying, public safety, and search-and-rescue operations.

Warnings & Safety Instructions

Charging

• Use a Balanced Charger: Always use a high-quality balance charger designed for 6S LiPo batteries to ensure all cells charge evenly.

• Never Leave Unattended: Never charge the battery unattended. Charge on a non-flammable surface (e.g., concrete, ceramic) inside a fireproof LiPo safety bag or container .

• Monitor Temperature: Charge within the 0°C to +45°C temperature range. If the battery becomes warm to the touch, stop charging immediately .

• Set Correct Parameters: Manually set the charger to the correct cell count (6S) and voltage (25.2V). The charge current should not exceed the maximum specified charge current .

Discharging & Use

• Avoid Over-Discharging: Never discharge below 18.0V (3.0V per cell). To prolong battery life, end your flights when the voltage reaches 19.8V (3.3V per cell) under load .

• Monitor Temperature in Flight: After use, allow the battery to cool down to room temperature before recharging .

• Inspect Before Each Use: Check for any physical damage, swelling, puffing, or unusual odors. Do not use a damaged battery .

Storage

• Storage Voltage is Critical: For long-term storage (longer than a few days), discharge or charge the battery to a storage voltage of 22.2V - 23.0V (3.7V - 3.8V per cell). Storing a battery fully charged or fully discharged will permanently damage it .

• Storage Environment: Store in a cool, dry place (ideally 10°C - 25°C) away from direct sunlight and moisture. Use a fireproof container .
