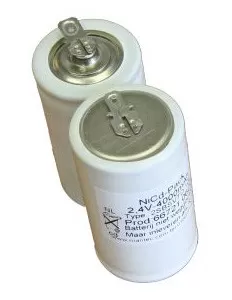

2.4V Ni-Cd Emergency Lighting Battery D4000mAh High Capacity 132g
2.4V Ni-Cd Emergency Lighting Battery D4000mAh High Capacity 132g
Specifications
Model Number :
D-D4000mAh
Certification :
CE,ROHS, UL,REACH,KS
Place of Origin :
China
MOQ :
1000PCS
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
35 working days
Packaging Details :
Industrial Pakcage
Name :
Emergency Lighting Battery
voltage :
1.2V
capacity :
4000mAh
weight :
132g
Size :
33.0*61.8mm
Internal Resistance :
≤12mΩ
Self-Discharge Rate :
15-20% per month (at 20°C)
cycle life :
up to 1000
Warranty :
4 years
Description

2.4V Ni-Cd Emergency Lighting Battery D4000mAh High Capacity

Features

  1. High Capacity Design: 4000mAh provides extended runtime for emergency systems

  2. Optimized for Float Charging: Specifically designed for continuous standby operation

  3. Wide Temperature Range: Reliable performance from -20°C to 60°C

  4. Long Cycle Life: 500+ cycles with proper maintenance

  5. Low Self-Discharge: Excellent charge retention during standby

  6. Maintenance-Free: Sealed construction requires no watering

  7. Overcharge Tolerant: Withstands continuous float charging conditions

Specifications

Model

D-D4000mAh 2.4V

Dimension

33.0*61.8mm (Diameter*Height)

Voltage

2.4V

Capacity

4000mAh

Iedance

<12 mΩ

Discharge cut-off voltage

1.0V

Maximum Charge voltage

1.4V

Standard charge current

0.1C (400mA) for 14-16 hours

Standard discharge current

0.2C

Weight

132g

Working teerature

Charge:0-45 degree

Discharge:-20-60 degree

Storage teerature

minus 20 - 35degree

Self-Discharge Rate

15-20% per month (at 20°C)

Cycle life

500-1000 cycles

2.4V Ni-Cd Emergency Lighting Battery D4000mAh High Capacity 132g

Application

  • Emergency Lighting Systems: Maintained and non-maintained emergency luminaires.

  • Exit Signs: LED and incandescent exit signage.

  • Central Battery Systems: Small-scale emergency power units.

  • Security Lighting: Emergency backup for security systems.

  • Fire Safety Equipment: Emergency power for fire alarm systems.

  • Emergency Exit Lights: Self-contained emergency lighting fixtures.

Warnings & Precautions

Installation Precautions

  • Ensure correct polarity during installation

  • Check battery compartment dimensions and terminal type

  • Secure battery properly to prevent movement

  • Use only in UL-listed emergency lighting equipment

Charging Precautions

  • Float Charge Voltage: Maintain 2.8V-2.9V for continuous operation

  • Temperature Monitoring: Charge between 0°C and 45°C only

  • Never use fast chargers not designed for emergency lighting applications

Storage & Handling

  • Storage Temperature: -20°C to 35°C

  • Charge State: 40-50% capacity for long-term storage

  • Recharge Interval: Every 6 months during storage

  • Environment: Cool, dry, and well-ventilated area
