Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232
Specifications
Brand Name :
HKANON
Model Number :
HN-LFP
Certification :
CE, UL, RoHS, MSDS, UN38.3
Place of Origin :
Shenzhen, China
MOQ :
1Pc
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5,000Pcs/Month
Delivery Time :
10 Days
Packaging Details :
1PC/1 Wooden Box
Product name :
Lithium Battery Traction Forklift Battery 12V 24V 36V 48V 72V 80V with CAN/RS485/RS232
Cell inside :
Series and Parallel Connected-3.2V 86Ah
Chemistry :
LiFePO4
Application :
Electric forklift, AGV, UTV, Electric Stacker Cars, Electric Pallet Trucks, Road Vehicles
Ingress protection :
IP65
BMS :
Included
Description

Lithium Battery Traction Forklift Battery 12V 24V 36V 48V 72V 80V with CAN/RS485/RS232

Key Features

  • Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
  • Long life-cycle, can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
  • Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
  • Good performance at high temperature and high temperature resistance
  • Low self-discharge rate, less than 3% monthly.
  • No memory effects and highly efficient charge.
  • Environment friendly: Clean and Green energy poses no pollution on our environment.

SPECIFICATIONS

Material LFP Battery (LiFePO4)
Nominal Voltage 51.2V
Nominal Capacity 344Ah
Cell Assembly Prismatic 3.2V 86Ah
16 series with 4 parallel
Built-in (16S 150A BMS) Over-charging & charging protection.
Temperature control function.
Short circuit protection.
Balances the cells and ensures long cell life.
Charging Charging Model CC / CV
Charging Current 0.5C @344Ah
BMS Charging Cut-off Voltage 58.4V
Cell Overcharge Protection Voltage 3.65V / Cell
Discharge Continuous Discharge Current 1C @ 344Ah
Peak Discharge Current 2C @ 344Ah 10 seconds
BMS Discharge Cut-off Voltage 41.6V +/-1V
Cell Over-discharge Protection Voltage 2.5V / Cell
Working Temperature Charging Temperature Range 0~45°C
Discharge Temperature Range _20~60°C
Cycle Life More than 2500 times (100% DOD)
Our certifications ISO9001, UL 1642, CE, RoHS
Communication CAN/RS485/RS232 (Optional) 　
Dimension 1000*700*460 mm
Additional weight/ Battery Weight 170KG/580 Kg
Application Forklift, Electric Car
Warranty 15 Months
Part Included 1× 51.2V 344Ah Lithium Ion Battery
1× 51.2V 70A Charger

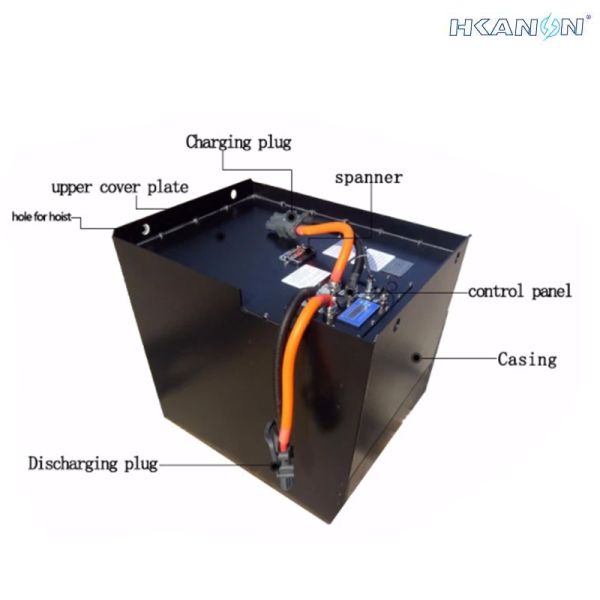

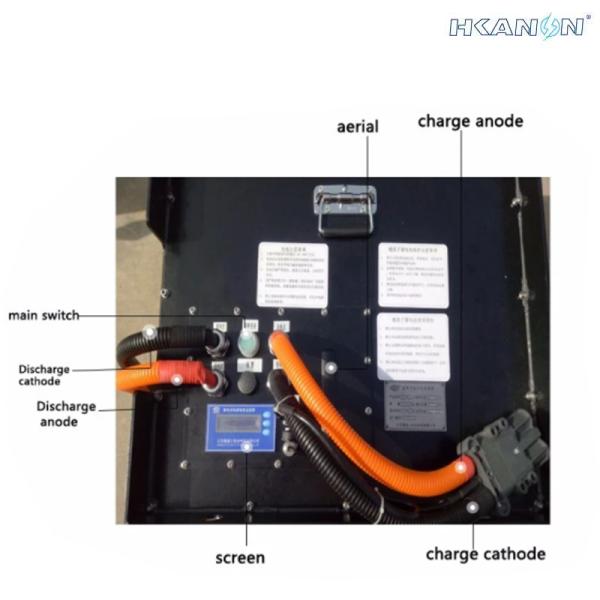

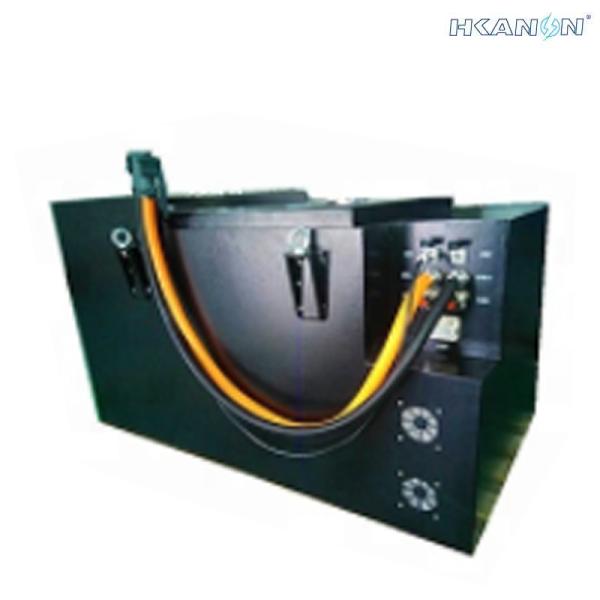

INTERIOR AND EXTERIOR GALLERY

Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232

Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232

Lithium Electric Forklift Battery High Temperature Resistance With CAN/RS485/RS232

OTHER RELATED PRODUCT

We are a professional battery manufacturer focused on developing and manufacturing high quality lithium iron phosphate (LiFePO4) battery. We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS. Like12V 100AH High power LiFePO4 Battery Module , Long lifecycle 12V modularized lifepo4 battery for Direct replacement on SLA battery. 12v lifepo4 battery with LED indicator, li-ion battery pack 12v 100ah, 2000cycles lifepo4 48v 100ah battery pack with built-in BMS, lifepo4 battery pack 24v 100ah and 36v 100ah li-ion battery.

Battery type Power(kwh) Size(mm) Weight(kg) Voltage Capacity
12V 270Ah 3.46 430*380*200 36 12.8 270
12V 350Ah 4.48 530*380*200 45 12.8 350
12V 450Ah 5.76 630*380*200 52 12.8 450
12V 280Ah 3.58 380*380*290 36 12.8 280
12V 380Ah 4.86 380*380*290 44 12.8 380
12V 480Ah 6.14 480*380*290 52 12.8 480
12V 550Ah 7.04 480*380*290 61 12.8 550
12V 650Ah 8.32 580*380*290 69 12.8 650
12V 750Ah 9.6 630*380*290 78 12.8 750
12V 850Ah 10.88 730*380*290 86 12.8 850
12A 950Ah 12.16 730*380*290 94 12.8 950
24V 190Ah 4.86 380*380*290 44 25.6 190
24V 280Ah 7.17 480*380*290 61 25.6 280
24V 380Ah 9.73 630*380*290 78 25.6 380
24V 470Ah 12.03 730*380*290 94 25.6 470
48V 95Ah 4.86 380*380*290 44 51.2 95
48V 185Ah 9.47 630*380*290 78 51.2 185
60V 95Ah 6.08 480*380*290 52 64 95
60V 185Ah 11.84 730*380*290 94 64 185
72V 95Ah 7.3 480*380*290 61 76.8 95
