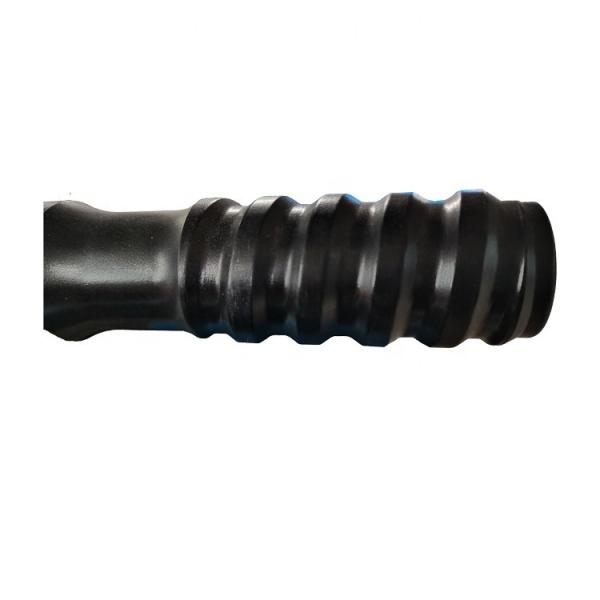

3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70
Specifications
Place of Origin :
China
Brand Name :
Litian Heavy Industry
Certification :
ISO9001:2015
MOQ :
Negotiable
Price :
Negotiable
Material :
Structural Alloy Steel
Processing Type :
Forging
Use :
Ore Mining
Usage :
Bench Drilling, Production Drilling
Application :
Tunnelling,Mining,Quarrying,Blasting and Infrastructure Construction
Thread :
T45
Length :
3660mm
Rod Type :
MF round rod, Speed rod
Diameter :
46mm ( 1 3/4" )
Model Type :
MF-T45-D46-3660
Packaging Details :
Packed in bundle
Delivery Time :
3-30 days
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Description

3660mm T45 Thread MF Speed Drilling Rod For Hydraulic Drill Rigs Mining 7325-7737-70

Quick Details


MF rod, Round 46, T45-T45

Thread: T45 (1 3/4")
Length: 3660mm (12')
Diameter: 46mm (1 3/4" )
Weight: ~41kg
Model No: MF-T45-D46-3660
Application: Bench Drilling, Production drilling

Similar product part number:
7325-7737-70
90515313

3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70

3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70 3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70

3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70 3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70

Intorduction

The threaded drill rods in rock drilling tools include extension rods and MF drill rods. The characteristic of this kind of drill rod is that the shank adapter, rod, coupling sleeve and bit are connected into a rock drill string group through the threads on the rod body. The basic requirements of the drill string for the connecting thread are: tight connection, good energy transmission effect, strong wear resistance and convenient disassembly. At present, there are two commonly used thread forms: rope thread (R32,R35,R38...) or trapezoidal thread (T38,T45,T51...).

Product Advantages

3660mm T45 Thread MF Rod For Hydraulic Drill Rigs Mining 7325-7737-70

Production flow :

1. Raw material preparing

2. Upsetting extrusion

3.Friction welding

4. Roughing

5. Threading

6. Heat treatment

7.Straightening

8. Shot peening

9. Quality Inspection

10. Painting

11.Packing

Drill Rod Specification

Product Top Hammer Rock Drilling Tool - Drill Rod
Material Structural Alloy Steel (23CrNi3Mo, Optional high quality imported material)
Application Tunnelling , Mining , Quarrying, Blasting and Infrastructure Construction
Facedrilling and Bolting, Bench Drilling, Production drilling, Long hole drilling, Drifting
Thread Type H22, R25, R28, R32, R35, R38, T38, T45, T51, GT60, ST58, ST68
Rod Type

MF rod,MF Drifter rod, Extension rod,Drifter rod,Guide tube, Tapered drill rod,

Integral drill steel, Plug hole integral rod
Body Type Hexagonal type,Round type
Length 260mm~6400mm
Custom Design Thread, Diameter, Length, can be customized

About Us


Litian Heavy Industry Machinery Co., Ltd was founded in 2010, located in Huludao City, Liaoning Province, now has two production bases of 18000 square meters, and it is a high-tech enterprise integrating R & D, production, sales, service of rock drilling tools and TBM cutting tools. Litian focuses on the production of rock-breaking tools and drilling tools suitable for rock excavation and mining. We work closely with users to design the most suitable products and solutions according to each user's construction conditions, equipment and excavation methods, to help users improve work efficiency and reduce costs. After years of accumulation and development, Litian products have been trusted by innumerable customers.
