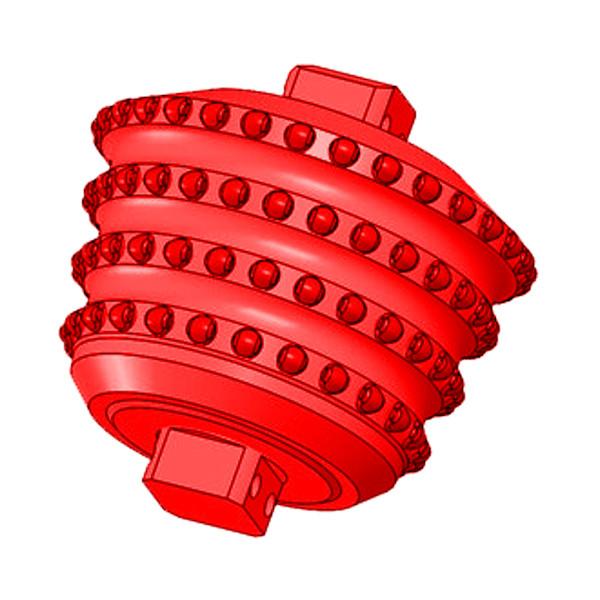

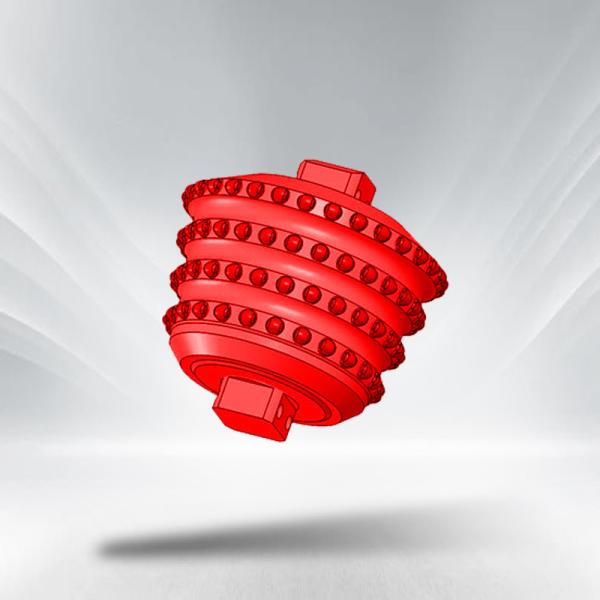

Wedge Shaped Carbide Raise Boring Drilling Tools
Wedge Shaped Carbide Raise Boring Drilling Tools
Wedge Shaped Carbide Raise Boring Drilling Tools
Wedge Shaped Carbide Raise Boring Drilling Tools
Wedge Shaped Carbide Raise Boring Drilling Tools
Wedge Shaped Carbide Raise Boring Drilling Tools
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
LT340420-00
MOQ :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Packaging Details :
Plywooden cases
Place of Origin :
China
Certification :
ISO9001:2015
Price :
Negotiable
Delivery Time :
3-30 days
Type :
Drill Bit
Maximum withstand bit pressure: :
245KN
Maximum linear velocity: :
90m/min
Platts hardness :
11≤f≤15
Use :
Ore Mining,Quarry
Color :
red blue green or as you demand
Description
Roller Cutter - Groove distributed button type LT340420-00
　Wedge Shaped Carbide Raise Boring Drilling Tools

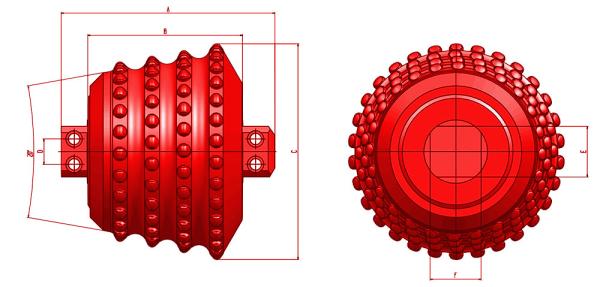

NO. Model A B C D E F Button rows Taper
1 LT340420-00 335 239.5 340 40 80 80 4 20°
2 LT340520-00B 335 239.5 340 40 82 82 5 20°
　Wedge Shaped Carbide Raise Boring Drilling Tools
Application Parameters
1. Applicable rock hardness: Platts hardness 11≤f≤15
2. Recommended single roller cutter bit pressure: 100KN~200KN
3. Maximum withstand bit pressure: 245KN
4. Recommended cutter rotation speed:3-15 RPM
5. Maximum linear velocity:90m/min
Product Features
1. Adopt wedge-shaped carbide with unique button shape(φ22)
2. The bearing structure is a pair of tapered roller bearings.
3. High quality metal sealed.
4. Repairable and tailor-made
