Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Furukawa Rock Drill Shank Adapter
Specifications
Brand Name :
Litian Heavy Industry
Model Number :
Top Hammer Shank Adapter
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, L/C, Western Union, MoneyGram
Supply Ability :
According to order quantity
Delivery Time :
3-30 days
Packaging Details :
Plywooden cases
Material :
Structural Alloy Steel
Rock Drill Brand :
Furukawa
Thread Type :
R32, R35, R38, T38, T45, T51，R25, R28
Usage :
Facedrilling And Bolting, Bench Drilling...
Application :
Mining , Quarrying, Blasting, Tunnelling
Custom Design :
Thread, Diameter, Length Can Be Customized
Description

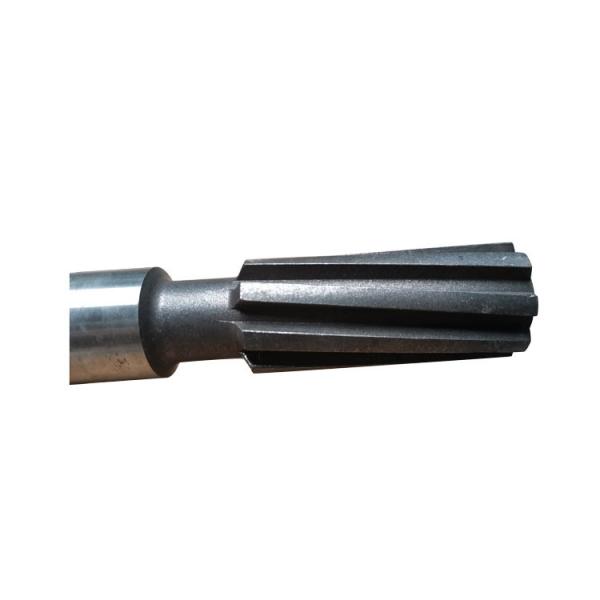

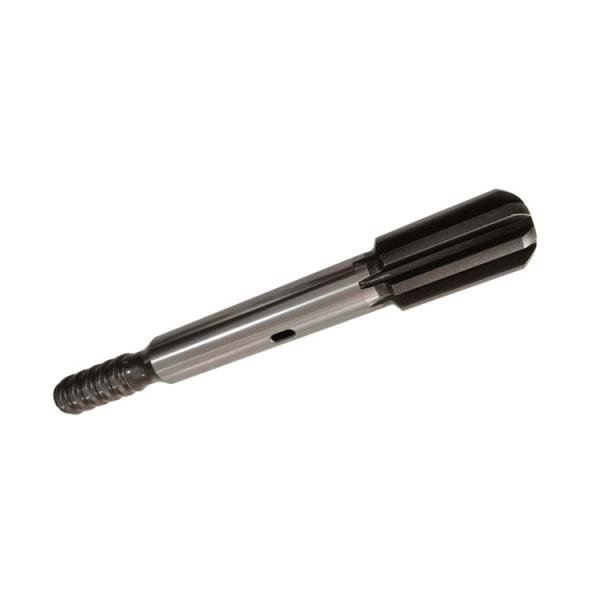

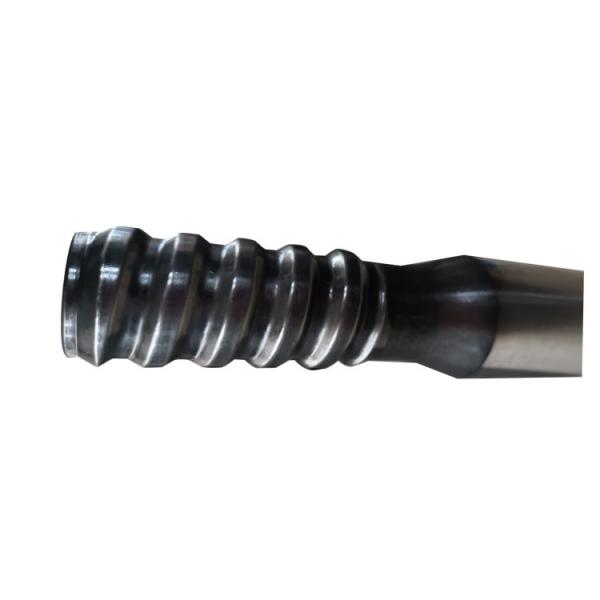

Shank Adapter For Furukawa Rock Drill

Shank adapter is mainly used in mining operations, its role is to directly withstand the impact energy and torque of the rock drill. The specifications and hardness of the shank adapter have a great influence on the rock drilling speed and the life of the rock drilling machine. The hardness of shank adapter should be appropriate, the service life is short if it is too soft, and the piston is easy to be injured if it is too hard. Our shank adapter specifications are accurate, the end face is flat and smooth, the hardness is appropriate, the cross section is perpendicular to the axis, and closely matches the drill sleeve of the rock drill. We select high-strength alloy structural steel with good quality and use surface-reinforced thermal processing technology to ensure that the impacted end is not deformed and has good working performance.

We can produce and supply the shank adapters suitable for various models of Furukawa rock drills, and we also can design shank adapter of various specifications according to the needs of customers.

Product Parameters

FURUKAWA Rock Drill Thread Length Diameter Weight Flushing pipe
(mm)		 Spline QTY Model No.
Structure Diagram mm inch mm inch
Furukawa Rock Drill Shank Adapter

M120

PD200

 T38 380 14.96 44 1 3/4" 3.6 _ 4 T38*4D44-380
T38 446 17.56 44 1 3/4" 4.0 _ 4 T38*4D44-446
Furukawa Rock Drill Shank Adapter HD609 T38 690 27.17 45 1 3/4" 6.3 _ 8 T38*8D45-690
T45 620 24.41 45 1 3/4" 6.4 _ 8 T45*8D45-620
Furukawa Rock Drill Shank Adapter HD90 R38 515 20.28 40 1 12/25" 4.3 _ 6 R38*6D40-515
